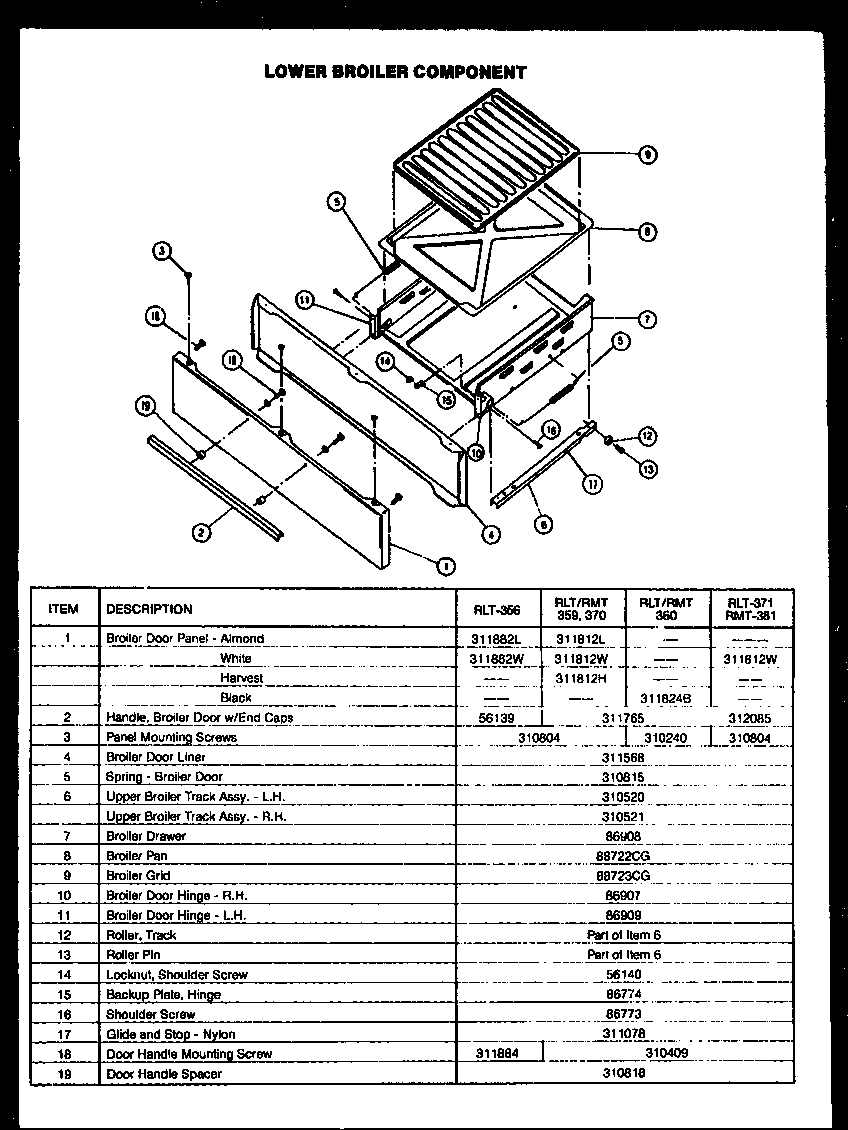

RMT-381 02 – LOWER BROILER COMPONENT
Written by
in
RMT-381 02 – LOWER BROILER COMPONENT
Products
Position
Product
NI
MAY Y0310521
1
MAY 311812W
2
MAY Y0312085
3
MAY Y0310804
4
MAY Y0311568
5
MAY Y0310815
6
MAY Y0310520
7
MAY Y0086908
8
MAY 88722CG
9
MAY 88723CG
10
MAY 0086907
11
MAY Y0086909
13
SEE NOTE GROUND WIRE, GREEN
14
MAY 0056140
15
MAY Y0086774
16
MAY Y0086773
17
MAY Y0311078
18
MAY Y0310409
19
MAY Y0310818
←
