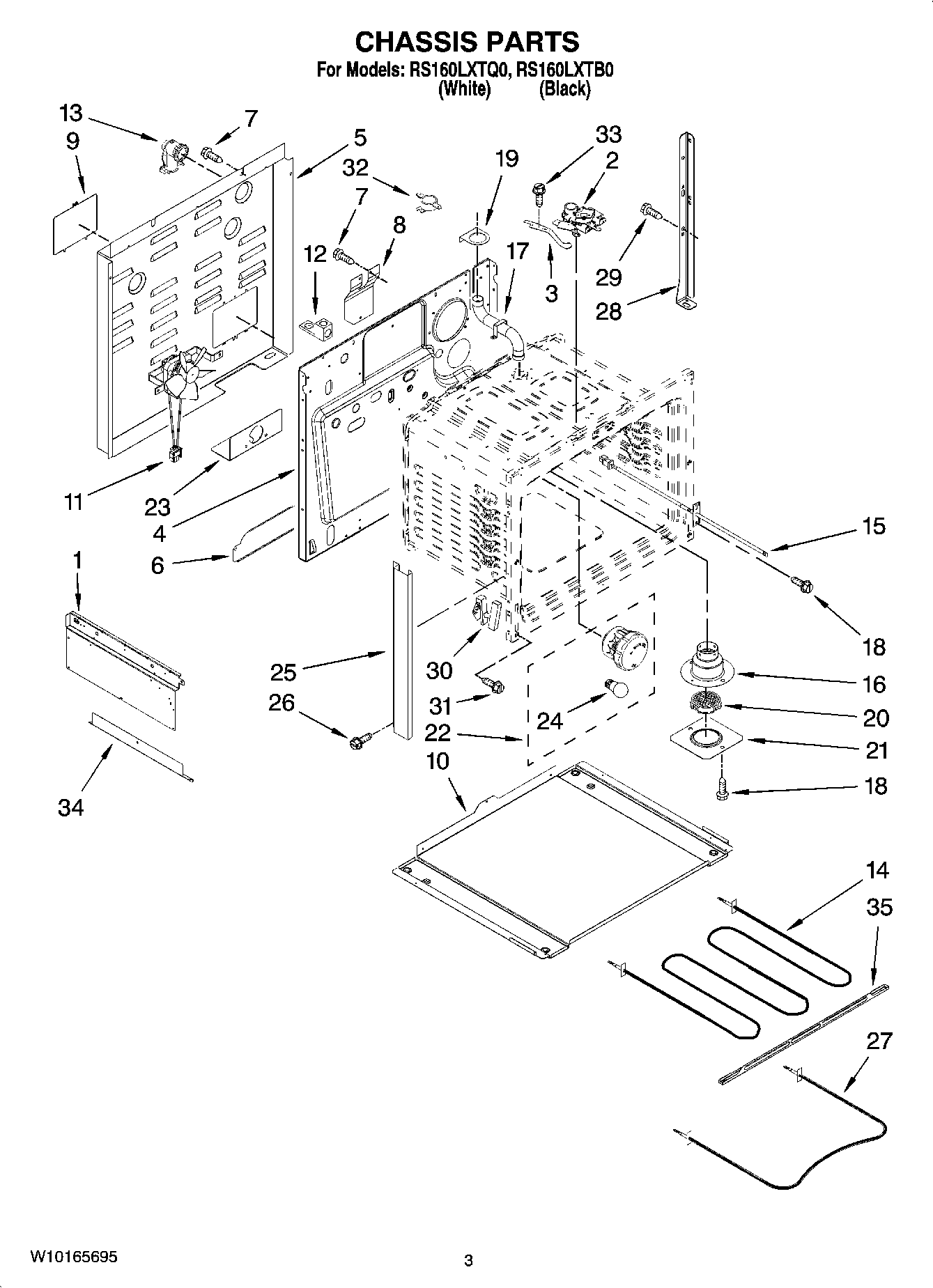

RS160LXTB0 03 – CHASSIS PARTS

RS160LXTB0 03 – CHASSIS PARTS

Written by

in

RS160LXTB0 03 – CHASSIS PARTS

Products

PositionProduct
12618F206-51 Whirlpool Panel
1Panel, Shield (Left)
2Latch Assembly
3Lever, Latch
3Lever, Latch (Gray)
4Main Back
54005F810-51 Whirlpool Access Cover
6Extension, Back
7WP90767 Whirlpool Screw
8Insulator, Cord
9Panel, Access
104003F067-51 Whirlpool Main Base
11WPW10586440 Whirlpool Blower Fan
12WPW10281322 Whirlpool Connector
13Connector, Cable
14WP7406P218-60 Whirlpool Broil Element
1512001656 Whirlpool Range Oven Temperature Sensor
16Tube, Vent Lower
17Tube, Vent Upper
19Holder, Vent Tube
20Smoke Eliminator
21Plate, Smoke Elm.
22WP7407P182-60 Whirlpool Lamp
23W10190166 Whirlpool Service Bracket
24BULB, LIGHT
25Trim, Side (Right Black)
25Trim, Side (Left Black)
25Trim, Side (Left White)
25Trim, Side (Right White)
26WP74003976 Whirlpool Screw
27WPW10310274 Whirlpool Bake Element
28Support, Oven Rear
29WP7101P434-60 Whirlpool Screw
30Hinge (2)
31Screw, Hinge (4)
32WP7450P034-60 Whirlpool Limit Switch
3374003975 Whirlpool Screw P1 (8ABX3/8-BLK)
34Extention, Shield
35Support, Element
35Insulation, Wrap
35Insulation, Oven Bottom
35Insulation, Back
35Insulation
