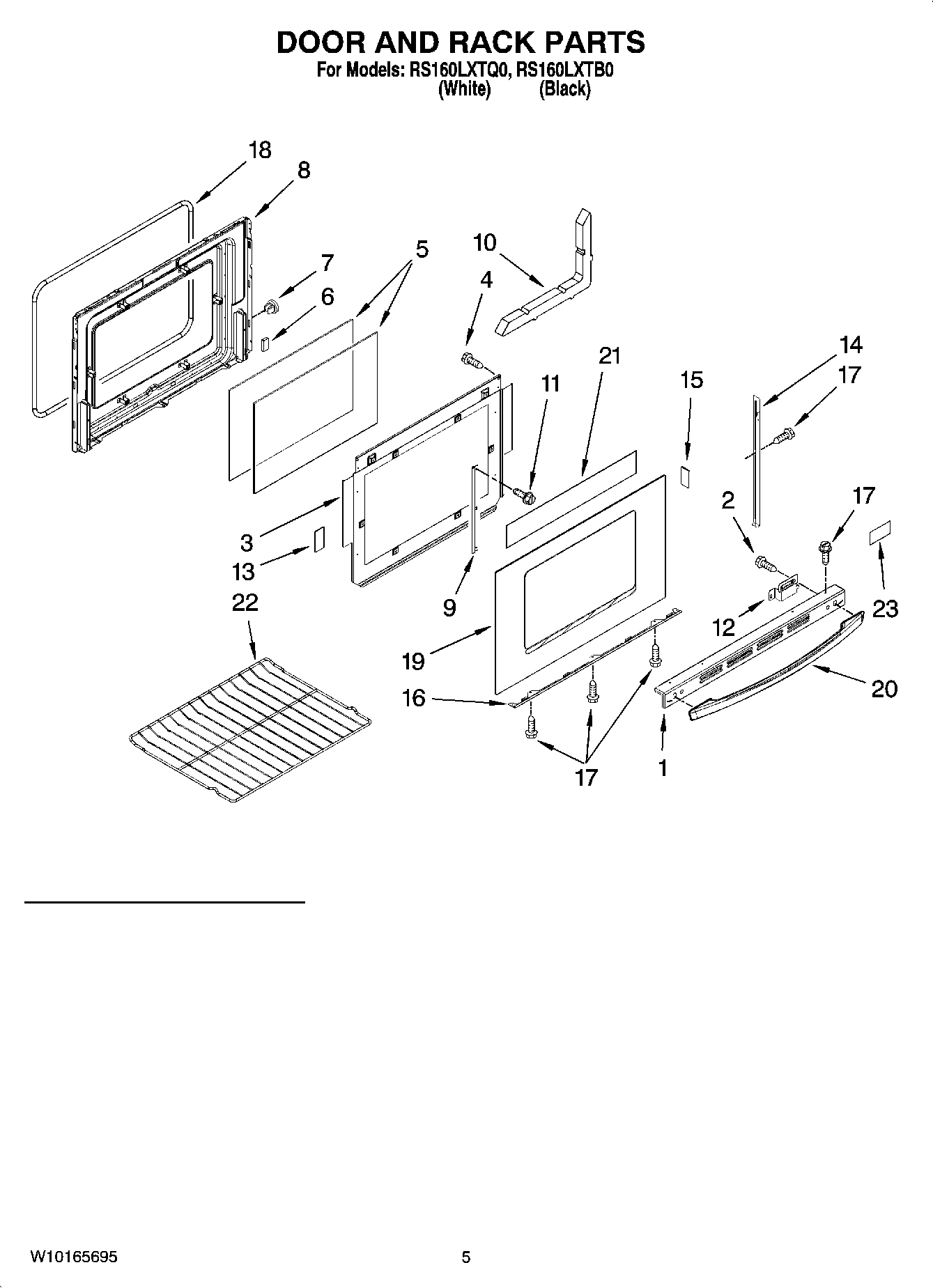

RS160LXTB0 04 – DOOR AND RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)

RS160LXTB0 04 – DOOR AND RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

RS160LXTB0 04 – DOOR AND RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	WPL ARI123687A
	WIRING HARNESS PARTS, SCREW, GROUND
	Grease
	8212471 Whirlpool Oven Paint
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	8019P013-60 Whirlpool Clip
	WPL ARI123688A
	5700P822-60 Whirlpool Wire Harness
	WPL ARI123686A
	WPL ARI123685A
	WPL ARI123684A
	WPL ARI123683A
	WPL W10166773
	WIRING HARNESS PARTS (Harness, Wire (Coil LT))
	5171P556-60 Whirlpool Wire Harness
	Harness, Sensor
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	4392901 Whirlpool Biscuit Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	350942 Whirlpool Spray Paint
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	WPL 799832
	511873 Whirlpool Refrigerator Paint
	285006 Whirlpool Spray
	Wire, 25` Roll (Red 14 Ga.)
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPW10208653 Whirlpool Insulation
	350930 Whirlpool White Spray Paint
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
1	Trim, Door Top (Black)
1	WP3608F141-71 Whirlpool Door Trim
2	WP74006515 Whirlpool Washer Screw
3	3601F373-51 Whirlpool Baffle
4	SCREW
5	74003645 Whirlpool Range Oven Door Inner Glass
6	WP74005546 Whirlpool RU Spacer
7	WP74001574 Whirlpool Snap Nut
8	Liner, Door
9	3801F886-51 Whirlpool Mounting Bracket
10	Insulation, Door
11	WP90767 Whirlpool Screw
12	3801F831-45 Whirlpool Bracket Assembly
12	3801F832-45 Whirlpool Bracket
13	Tape, White
14	WP3608F116-71 Whirlpool Door Trim
14	WP3608F117-71 Whirlpool Door Trim
14	WP3608F116-70 Whirlpool Door Trim
14	WP3608F117-70 Whirlpool Door Trim
15	Tape, Double Sided (White)
15	WP74009025 Whirlpool Double Sided Tape
16	WP3807F708-71 Whirlpool Support
16	Trim, Door Bottom (Black)
17	W10828565 Whirlpool Screw
17	WP98008544 Whirlpool Screw Assembly
18	Seal, Door
19	Glass, Door (Order Items 13 & 21 When Replacing Door Glass) (White)
19	Glass, Door (Order Items 13 & 21 When Replacing Door Glass) (Black)
20	Handle, Door (White)
20	Handle, Door (Black)
21	WPL 74003664
22	WPW10282492 Whirlpool Oven Rack
23	BADGE
