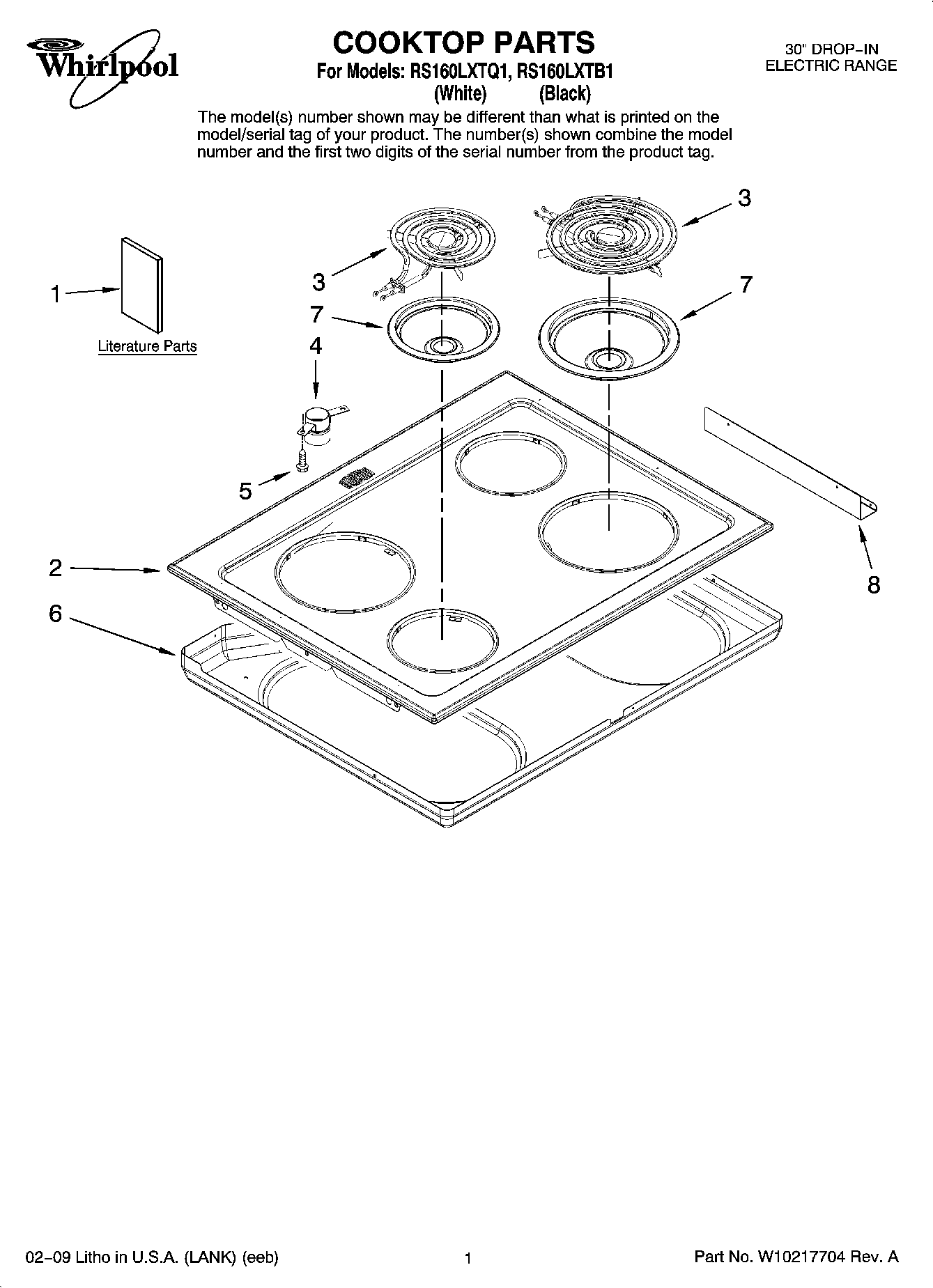

RS160LXTB1 01 – COOKTOP PARTS

Products

PositionProduct
1Wiring Diagram
1Installation Instructions
1SAFER COOKING TIPS (ENGLISH
1Use & Care Guide
2Cooktop (White)
2Cooktop (Black)
3WP9761346 Whirlpool Stove Surface Burner Element
3WPW10345407 Whirlpool Surface Element
4Tube, Vent Upper
5Screw (4)
6Bottom, Burner Box
7WPW10196406 Whirlpool 6" Chrome Drip Bowl
7DRIP BOWL 8" W/HOLE CHROME
83801F881-51 Whirlpool Bracket
