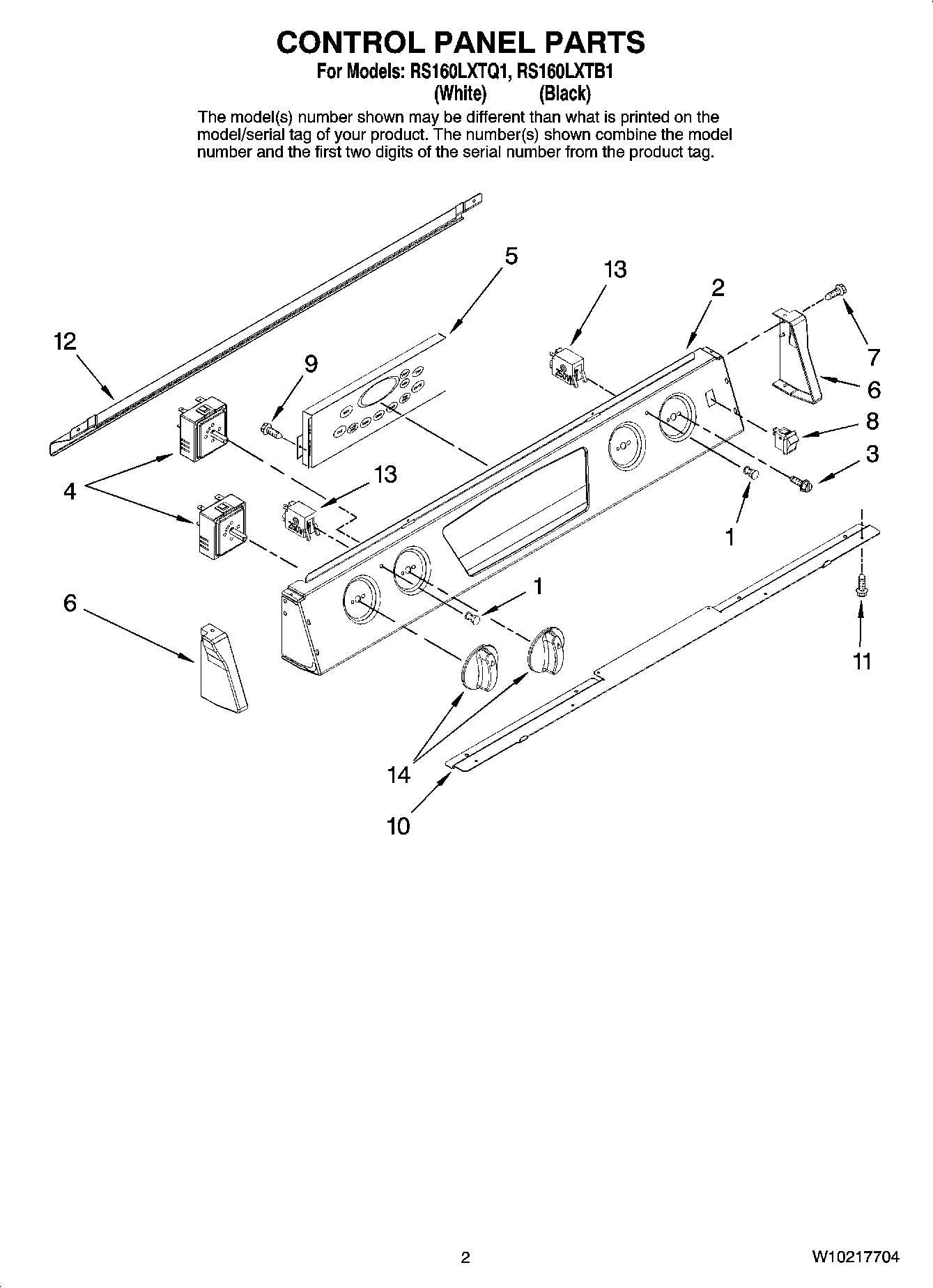

RS160LXTB1 02 – CONTROL PANEL PARTS
Written by
in
RS160LXTB1 02 – CONTROL PANEL PARTS
Products
Position
Product
1
Lens
2
Panel, Control (White)
2
Panel, Control (Black)
3
WPL 7101P30960
4
Switch, Infinite 6“ (LF, RR)
4
Switch, Infinite 8“ (RF/LR)(2)
5
W10769823 Whirlpool Oven Electronic Control Board + Core
6
End Cap (Right White)
6
End Cap (Left)
6
End Cap (Left White)
6
End Cap (Right)
7
WP98008544 Whirlpool Screw Assembly
7
WP98008545 Whirlpool Screw
8
Switch, Rocker
8
74008717 Whirlpool White Rocker Switch
9
WP59002061 Whirlpool Microwave Screw
10
Support, Control Panel
11
SCREW
12
Shield, Heat (Black)
13
WP74004153 Whirlpool Indicator Light
14
Knob (4) (Black)
14
WP74003611 Whirlpool Oven White Knob
←
