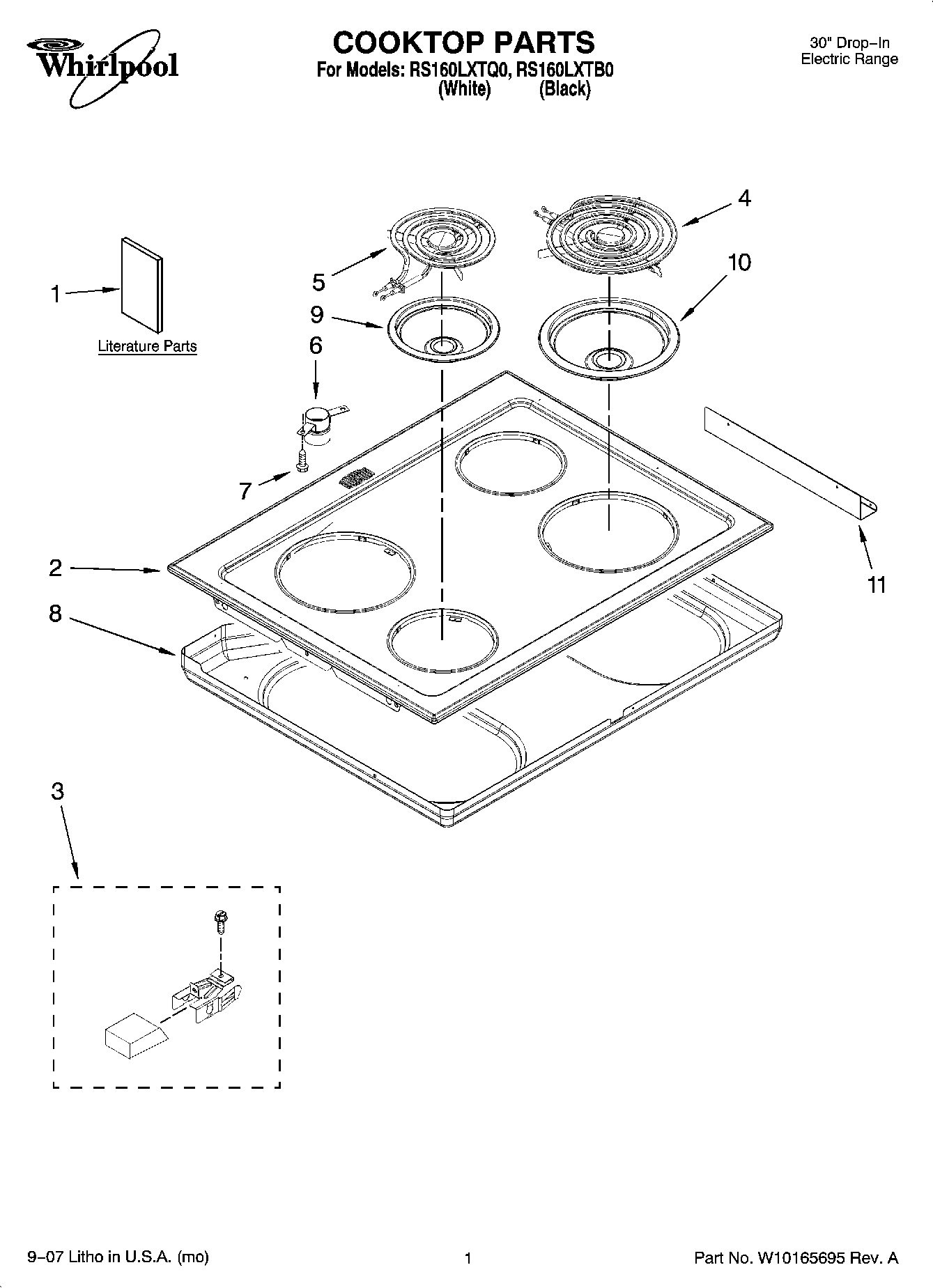

RS160LXTQ0 01 – COOKTOP PARTS

Products

PositionProduct
1Wiring Diagram
1Installation Instructions
1Use & Care Guide
1Wiring Diagram
22002M200-81 Whirlpool Cooktop
22002M200-09 Whirlpool Cooktop
312001676 Whirlpool Range Surface Burner Receptacle Kit
4WP9761346 Whirlpool Stove Surface Burner Element
5WPW10345407 Whirlpool Surface Element
6Tube, Vent Upper
7WP7101P498-60 Whirlpool Screw
8Bottom, Burner Box
9WPW10196406 Whirlpool 6" Chrome Drip Bowl
10DRIP BOWL 8" W/HOLE CHROME
113801F881-51 Whirlpool Bracket
