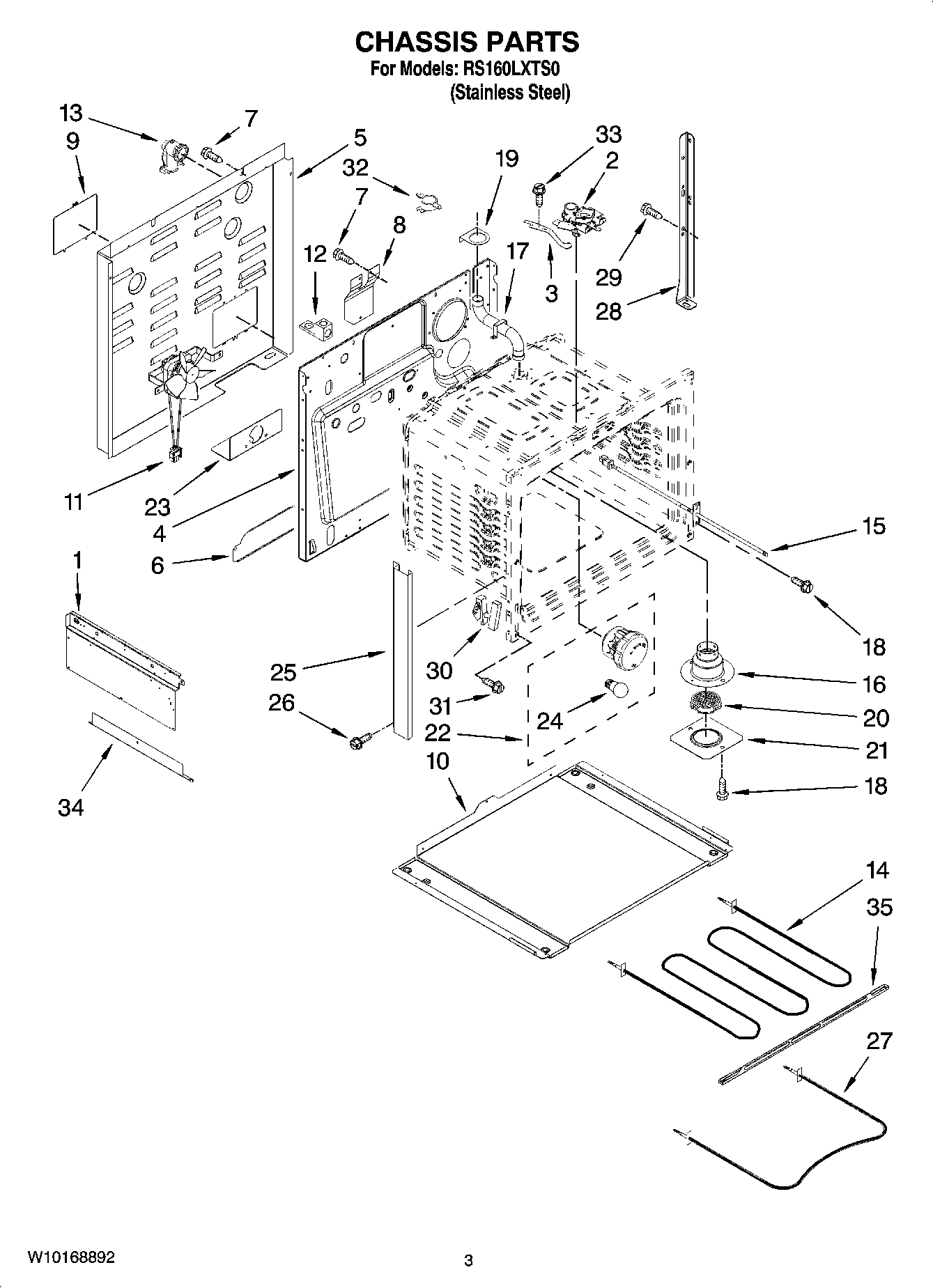

RS160LXTS0 03 – CHASSIS PARTS

RS160LXTS0 03 – CHASSIS PARTS

Written by

in

RS160LXTS0 03 – CHASSIS PARTS

Products

PositionProduct
12618F206-51 Whirlpool Panel
1Panel, Shield (Left)
2Latch Assembly
3Lever, Latch
4Main Back
54005F810-51 Whirlpool Access Cover
6Extension, Back
7WP90767 Whirlpool Screw
8Insulator, Cord
9Panel, Access
104003F067-51 Whirlpool Main Base
11WPW10586440 Whirlpool Blower Fan
12WPW10281322 Whirlpool Connector
13Connector, Cable
14WP7406P218-60 Whirlpool Broil Element
1512001656 Whirlpool Range Oven Temperature Sensor
16Tube, Vent Lower
17Tube, Vent Upper
19Holder, Vent Tube
20Smoke Eliminator
21Plate, Smoke Elm.
22WP7407P182-60 Whirlpool Lamp
23W10190166 Whirlpool Service Bracket
24BULB, LIGHT
25Trim, Side (Right Black)
25Trim, Side (Left Black)
26WP74003976 Whirlpool Screw
27WPW10310274 Whirlpool Bake Element
28Support, Oven Rear
29WP7101P434-60 Whirlpool Screw
30Hinge (2)
31Screw, Hinge (4)
32WP7450P034-60 Whirlpool Limit Switch
3374003975 Whirlpool Screw P1 (8ABX3/8-BLK)
34Extention, Shield
35Insulation, Back
35Insulation, Oven Bottom
35Insulation, Wrap
35Support, Element
35Insulation
