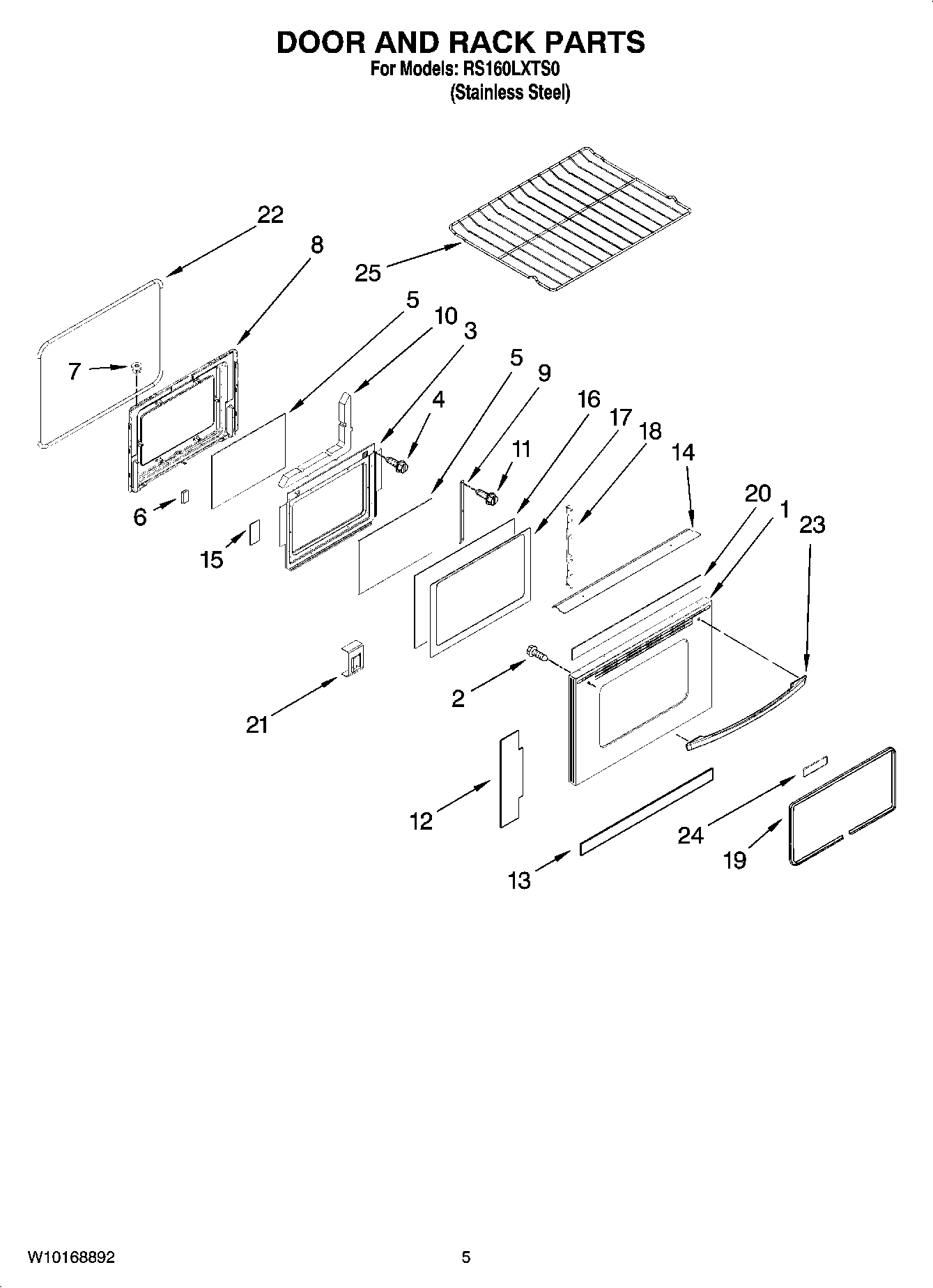

RS160LXTS0 04 – DOOR AND RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)

RS160LXTS0 04 – DOOR AND RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)

RS160LXTS0 04 – DOOR AND RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI123713A
WIRING HARNESS PARTS, SCREW, GROUND
WPL ARI123714A
Grease
8212471 Whirlpool Oven Paint
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
8019P013-60 Whirlpool Clip
5700P822-60 Whirlpool Wire Harness
WPL ARI123712A
WPL ARI123711A
WPL ARI123710A
WPL ARI123709A
WPL W10166773
WIRING HARNESS PARTS (Harness, Wire (Coil LT))
5171P556-60 Whirlpool Wire Harness
Harness, Sensor
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
WPL 799832
799344 Whirlpool Refrigerator Paint
WPW10208653 Whirlpool Insulation
72017 Whirlpool Appliance Touch-Up Paint White
511873 Whirlpool Refrigerator Paint
242831 Whirlpool Oven Wire
FOIL, ALUMINUM OVEN (18“ X 25 )
Wire, 25` Roll (Red 14 Ga.)
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
285006 Whirlpool Spray
350930 Whirlpool White Spray Paint
1Trim, Door Top (S.Steel)
2WP74006515 Whirlpool Washer Screw
33601F373-51 Whirlpool Baffle
4SCREW
574003645 Whirlpool Range Oven Door Inner Glass
6WP74005546 Whirlpool RU Spacer
7WP74001574 Whirlpool Snap Nut
8Liner, Door
93801F886-51 Whirlpool Mounting Bracket
10Insulation, Door
11WP90767 Whirlpool Screw
1274011048 Whirlpool Oven Insulation
13WP74010043 Whirlpool Insulation
14Shield, Door
15Tape, White
16Glass, Coated
17Glass, Inner Clear
18Retainer, Glass
19WP74009029 Whirlpool Door Gasket
20Tape, Protective
21Clip, Glass (2)
22Seal, Door
23Handle, Door (Black)
24BADGE
25WPW10282492 Whirlpool Oven Rack
