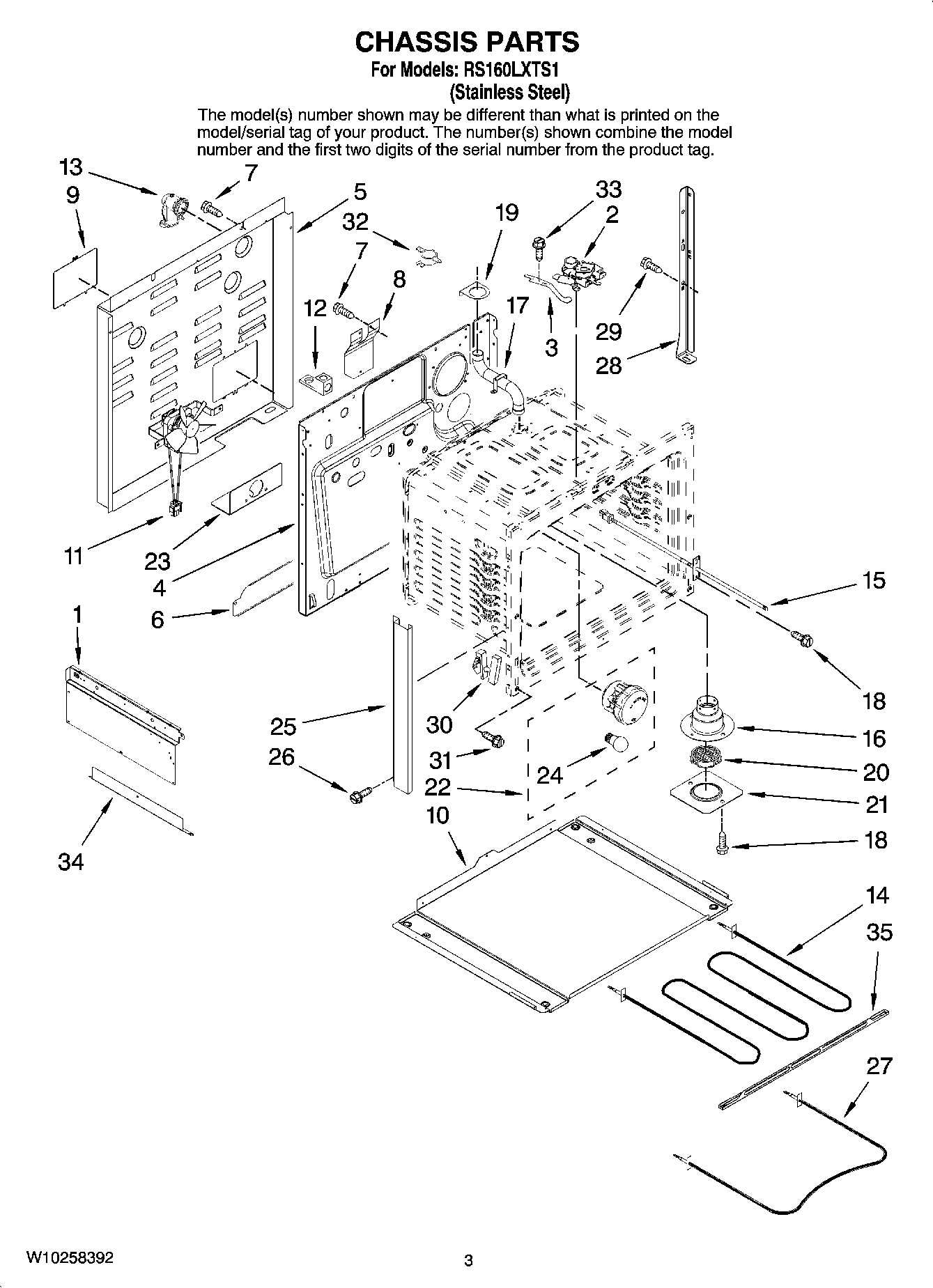

RS160LXTS1 03 – CHASSIS PARTS

Products

Position	Product
	Insulation
	Insulation, Back
	Insulation, Oven Bottom
	Insulation, Wrap
1	Panel, Shield (Left)
1	2618F206-51 Whirlpool Panel
2	Latch Assembly
3	Lever, Latch
4	Main Back
5	4005F810-51 Whirlpool Access Cover
6	Extension, Back
7	WP90767 Whirlpool Screw
8	Insulator, Cord
9	Panel, Access
10	4003F067-51 Whirlpool Main Base
11	WPW10586440 Whirlpool Blower Fan
12	WPW10281322 Whirlpool Connector
13	Connector, Cable
14	WP7406P218-60 Whirlpool Broil Element
15	12001656 Whirlpool Range Oven Temperature Sensor
16	Tube, Vent Lower
17	Tube, Vent Upper
19	Holder, Vent Tube
20	Smoke Eliminator
21	Plate, Smoke Elm.
22	WP7407P182-60 Whirlpool Lamp
23	W10190166 Whirlpool Service Bracket
24	BULB, LIGHT
25	Trim, Side (Left Black)
25	Trim, Side (Right Black)
26	WP74003976 Whirlpool Screw
27	WPW10310274 Whirlpool Bake Element
28	Support, Oven Rear
29	WP7101P434-60 Whirlpool Screw
30	74011142 Whirlpool Stove Range Oven Door Hinge and Spring
31	SCREW
32	WP7450P034-60 Whirlpool Limit Switch
33	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
34	Extention, Shield
35	Support, Element
