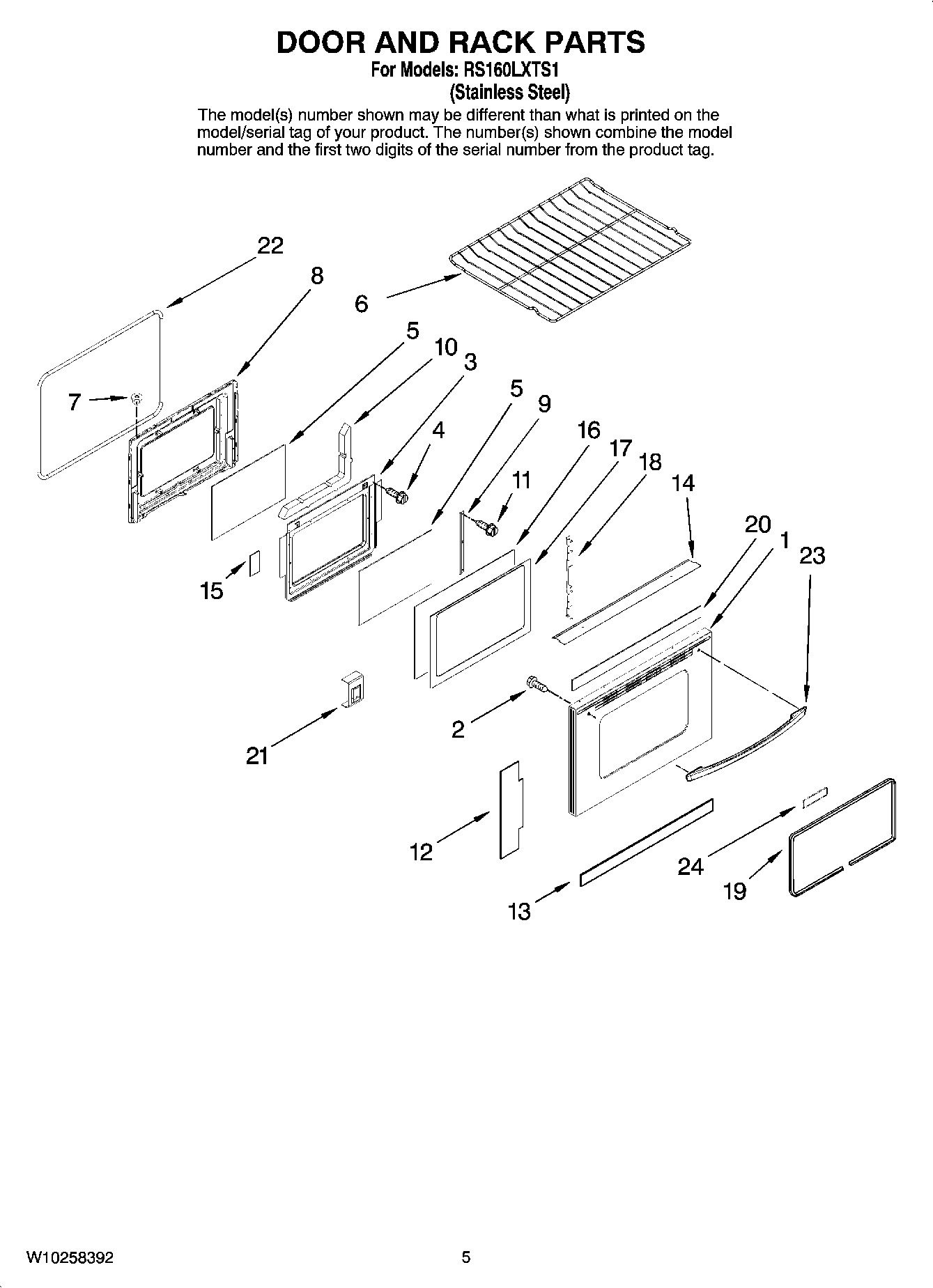

RS160LXTS1 04 – DOOR AND RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Grease
	WPL ARI123718A
	WPL ARI123717A
	WIRING HARNESS PARTS, SCREW, GROUND
	WPL ARI123716A
	8019P013-60 Whirlpool Clip
	WPL 74010892
	WPL W10166773
	WPL ARI123720A
	WIRING HARNESS PARTS (Harness, Wire (Coil LT))
	5700P822-60 Whirlpool Wire Harness
	Harness, Sensor
	8212471 Whirlpool Oven Paint
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	285006 Whirlpool Spray
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WPL ARI123719A
	350942 Whirlpool Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	511873 Whirlpool Refrigerator Paint
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPW10208653 Whirlpool Insulation
	WPL 799832
	5171P556-60 Whirlpool Wire Harness
1	Trim, Door Top (S.Steel)
2	WP74006515 Whirlpool Washer Screw
3	3601F373-51 Whirlpool Baffle
4	SCREW
5	74003645 Whirlpool Range Oven Door Inner Glass
6	Rack, Oven (2)
7	WP74001574 Whirlpool Snap Nut
8	Liner, Door
9	3801F886-51 Whirlpool Mounting Bracket
10	Insulation, Door
11	WP90767 Whirlpool Screw
12	74011048 Whirlpool Oven Insulation
13	WP74010043 Whirlpool Insulation
14	Shield, Door
15	Tape, White
16	Glass, Coated
17	Glass, Inner Clear
18	Retainer, Glass
19	WP74009029 Whirlpool Door Gasket
20	Tape, Protective
21	Clip, Glass (2)
22	Seal, Door
23	Handle, Door (Black)
24	BADGE
