RS192GCF3 07 – COOLING SYSTEM

RS192GCF3 07 – COOLING SYSTEM

Written by

in

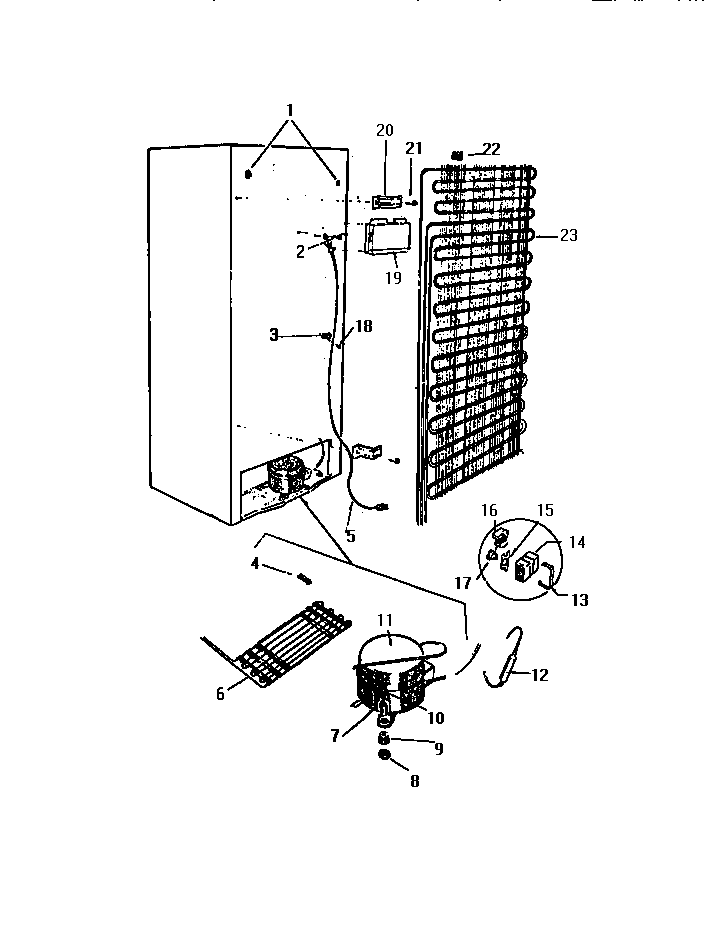

RS192GCF3 07 – COOLING SYSTEM

Products

PositionProduct
1WCI G174733
1AWCI G174734
25308000039 Frigidaire Refrigerator Screw
35303001199 Frigidaire Refrigerator Wiring Harness Clamp
4WCI G171111
5CORD, SERVICE
6DEFROST PLATE (NON-ILLUSTRATED)
7SLEEVE COMP MTG (3)
8WCI G117675
9218513300 Frigidaire Refrigerator Compressor Mount Grommet
10WCI G154589
11COMPRESSOR W/OVLD-RELAY
12WCI R900125
12ADRIER-REGULAR
135303006412 Frigidaire Refrigerator Cover Mounting Strap
14COVER
15RETAINER
16WCI G150618-06
17WCI G176103
18WCI G160758
19WCI G164950
20WCI G160566-01
21WCI G16078
22SUPT. COND. MTG.
23WCI G163356
