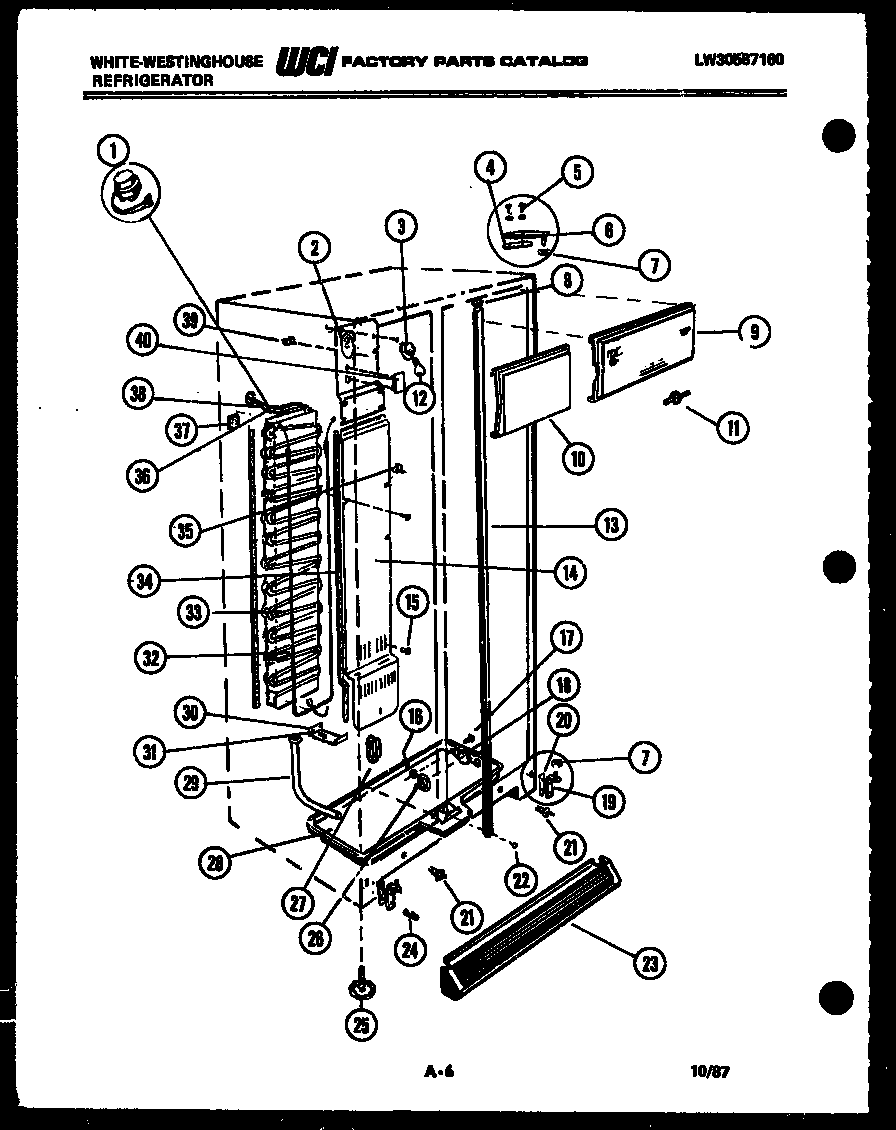

RS192GCF4 04 – CABINET PARTS

Products

Position	Product
1	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
2	WCI G169481-01
3	218906802 Frigidaire Light Lamp Socket
4	WCI G183861
5	WCI G185566
6A	WCI G183716
6	HINGE-TOP RS
7	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
8	TRIM-MULLN-COFE
9	WCI G164419-28
10	WCI G164452-22
11	WCI G165177
12	316538904 Frigidaire Oven Lamp Light
13	MULLION-COFE
14	COIL COVER-LOWER
15	BUTTON, PLUG, LINER (2)
16	WCI G163952
18	WCI G164912-03
19	BRACKET-LOWER HINGE
19A	SCREW – 1/4 X 1 (2)
20A	WCI G141673
20	SHIM, HINGE
20B	WCI G142361
21	5303289051 Frigidaire Refrigerator Light Switch
22	WCI G167125
23	WCI G163080-03
24	WCI G162994
25	LEG-LEVELING (2)
26	WCI G174733
26A	WCI G174734
27B	WCI G167582
27	WCI G166800
27A	WCI G166801
28	PAN, DEFROST
29	241957901 Frigidaire Refrigerator Tube-Drain
30	WCI G158022
31	5304455650 Frigidaire Refrigerator Screw
32	WCI G157191
33	WCI G189612
34	WCI G165233
35	WCI G162703
36	TUBE, INSULATION (2)
37	WCI G169493
38	EXCHANGER-HEAT
39	WCI G163669
40	WCI G165416-02
