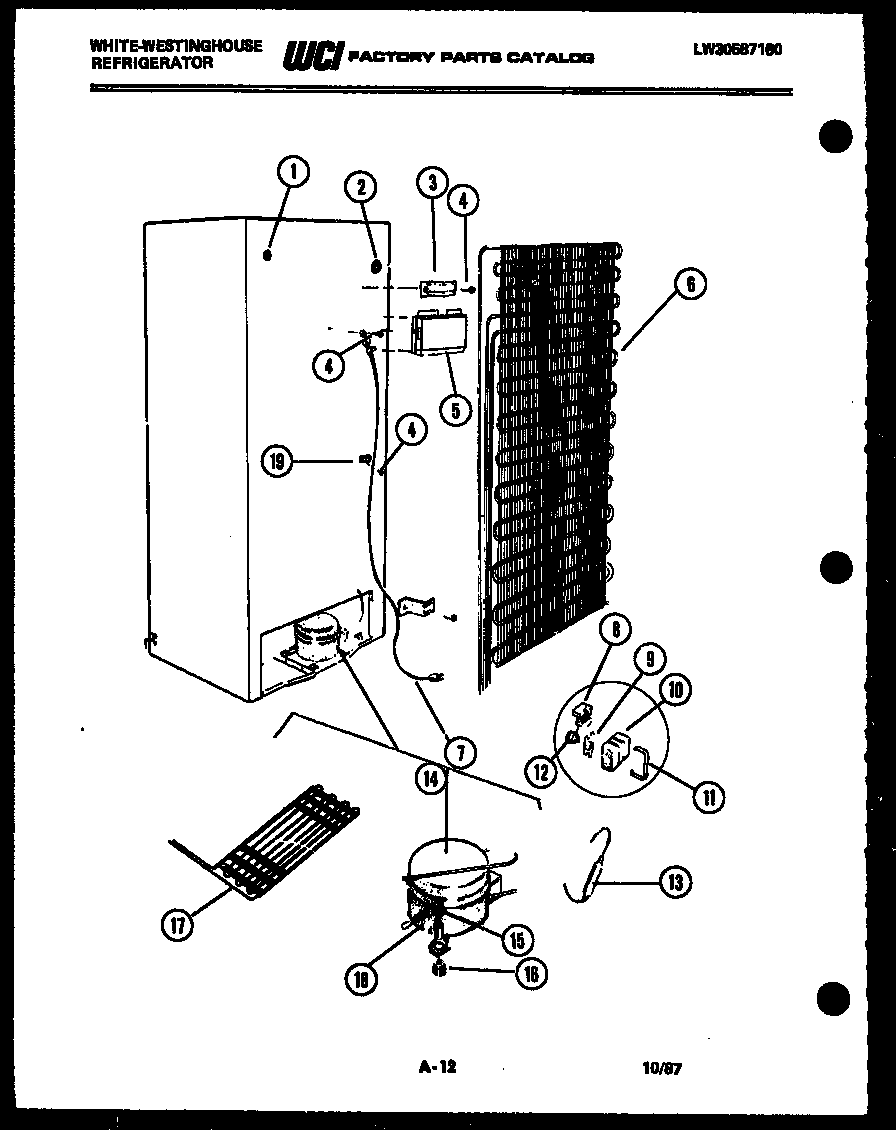

RS192GCF4 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

RS192GCF4 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

RS192GCF4 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
1WCI G174734
2WCI G174733
3BRACKET-CONDENSER MOUNTING (4)
45308000039 Frigidaire Refrigerator Screw
5WCI G183584
6WCI G188725
7CORD, SERVICE
8WCI G182225-04
9RETAINER, OVERLOAD
115303006412 Frigidaire Refrigerator Cover Mounting Strap
12WCI G188727
135303305677 Frigidaire Replacement Filter Dryer Filters
14COMPRESSOR
15SCREW – 1/4-20 (3) COMP. MTG.
16218513300 Frigidaire Refrigerator Compressor Mount Grommet
17WCI G188724
18SLEEVE COMP MTG (3)
195303001199 Frigidaire Refrigerator Wiring Harness Clamp
