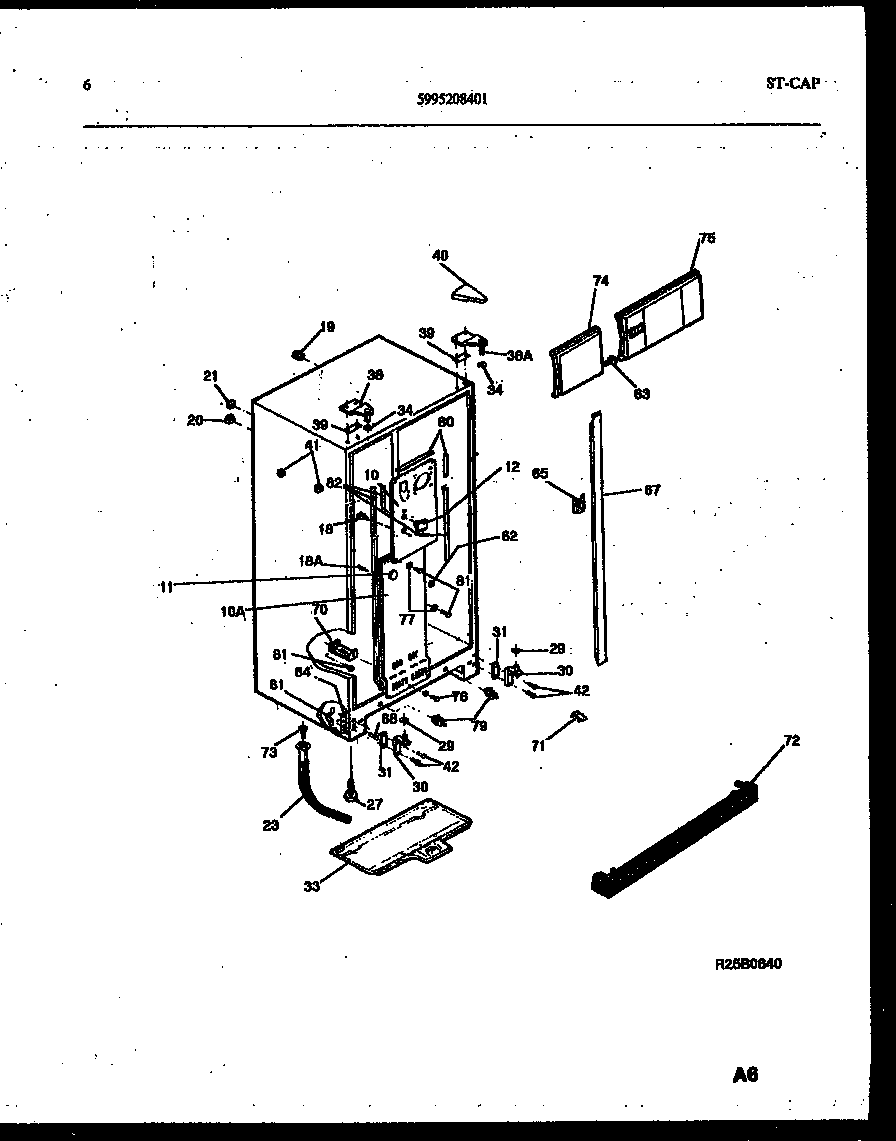

RS192MCD1 04 – CABINET PARTS

RS192MCD1 04 – CABINET PARTS

Written by

in

RS192MCD1 04 – CABINET PARTS

Products

PositionProduct
*51492WCI 5300169100
10ACOVER-COIL LOWER
10WCI 5303006543
10ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
115303208309 Frigidaire Refrigerator Plug Hole
12PLUG-DECORATIVE, ICE MAKER HOLE
18SUPPORT-COIL COVER
18AWCI 5303001250
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
23WCI 5303209723
23ACLAMP-TUBE
27LEVELING SCREW (2)
29WASHER, .28 X .62 X .19, NYLON
30HINGE-BOTTOM
31SHIM-BTM HINGE (3)
33AWCI 08000099
33WCI 5308000086
34WCI 5308000186
38AWCI 5308012934
38WCI 5303001062
38B241710601 Frigidaire Refrigerator Screw
38CTAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
39SHIM – UPPER HINGE
40COVER-UPPER HINGE, ALMOND
415304509705 Frigidaire Refrigerator Grommet
42SCREW-HINGE MTG (2) (NON-ILLUSTRATED)
61WCI 5300077210
62WCI 5303001231
63WCI 5303001213
64WCI 5303001273
65WCI 5303001281
