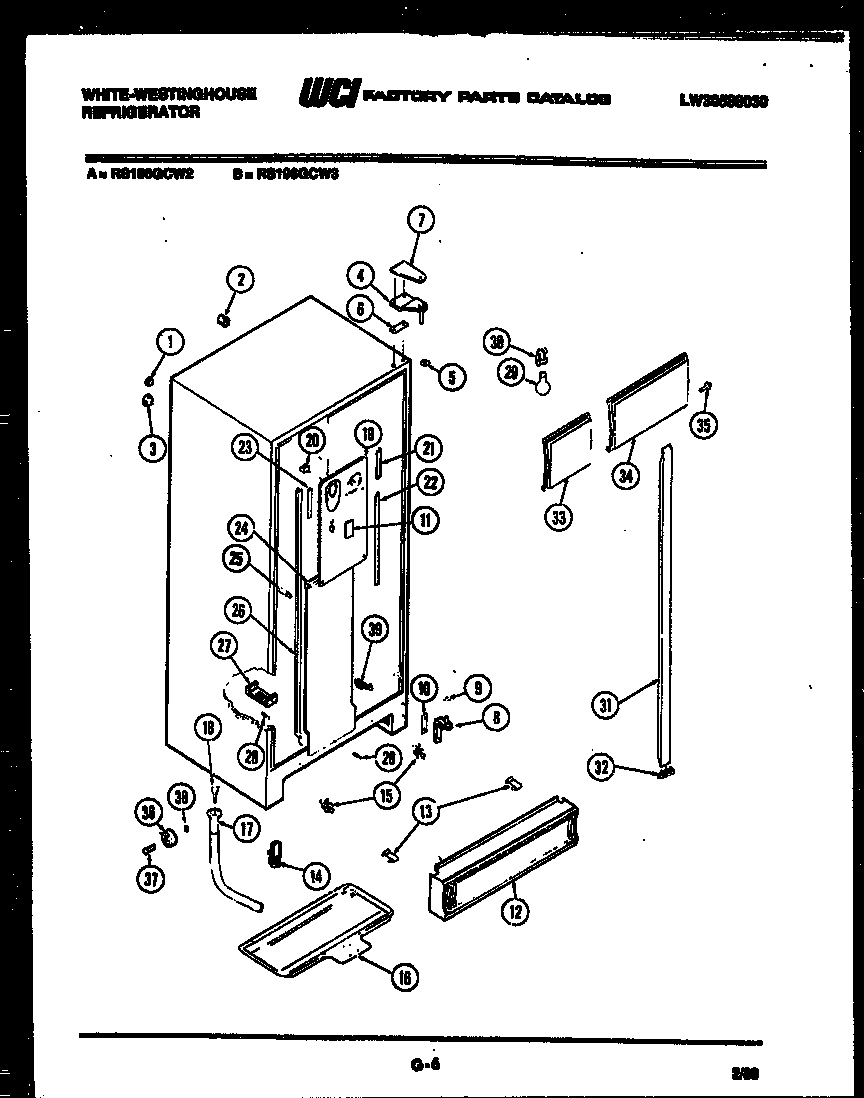

RS196GCH2 04 – CABINET PARTS

Products

Position	Product
*68680	BUTTON, LINER
*68680	BUTTON, PLUG, LINER (2)
1	WCI G174734
2	TUBE, INSULATION (2)
3	WCI G174733
4C	TAPPING PLATE (2)
4B	241710601 Frigidaire Refrigerator Screw
4A	WCI G183716
4	HINGE-TOP RS
5	WASHER, NYLON
6	WCI G183861
7	COVER HINGE, WHEAT
8B	WCI G141673
8	BRACKET-LOWER HINGE
8A	SCREW – 1/4 X 1 (2)
9	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
10B	NUT, SPEED (2)
10	SHIM, HINGE
10A	WCI G142361
11	WCI G165416-15
12	WCI G163080-03
13	WCI G162994
14	ROLLER ASSY (2)
14A	BOLT, HOUSING TO FRONT RAIL (2)
15	5303289051 Frigidaire Refrigerator Light Switch
16	PAN, DEFROST
17	241957901 Frigidaire Refrigerator Tube-Drain
18	WCI G171193
19	WCI G169481-01
19A	NUT, ORIFICE (2)
20	WCI G163669
21	WCI G165233
22	WCI G174234-02
23	WCI G174234-01
24	WCI G169477-03
25	WCI G169471
26	WCI G188000-03
27B	WCI G184851
27	WCI G158022
27A	WASHER
28	5304455650 Frigidaire Refrigerator Screw
29	218906802 Frigidaire Light Lamp Socket
30	LIGHT BULB
31A	WCI G169100
31B	WCI G169297
31	WCI G164643-09
32	WCI G169745-09
34	LIGHT SHIELD-FREEZER
35	WCI G165177
36	ROLLER (2)
37	WCI G162809
38	NUT, DAMPER MOUNTING
39	WCI G164912-03
