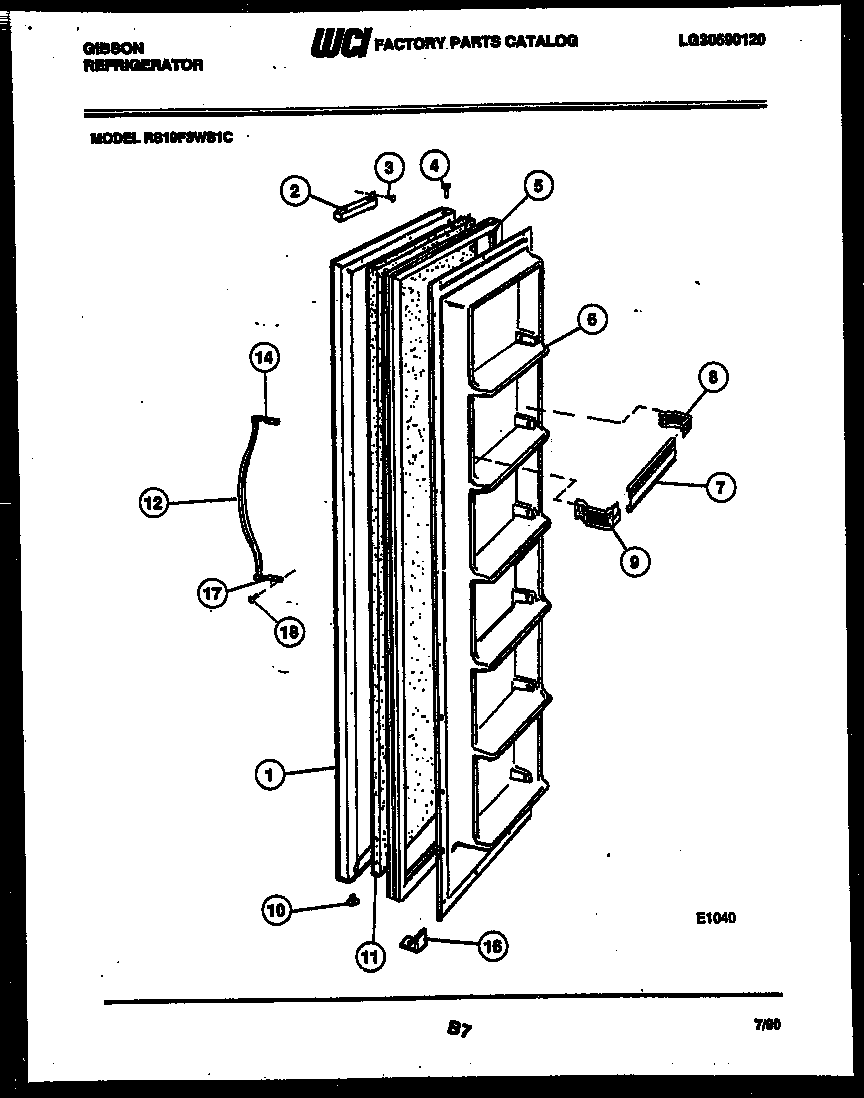

RS19F3WS1C 02 – FREEZER DOOR PARTS

RS19F3WS1C 02 – FREEZER DOOR PARTS

Written by

in

RS19F3WS1C 02 – FREEZER DOOR PARTS

Products

PositionProduct
1BWCI G169618-09
1AWCI G169618-08
1WCI G169618
1CWCI G169618-10
1DFREEZER DOOR-ALMOND (NON-ILLUSTRATED)
2WCI 5303200272
3SCREW-CLOSER MTG
4ABEARING-HINGE
4WCI 5303001022
5WCI 5303200474
6DOOR PANEL-INNER
7WCI 5315454139
8WCI 5315510407
9WCI 5315510207
10WCI 5315230801
11INSULATION-BULK (NON-ILLUSTRATED)
12WCI 5317566606
14HANDLE END
16WCI 5308000790
16A218843801 Frigidaire Refrigerator Screw
17HANDLE END
18WCI 5308011745
