RS19F6WS1C 05 – SHELVES AND SUPPORTS

RS19F6WS1C 05 – SHELVES AND SUPPORTS

Written by

in

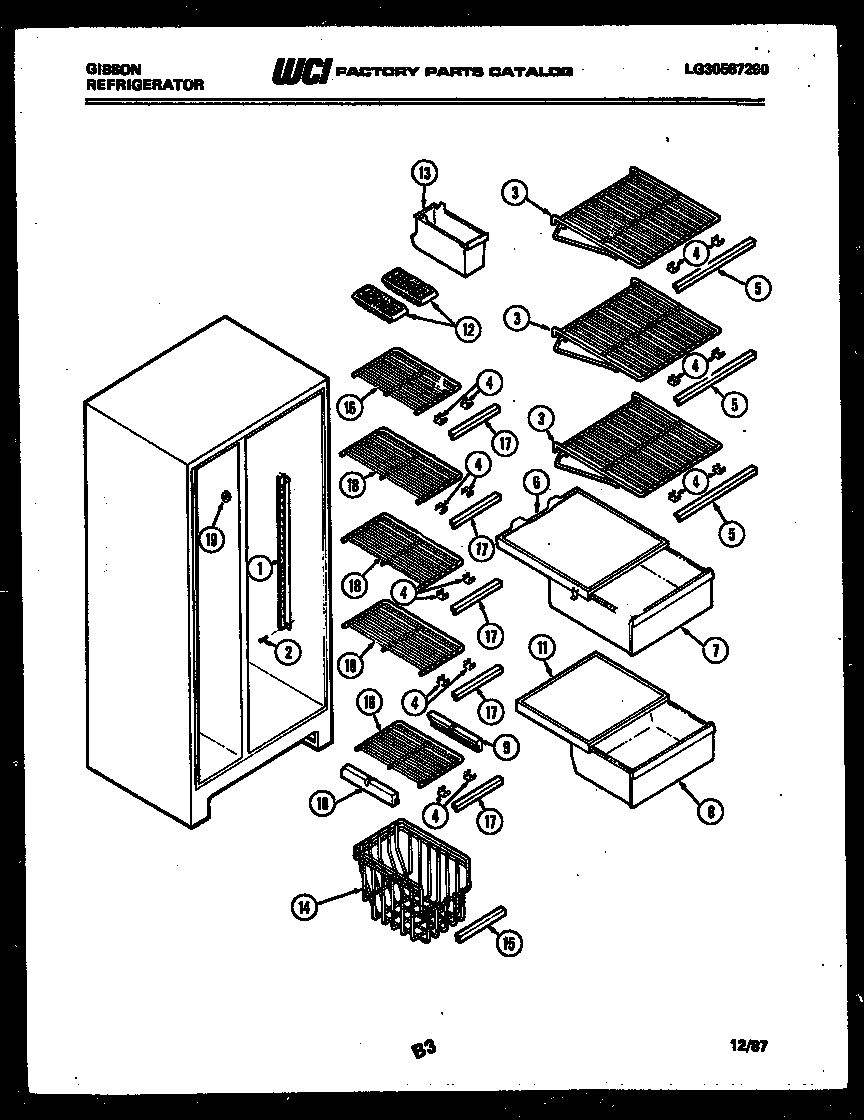

RS19F6WS1C 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1CHANNEL-RS & LS
25304455852 Frigidaire Refrigerator Screw
3WCI G168573-05
4CLIP – TRIM (12)
5WCI G141727-31
6WCI G163915-02
6AWCI G180108-06
7WCI G179707-07
8WCI G179708-07
9HANGER-BASKET RS
10HANGER-BASKET LS
11COVER, LWR PAN
12215667501 Frigidaire Refrigerator Ice Tray Primary
13WCI G163022-03
14WCI 3015095
15WCI 3015108
16WCI G168748-05
17WCI G141727-32
18WCI G168748-06
195304509705 Frigidaire Refrigerator Grommet
