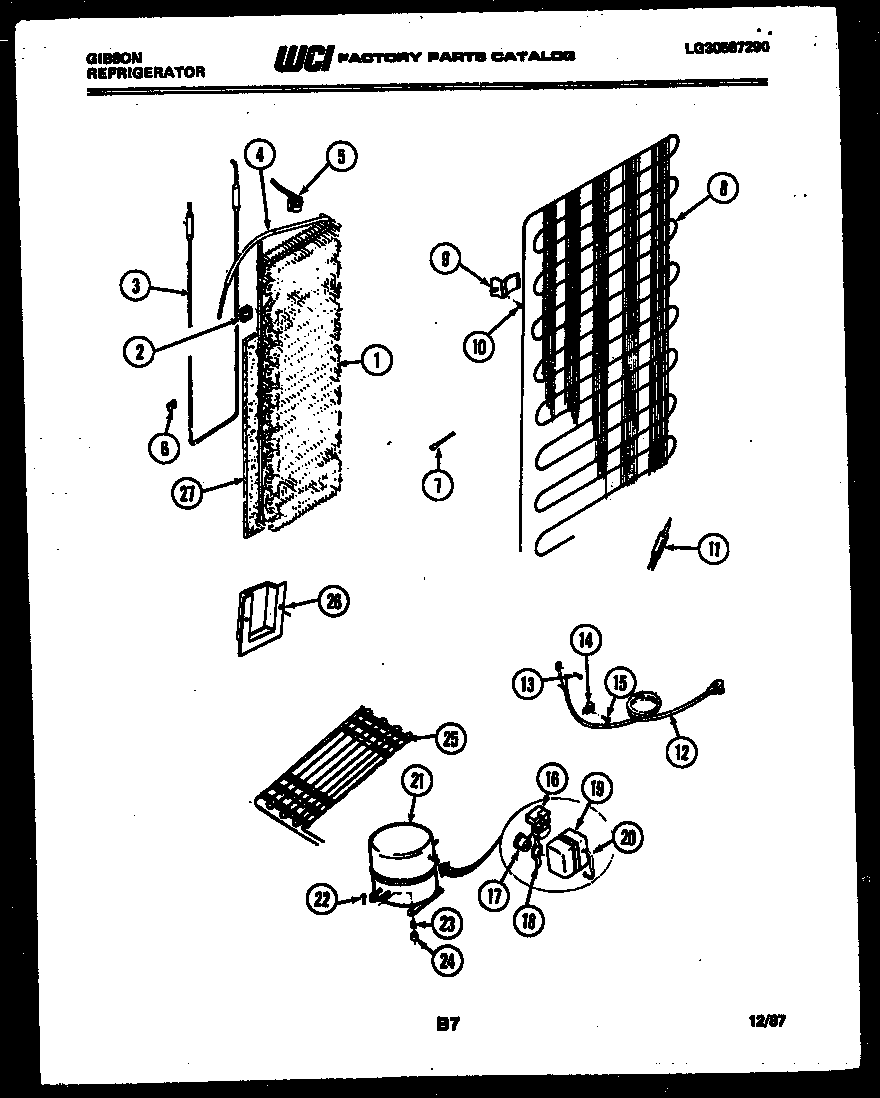

RS19F6WS1D 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

RS19F6WS1D 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

RS19F6WS1D 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*37881WCI G189376
*37877WIRING HARNESS-COMPR & LIGHTS
1WCI G190222
2WCI G169493
3WCI G190223
4WCI G189609
55303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
6WCI G167363
75308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
8WCI G188725
9BRACKET-CONDENSER MOUNTING (4)
105308000039 Frigidaire Refrigerator Screw
115303305677 Frigidaire Replacement Filter Dryer Filters
12CORD, SERVICE
145303001199 Frigidaire Refrigerator Wiring Harness Clamp
155304455651 Frigidaire Refrigerator Screw
16WCI G182225-04
17WCI G188727
18RETAINER, OVERLOAD
205303006412 Frigidaire Refrigerator Cover Mounting Strap
21COMPRESSOR
22SCREW – 1/4-20 (3) COMP. MTG.
23SLEEVE COMP MTG (3)
24218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI G188724
26WCI G183584
27WCI G169641
