RS20AKXDW00 07 – UNIT

RS20AKXDW00 07 – UNIT

Written by

in

RS20AKXDW00 07 – UNIT

Products

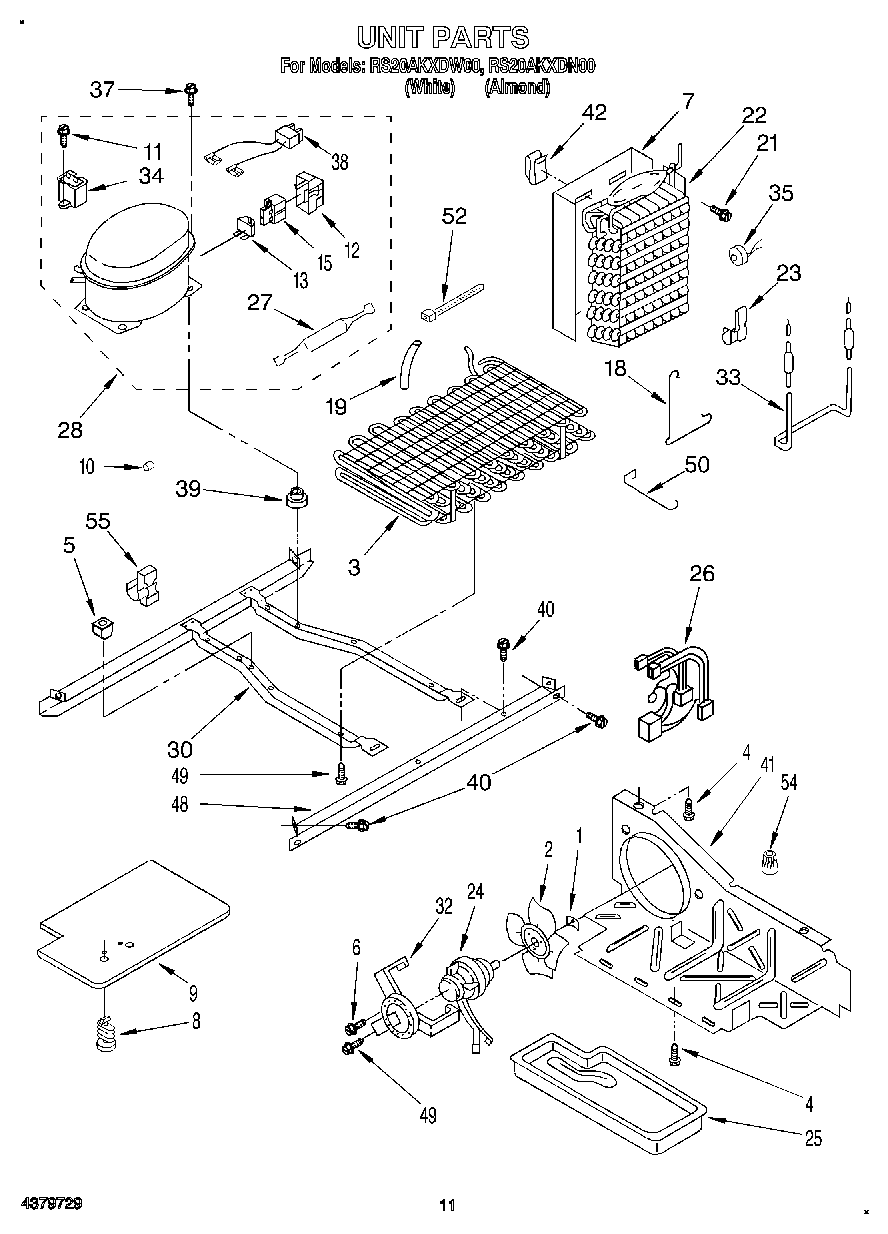

PositionProduct
1WP486692 Whirlpool Refrigerator Nut
2Fan, Blade
3Condenser Assembly
4WP489464 Whirlpool Refrigerator Screw
5Screw Grommet
6681390 Whirlpool Refrigerator Screw
7Heat Shield
8489396 Whirlpool Refrigerator Clip
9Cover-Unit Btm.
10WP2158826 Whirlpool Refrigerator Dampener
11W11693756 Whirlpool Screw Assembly
12WP2162358 Whirlpool Refrigerator Terminal Cover
13OVERLOAD
15Relay (See Overload)
18Clamp
19SLEEVE
21WP965173 Whirlpool Dishwasher Screw
22WP2188822 Whirlpool Refrigerator Evaporator
23Clip
24833697 Whirlpool Condenser Fan Motor
25WPW10614158 Whirlpool Refrigerator Evaporator Tray
26Wiring Assembly, Intermediate
27W10843121 Whirlpool Refrigerator Tube
28W10309990 Whirlpool Refrigerator Compressor
30Unit Mounting Frame
32Bracket, Motor
33WP2323197 Whirlpool Refrigerator Heater
34Capacitor
35WPW10225581 Whirlpool Refrigerator Defrost Thermostat
38WP2172890 Whirlpool Refrigerator Wire
39876811 Whirlpool Grommet
40WP489427 Whirlpool Refrigerator Screw
41Air Baffle
42Clip, Heat Shield
48Unit Mounting Rail
49Screw, 8 x 3/8
501105612 Whirlpool Fan Guard
52Strap
54Wire Connector
55876764 Whirlpool Refrigerator Primary Valve
55978026 Whirlpool Refrigerator Primary Valve
55978027 Whirlpool Refrigerator Primary Valve
55978030 Whirlpool Refrigerator Valve
55Clip, Wire
55WP978025 Whirlpool Refrigerator Valve
55VALVE, ACCESS (1/2“)
55VALVE, ACCESS (5/8“)
