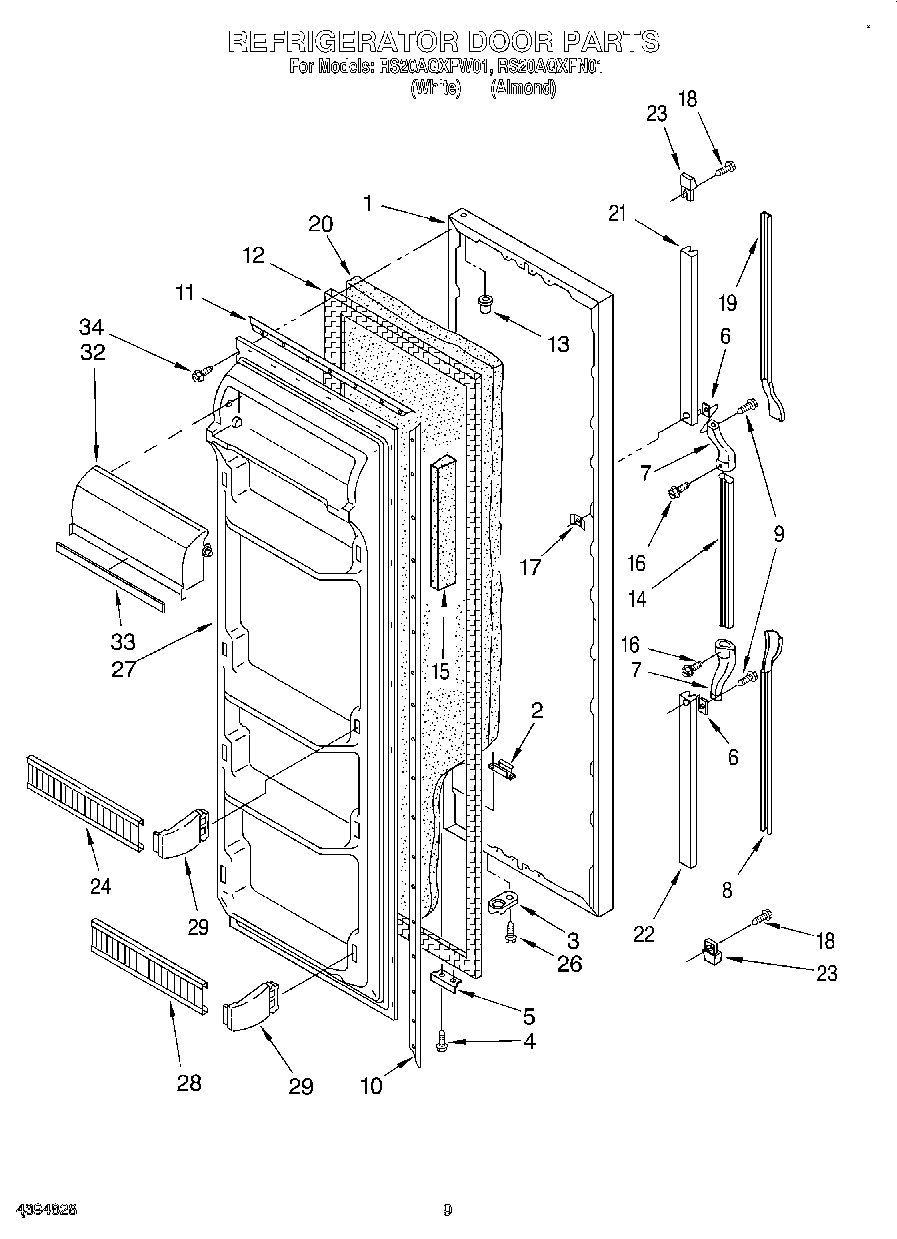

RS20AQXFW01 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door Panel (Almond (Also Order Item 20))
1	Refrigerator Door Panel (White)
2	Tap, Plate
3	4318165 Whirlpool Refrigerator Door Closure Cam Kit
4	WP489483 Whirlpool Screw
5	Bracket, Door Stop (Chrome)
6	Shim
7	End Cap, Center Handle
8	Insert, Bottom (White)
8	Insert, Bottom (Almond)
9	WP489463 Whirlpool Refrigerator Screw
10	Retainer, Gasket
11	Gasket Retainer, Top & Bottom
12	2188404A Whirlpool Refrigerator Door Gasket
13	Cap, Hinge Sleeve (2)
14	Handle, Center (Almond)
14	Handle, Center (White)
15	Reinforcement, Shelf
16	Screw
17	Screw Anchor (2)
18	WP3400852 Whirlpool Refrigerator Screw
19	Insert, Top (White)
19	Insert, Top (Almond)
20	WPL 876029
21	Insert Retainer (Top)
22	Retainer, Bottom
23	End Cap (2)
24	WP2182189 Whirlpool Door Shelf Bar
26	WP3400012 Whirlpool Refrigerator Screw
27	Panel, Interior Door
28	WP2256010 Whirlpool Door Shelf Trim
29	WP2196190 Whirlpool Shelf Retainer Bar Support
29	WP2196189 Whirlpool Shelf Retainer Bar
32	Door, Compartment
33	Trim, Compartment Door
34	WP489069 Whirlpool Compactor Screw
