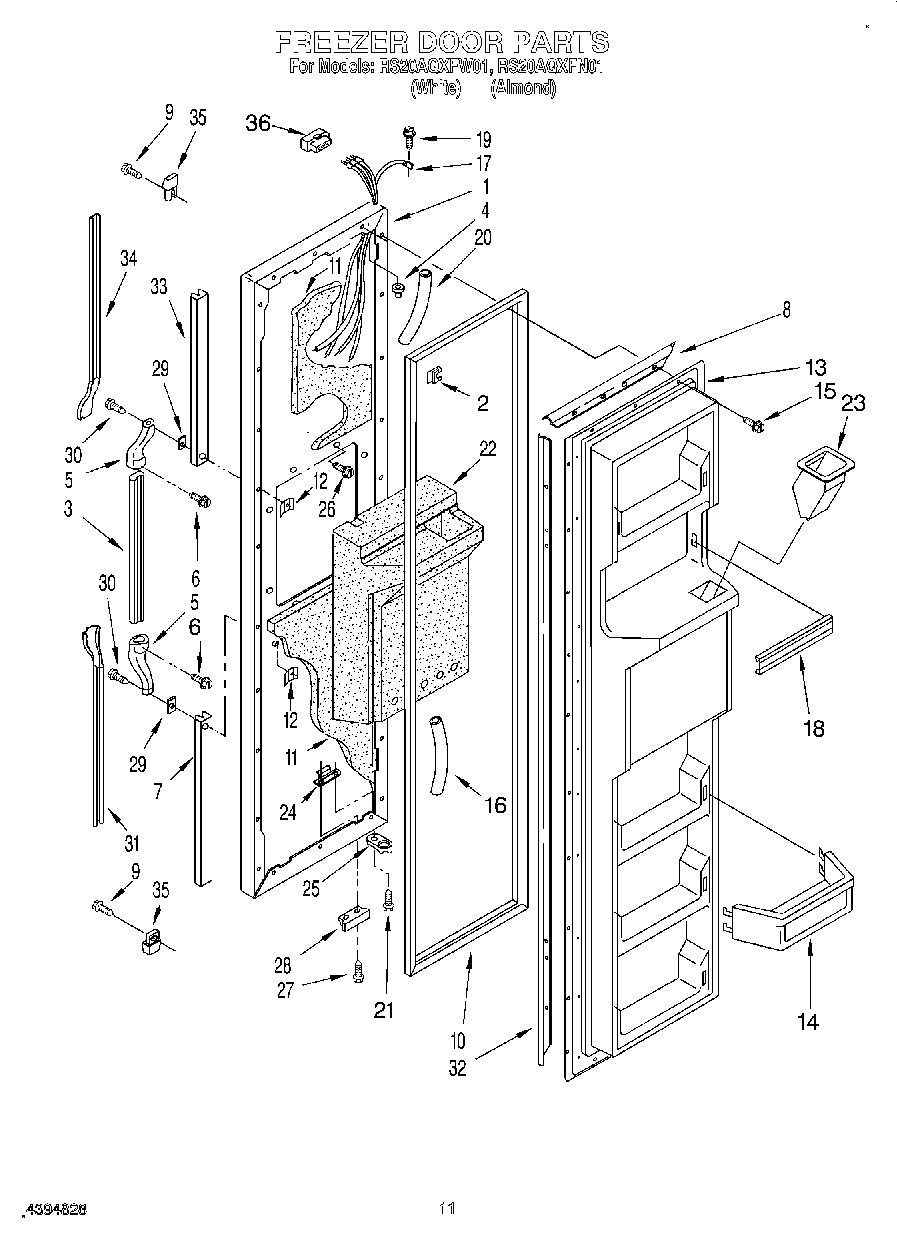

RS20AQXFW01 07 – FREEZER DOOR

Products

Position	Product
1	Freezer, Door Panel (White)
1	Freezer, Door Panel (Almond (Also Order Item 11))
2	Clip
3	Handle, Center (Almond)
3	Handle, Center (White)
4	Seal, Hinge Pin
5	End Cap, Center Handle
6	Screw
7	Retainer, Bottom
8	Retainer, Gasket
9	WP3400852 Whirlpool Refrigerator Screw
10	2188405A Whirlpool Refrigerator Door Gasket
11	WPL 876029
12	WP939101 Whirlpool Refrigerator Plate
13	Panel, Interior Door
14	Trim, Door Shelf (4)
15	WP489069 Whirlpool Compactor Screw
16	Tube, Door Wiring
17	Wire Harness
18	TRIM-DOOR
19	WP3400906 Whirlpool Refrigerator Screw
20	Tube, Door Wiring
21	WP3400012 Whirlpool Refrigerator Screw
22	Insulation, Dispenser
23	Chute, Ice
24	Tap, Plate
25	4318165 Whirlpool Refrigerator Door Closure Cam Kit
26	WP489128 Whirlpool Refrigerator Screw
27	WP489483 Whirlpool Screw
28	Bracket, Door Stop (Chrome)
29	Shim
30	WP489463 Whirlpool Refrigerator Screw
31	Insert, Bottom (White)
31	Insert, Bottom (Almond)
32	Retainer, Gasket
33	Insert Retainer (Top)
34	Insert, Top (Almond)
34	Insert, Top (White)
35	End Cap (2)
36	WP2154473 Whirlpool Refrigerator Connector
