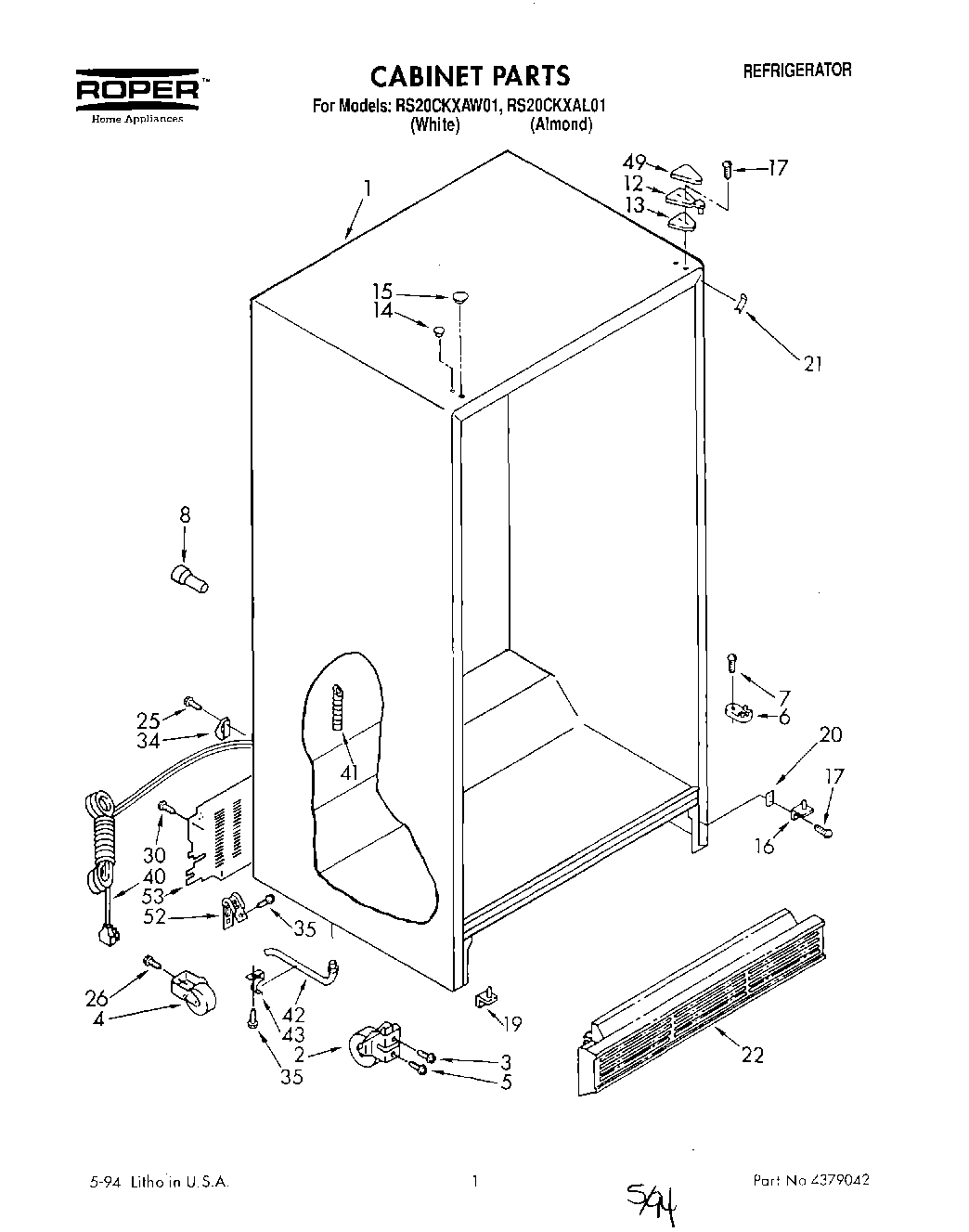

| 1 | Cabinet (Not A Serviceable Part) |
| 2 | Front Roller (2) |
| 3 | Screw, 5/16-24 x 1-1/4 |
| 4 | WPW10250570 Whirlpool Refrigerator Cabinet Roller |
| 5 | WP489427 Whirlpool Refrigerator Screw |
| 6 | WPW10329686 Whirlpool Door Cam Black |
| 7 | WP489399 Whirlpool Refrigerator Screw |
| 8 | Tube, Water Inlet |
| 12 | Hinge, Top |
| 13 | Shim, Hinge Top |
| 14 | Hole, Plug (White) |
| 14 | Hole Plug (Almond) |
| 15 | Hole Plug (Almond) |
| 15 | Hole Plug (White) |
| 16 | Hinge Bottom (R.H.) |
| 17 | WP999367 Whirlpool Refrigerator Screw |
| 19 | hinge Bottom (L.H.) |
| 20 | Shim, Bottom Hinge |
| 21 | Filler, Wrapper (Almond) |
| 21 | Filler, Wrapper (White) |
| 22 | Grille (Black) |
| 25 | WP489478 Whirlpool Refrigerator Screw |
| 26 | Screw, 1/4-28 x 1/2 (2) |
| 34 | WP488366 Whirlpool Refrigerator Clamp |
| 35 | WP489464 Whirlpool Refrigerator Screw |
| 40 | Cord, Service |
| 41 | Drain Ferrule |
| 42 | WP1108438 Whirlpool Refrigerator Extension |
| 43 | WP1108439 Whirlpool Refrigerator Clip |
| 49 | 1119787 Whirlpool Refrigerator Hinge Cover |
| 52 | 549193 Whirlpool Refrigerator Power Clamp |
| 53 | WP2188756 Whirlpool Refrigerator Unit Cover |
