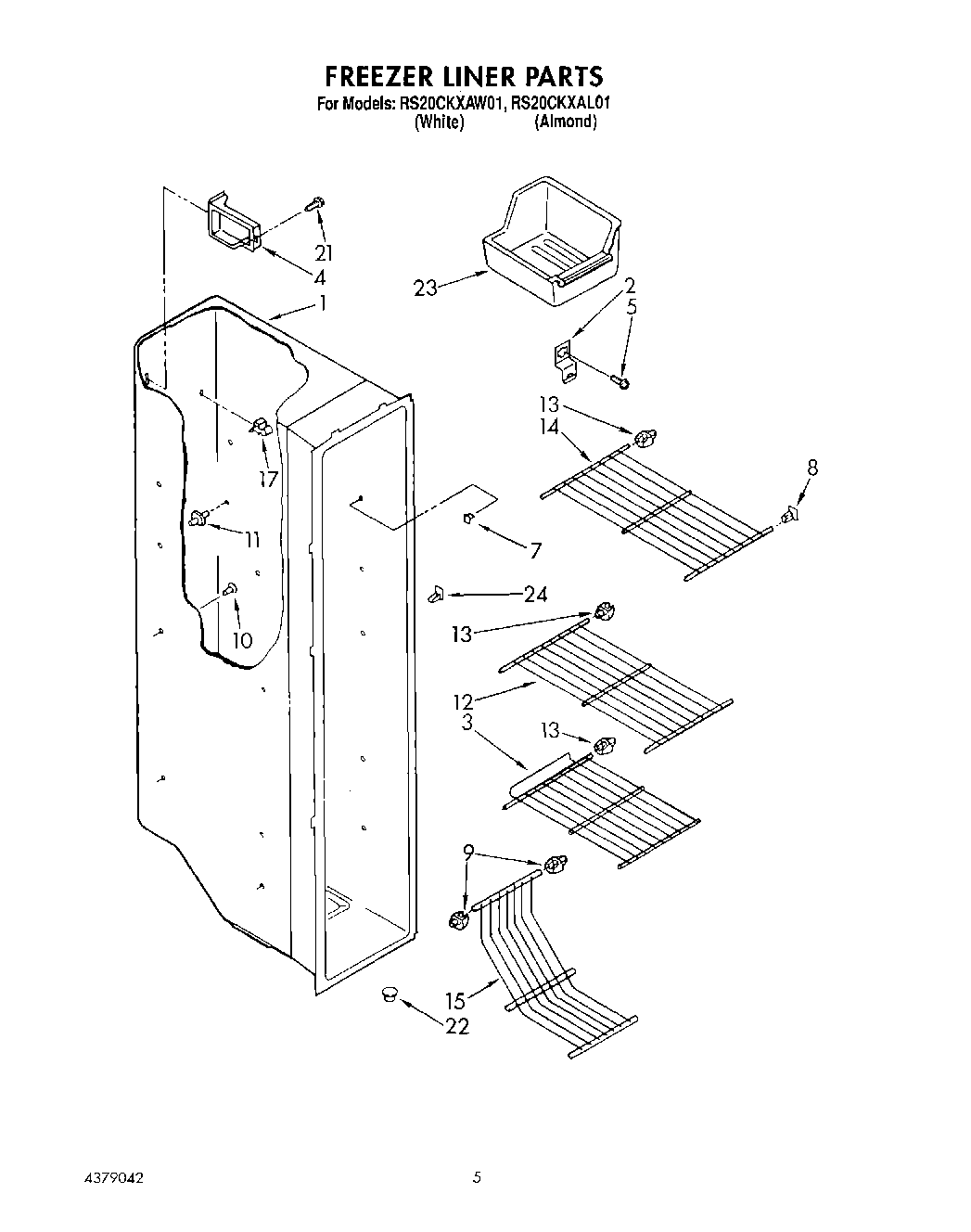

RS20CKXAL01 03 – FREEZER LINER

RS20CKXAL01 03 – FREEZER LINER

Written by

in

RS20CKXAL01 03 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Clip, Support (2)
3Shelf (Small 1)
4Cover, Wiring
5WP489478 Whirlpool Refrigerator Screw
7Stud, Support
8Stud, Front R.S.
9819091 Whirlpool Refrigerator Shelf Stud
10Grommet (8)
114388538 Whirlpool Refrigerator Stud Shelf Kit (White)
12Shelf
14Shelf (3)
15Trivet
172215823 Whirlpool Refrigerator Clip
21WP488729 Whirlpool Refrigerator Door Screw
22W11566763 Whirlpool Fitting
23WP841180A Whirlpool Microwave Glass Turntable Tray
24Stud, Rear R.S.
