RS20CKXAW00 09 – UNIT, LIT/OPTIONAL

RS20CKXAW00 09 – UNIT, LIT/OPTIONAL

Written by

in

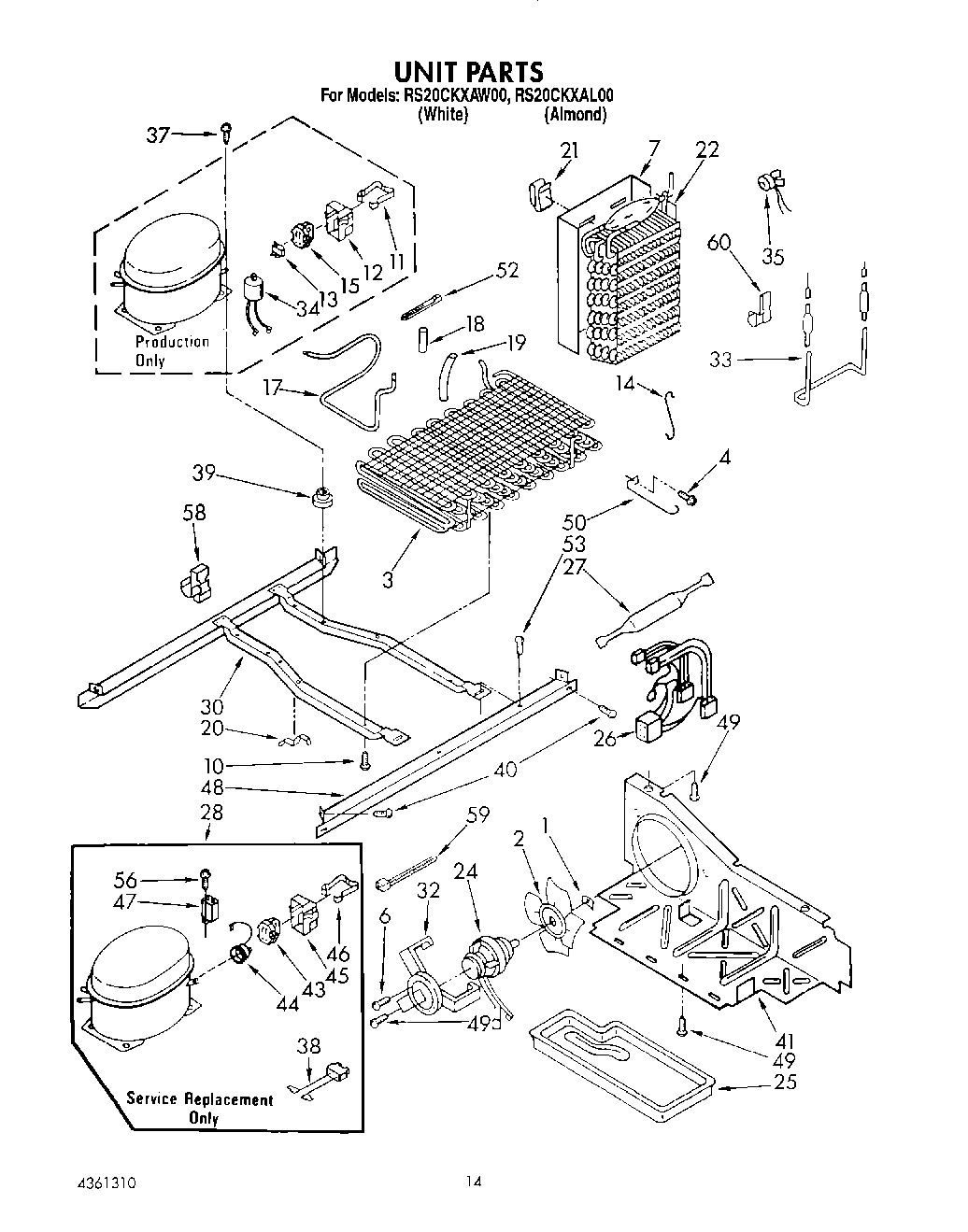

RS20CKXAW00 09 – UNIT, LIT/OPTIONAL

Products

Position	Product
	WPL LIT4361310
	WPL LIT2152634
	WPL LIT2155143
	WPL LIT2152632
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
4	WP489478 Whirlpool Refrigerator Screw
6	681390 Whirlpool Refrigerator Screw
7	Heat Shield
10	WP489464 Whirlpool Refrigerator Screw
11	case spring
12	Case, Relay
13	WP2149959 Whirlpool Refrigerator Overload
14	Clip, Defrost Heater
15	2154436 Whirlpool Refrigerator Start Relay
17	2205764 Whirlpool Refrigerator Tube
18	WP2158826 Whirlpool Refrigerator Dampener
19	SLEEVE
20	Clip (2)
21	Clip, Heat Shield
22	WP2188822 Whirlpool Refrigerator Evaporator
24	833697 Whirlpool Condenser Fan Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Wiring Assembly, Intermediate
27	W10843121 Whirlpool Refrigerator Tube
28	W10439652 Whirlpool Refrigerator Compressor
28	876765 Whirlpool Primary Mounting Kit Refrigerator
30	Unit Mounting Frame
32	Fan, Motor Bracket
33	Heater, Defrost
34	WPW10662129 Whirlpool Refrigerator Run Capacitor
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
37	Screw
38	WP2172890 Whirlpool Refrigerator Wire
39	Grommet (Production)
40	489340 Whirlpool Refrigerator Screw
41	Air, Baffle
43	Relay (Order Overload, No.44, To Obtain Relay)
44	Overload
45	Cover
46	Strap
48	Unit Mounting Rail
49	Screw, 8 x 3/8
50	1105612 Whirlpool Fan Guard
53	WP489427 Whirlpool Refrigerator Screw
56	W11693756 Whirlpool Screw Assembly
58	Clip, Wire
59	WPW10339879 Whirlpool Wire Tie
60	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
60	Transformer (115-230 Volt)
60	350956 Whirlpool Spray Assembly
60	Paint, Spray (13 Oz.) (Platinum)
60	Toast
60	72017 Whirlpool Appliance Touch-Up Paint White
60	799344 Whirlpool Refrigerator Paint
60	WP72107 Whirlpool Touchup
60	Golden Harvest (Uncut)
60	Golden Harvest
60	Leveler (Thinner)
60	TAPE, VINYL (3/4 X 108“)
60	Almond (Uncut)
60	VALVE, ACCESS (5/8“)
60	72113 Whirlpool Touch-Up Paint
60	Enamal, Toast (1 Qt. Uncut)
60	Platinum (Uncut)
60	WP503695 Whirlpool Refrigerator Sealer
60	876764 Whirlpool Refrigerator Primary Valve
60	WPL 876029
60	WPL 799833
60	Enamel, Black (1 Qt. Uncut)
60	CEMENT, ALUMILASTIC (1 1/4 OZ.)
60	VALVE, ACCESS (1/2“)
60	WP978025 Whirlpool Refrigerator Valve
60	Torx Key
60	978030 Whirlpool Refrigerator Valve
60	978026 Whirlpool Refrigerator Primary Valve
60	WP505587 Whirlpool Refrigerator Sealer
60	285006 Whirlpool Spray
60	WPL 72112
60	350930 Whirlpool White Spray Paint
60	212643 Whirlpool Refrigerator Permagum Sealer
60	350942 Whirlpool Spray Paint
60	511873 Whirlpool Refrigerator Paint
60	606755 Whirlpool Refrigerator Bag
60	WP542638 Whirlpool Refrigerator Grease
60	833938 Whirlpool Refrigerator Terminal
60	Clip
60	876370 Whirlpool Refrigerator Insulation
60	72032 Whirlpool Touch Up Paint Black
60	978027 Whirlpool Refrigerator Primary Valve
