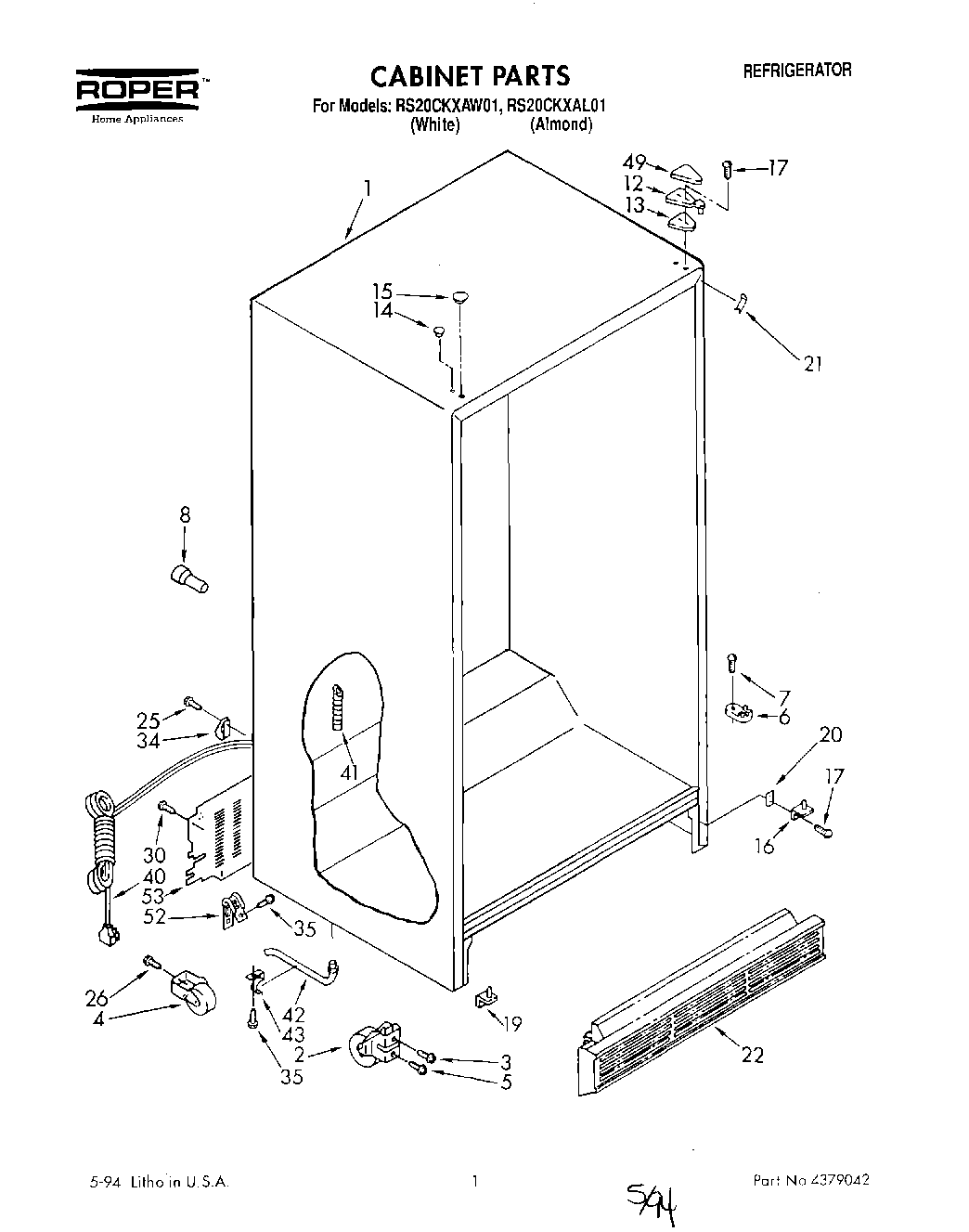

RS20CKXAW01 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Front Roller (2)
3	Screw, 5/16-24 x 1-1/4
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WPW10329686 Whirlpool Door Cam Black
7	WP489399 Whirlpool Refrigerator Screw
8	Tube, Water Inlet
12	Hinge, Top
13	Shim, Hinge Top
14	Hole, Plug (White)
14	Hole Plug (Almond)
15	Hole Plug (Almond)
15	Hole Plug (White)
16	Hinge Bottom (R.H.)
17	WP999367 Whirlpool Refrigerator Screw
19	hinge Bottom (L.H.)
20	Shim, Bottom Hinge
21	Filler, Wrapper (Almond)
21	Filler, Wrapper (White)
22	Grille (Black)
25	WP489478 Whirlpool Refrigerator Screw
26	Screw, 1/4-28 x 1/2 (2)
34	WP488366 Whirlpool Refrigerator Clamp
35	WP489464 Whirlpool Refrigerator Screw
40	Cord, Service
41	Drain Ferrule
42	WP1108438 Whirlpool Refrigerator Extension
43	WP1108439 Whirlpool Refrigerator Clip
49	1119787 Whirlpool Refrigerator Hinge Cover
52	549193 Whirlpool Refrigerator Power Clamp
53	WP2188756 Whirlpool Refrigerator Unit Cover
