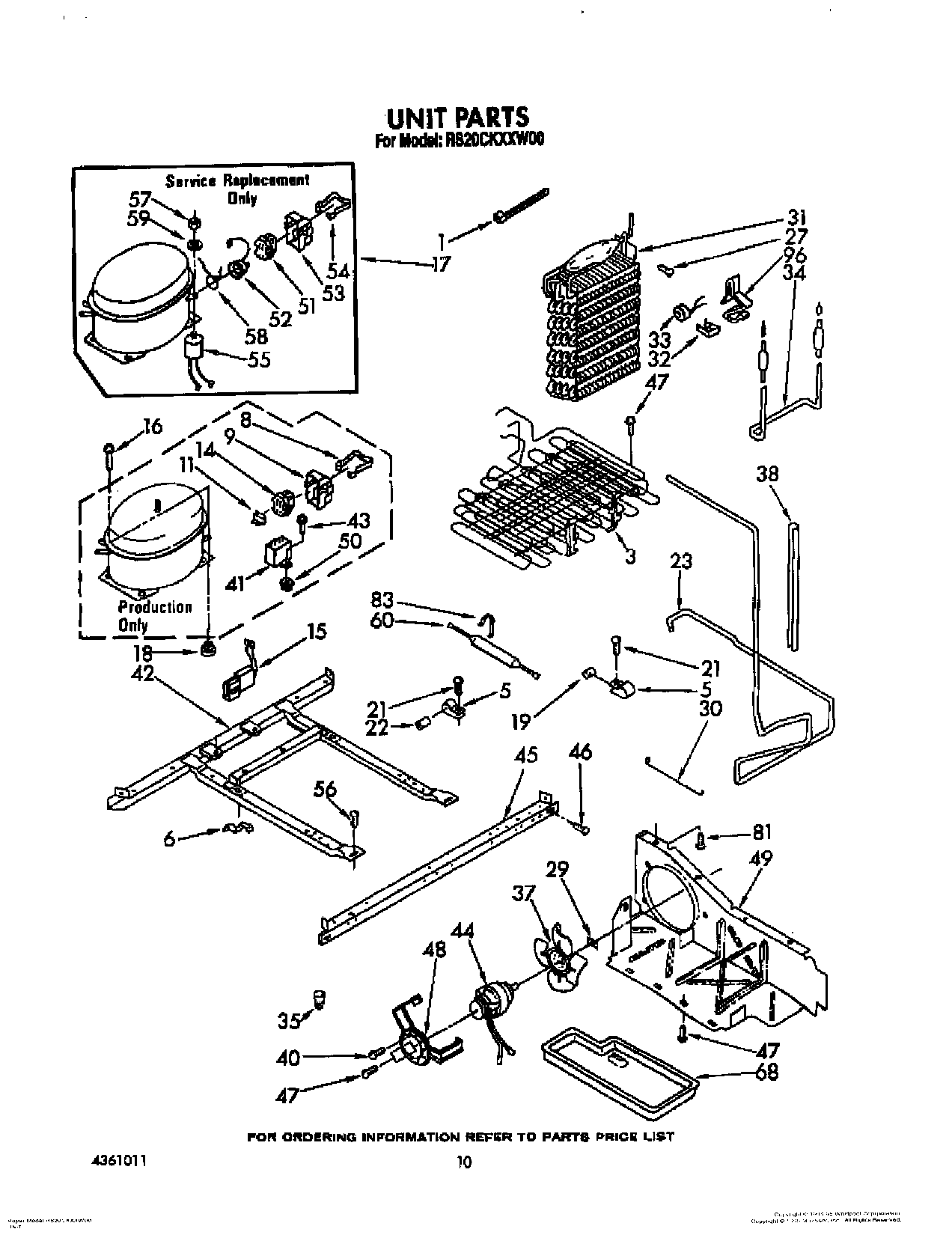

RS20CKXXG00 07 – UNIT

Products

Position	Product
1	Strap
3	Condenser
5	Clamp Tube
6	Clip (2)
9	Cover
11	Overload
15	Housing Plug
17	Compressor (Includes Items 43, 44, 45, 46, 47, 51, & 52) (Also Order 482801 Mounting Kit & 876765 Tu
18	876811 Whirlpool Grommet
19	WP2158826 Whirlpool Refrigerator Dampener
21	WPW10141625 Whirlpool Refrigerator Screw Assembly
22	Dampener (2)
23	Exchanger, Heat
27	WP488729 Whirlpool Refrigerator Door Screw
29	WP486692 Whirlpool Refrigerator Nut
30	1105612 Whirlpool Fan Guard
31	Evaporator
32	Clamp
33	WP4387499 Whirlpool Refrigerator Bimetallic Defrost
34	Heater, Defrost
35	Wire Connector
37	Fan, Blade
38	WP2002171 Whirlpool Refrigerator Sleeve
40	681390 Whirlpool Refrigerator Screw
41	WPW10662129 Whirlpool Refrigerator Run Capacitor
42	Unit Mounting Frame
43	W11693756 Whirlpool Screw Assembly
44	833697 Whirlpool Condenser Fan Motor
45	Unit Mounting Rail
46	489340 Whirlpool Refrigerator Screw
48	Bracket, Motor
49	Air, Baffle
50	Screw Grommet
51	WP2262181 Whirlpool Refrigerator Start Relay
52	Overload
53	Cover, Terminal
54	Strap
55	Capacitor
56	Screw, 8 x 3/8
57	Nut
58	Overload Spring
59	Washer
60	W10843121 Whirlpool Refrigerator Tube
68	WPW10614158 Whirlpool Refrigerator Evaporator Tray
81	Screw, 8-32 x 1/2
83	Clamp, Dryer
96	VALVE, ACCESS (5/8“)
96	VALVE, ACCESS (1/2“)
96	978027 Whirlpool Refrigerator Primary Valve
96	876764 Whirlpool Refrigerator Primary Valve
96	WP978025 Whirlpool Refrigerator Valve
96	978030 Whirlpool Refrigerator Valve
96	978026 Whirlpool Refrigerator Primary Valve
96	Clamp (4)
