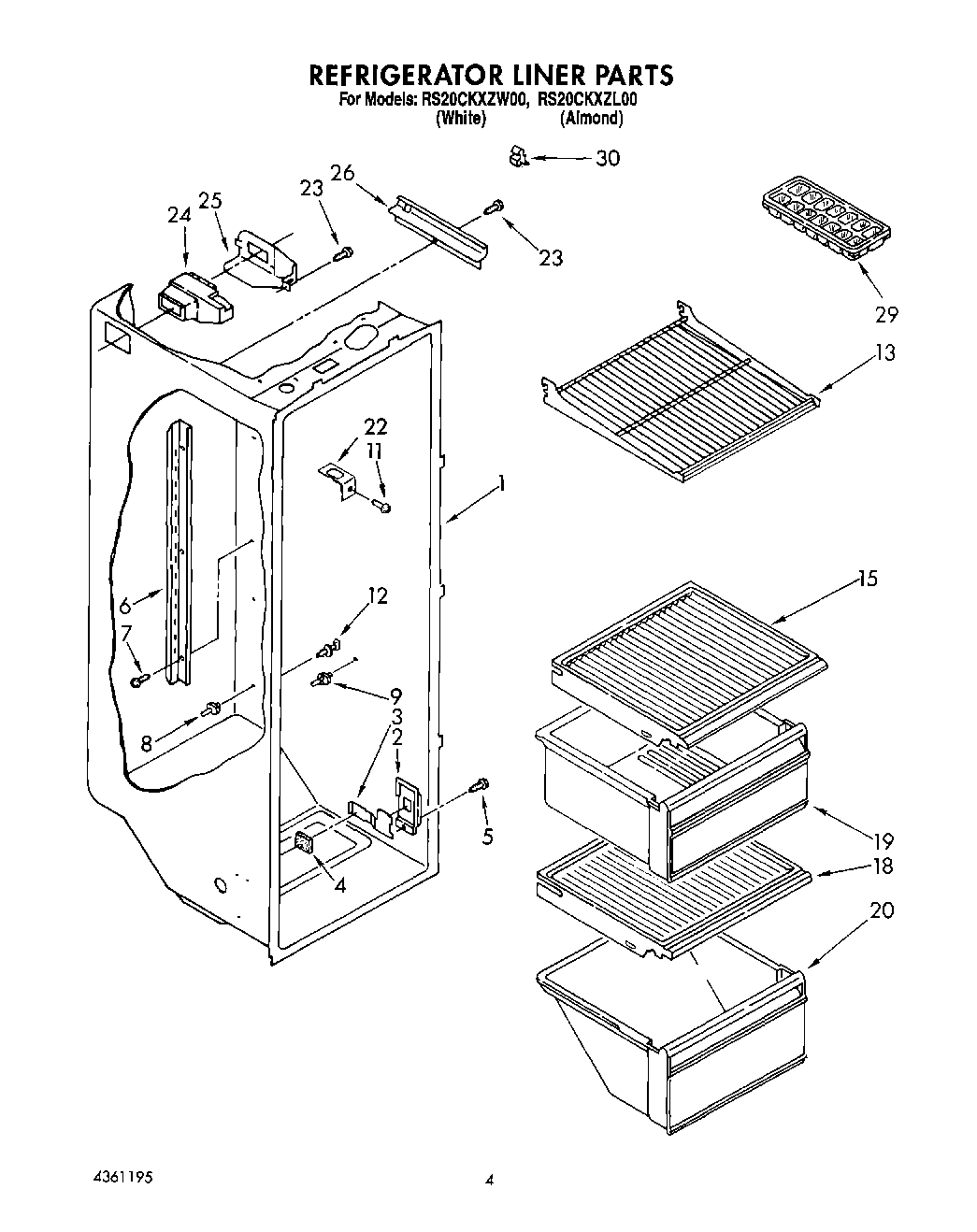

RS20CKXZW00 03 – REFRIGERATOR LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Escutcheon, Meat Pan Control
3	Slide, Meat Pan Control
4	Pad, Foam
5	WP489478 Whirlpool Refrigerator Screw
6	Ladder, Shelf
7	WP488729 Whirlpool Refrigerator Door Screw
8	4388538 Whirlpool Refrigerator Stud Shelf Kit (White)
9	WP2149540 Whirlpool Shelf Support
11	WP488488 Whirlpool Refrigerator Screw
13	Shelf, Cantilever
15	Crisper Cover
18	WP2148298 Whirlpool Refrigerator Deli Drawer Cover Top Pan
19	WP2148279 Whirlpool Refrigerator Crisper Pan
20	Meat Pan
22	WP2256085 Whirlpool Refrigerator Retainer
23	W10759522 Whirlpool Screw
24	WPW10151374 Whirlpool Refrigerator Diffuser
25	2152019 Whirlpool Refrigerator Cover
26	Cover, Conduit
29	WP841180A Whirlpool Microwave Glass Turntable Tray
30	2215823 Whirlpool Refrigerator Clip
