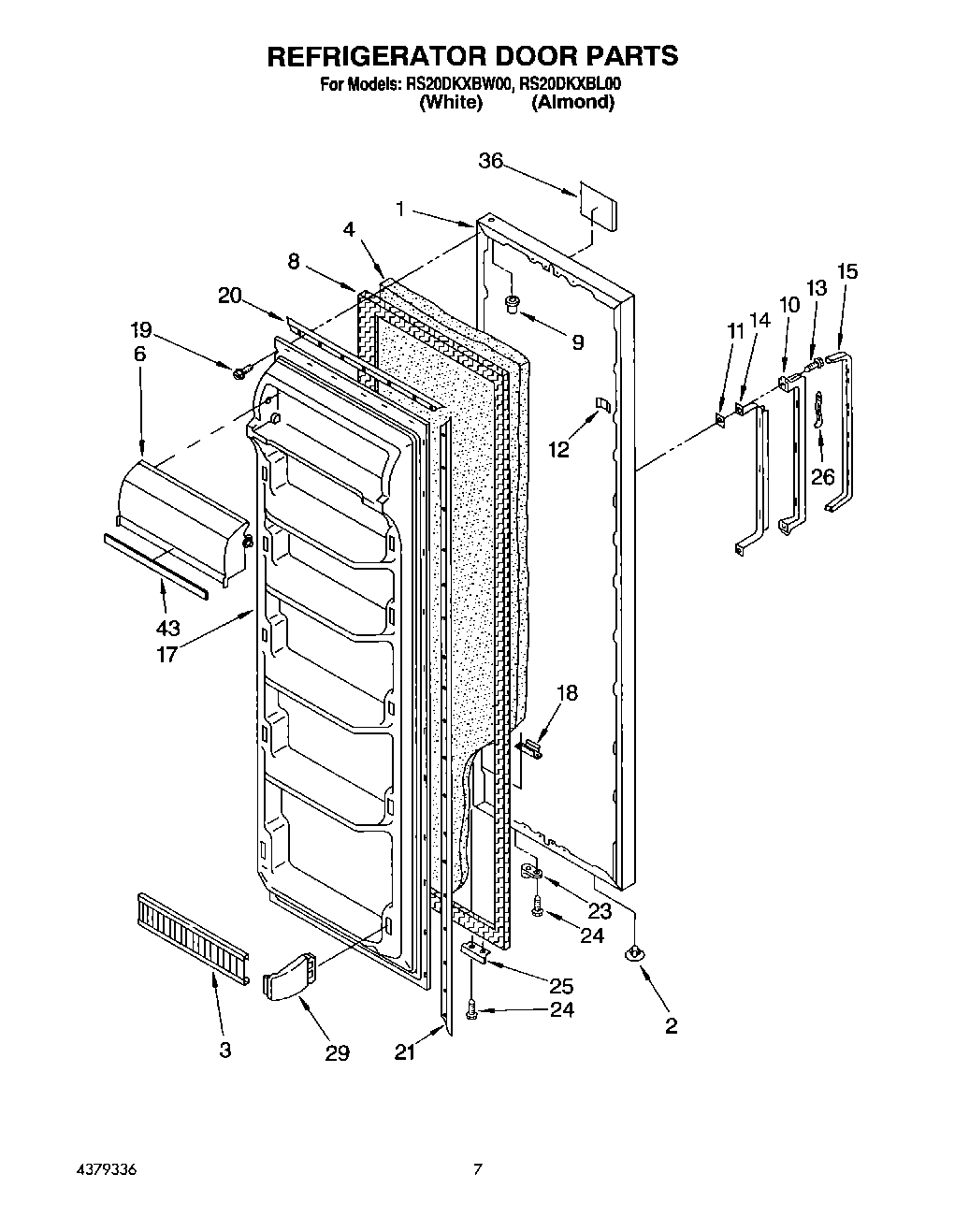

RS20DKXBL00 04 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door Panel (White)
1	Refrigerator Door Panel (Almond (Also Order Item 4))
2	Hole Plug (6) (Almond)
3	Trim, Shelf (5)
4	WPL 876029
6	Door, Compartment
8	2188404A Whirlpool Refrigerator Door Gasket
9	Cap, Hinge Sleeve (2)
10	Handle
11	Shim
12	WP939101 Whirlpool Refrigerator Plate
14	Reinforcement, Handle
15	Insert, Handle
17	Panel, Interior Door
18	Tap, Plate
19	WP489069 Whirlpool Compactor Screw
20	Gasket Retainer, Top & Bottom
21	Retainer, Gasket
23	4318165 Whirlpool Refrigerator Door Closure Cam Kit
24	WP999367 Whirlpool Refrigerator Screw
25	Bracket, Door Stop
26	Clip, Handle
29	Retainer, Door Trim
36	Nameplate
43	Trim, Compartment
