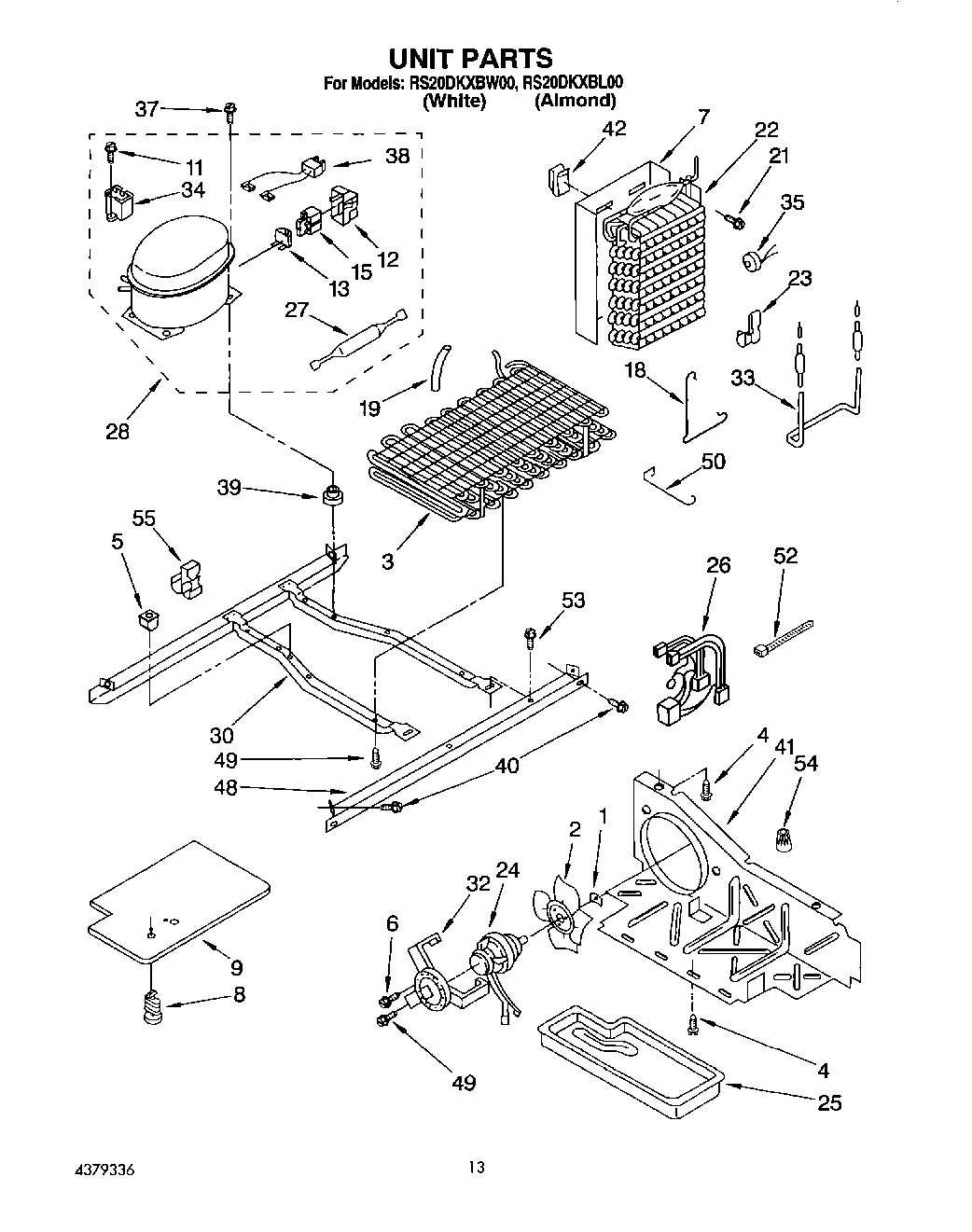

RS20DKXBL00 08 – UNIT, LIT/OPTIONAL

RS20DKXBL00 08 – UNIT, LIT/OPTIONAL

Written by

in

RS20DKXBL00 08 – UNIT, LIT/OPTIONAL

Products

PositionProduct
WPL LIT2173253
WPL LIT2157984
WPL LIT2169111
1WP486692 Whirlpool Refrigerator Nut
2Fan, Blade
3Condenser Assembly
4WP489464 Whirlpool Refrigerator Screw
5Screw Grommet
6681390 Whirlpool Refrigerator Screw
7Heat Shield
8489396 Whirlpool Refrigerator Clip
9Cover-Unit Btm.
11W11693756 Whirlpool Screw Assembly
12WP2162358 Whirlpool Refrigerator Terminal Cover
13OVERLOAD
15Relay (See Overload)
18Clamp
19SLEEVE
21WP965173 Whirlpool Dishwasher Screw
22WP2188822 Whirlpool Refrigerator Evaporator
23Clip
24833697 Whirlpool Condenser Fan Motor
25WPW10614158 Whirlpool Refrigerator Evaporator Tray
26Wiring Assembly, Intermediate
27W10843121 Whirlpool Refrigerator Tube
28W10309990 Whirlpool Refrigerator Compressor
30Unit Mounting Frame
32Fan, Motor Bracket
33Heater, Defrost
34Capacitor
35WPW10225581 Whirlpool Refrigerator Defrost Thermostat
38WP2172890 Whirlpool Refrigerator Wire
39876811 Whirlpool Grommet
40489340 Whirlpool Refrigerator Screw
41Air Baffle
42Clip, Heat Shield
48Unit Mounting Rail
49Screw, 8 x 3/8
501105612 Whirlpool Fan Guard
52WPW10339879 Whirlpool Wire Tie
53WP489427 Whirlpool Refrigerator Screw
54Wire Connector
55Clip, Wire
55Transformer (115-230 Volt)
551129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
55WP505587 Whirlpool Refrigerator Sealer
5572113 Whirlpool Touch-Up Paint
5572032 Whirlpool Touch Up Paint Black
55285006 Whirlpool Spray
55212643 Whirlpool Refrigerator Permagum Sealer
55WPL 72112
55Platinum (Uncut)
55Enamal, Toast (1 Qt. Uncut)
55Paint, Spray (13 Oz.) (Platinum)
55Toast
55Golden Harvest (Uncut)
55Golden Harvest
5572110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
55VALVE, ACCESS (5/8“)
55Almond (Uncut)
55Leveler (Thinner)
55WP72107 Whirlpool Touchup
55799344 Whirlpool Refrigerator Paint
5572017 Whirlpool Appliance Touch-Up Paint White
55350956 Whirlpool Spray Assembly
55350942 Whirlpool Spray Paint
55511873 Whirlpool Refrigerator Paint
55606755 Whirlpool Refrigerator Bag
55WPL 876029
55WPL 799833
55Enamel, Black (1 Qt. Uncut)
55CEMENT, ALUMILASTIC (1 1/4 OZ.)
55TAPE, VINYL (3/4 X 108“)
55VALVE, ACCESS (1/2“)
55WP978025 Whirlpool Refrigerator Valve
55Torx Key
55978030 Whirlpool Refrigerator Valve
55WP542638 Whirlpool Refrigerator Grease
55978027 Whirlpool Refrigerator Primary Valve
55978026 Whirlpool Refrigerator Primary Valve
55876764 Whirlpool Refrigerator Primary Valve
55WP503695 Whirlpool Refrigerator Sealer
55876370 Whirlpool Refrigerator Insulation
55833938 Whirlpool Refrigerator Terminal
55350930 Whirlpool White Spray Paint
