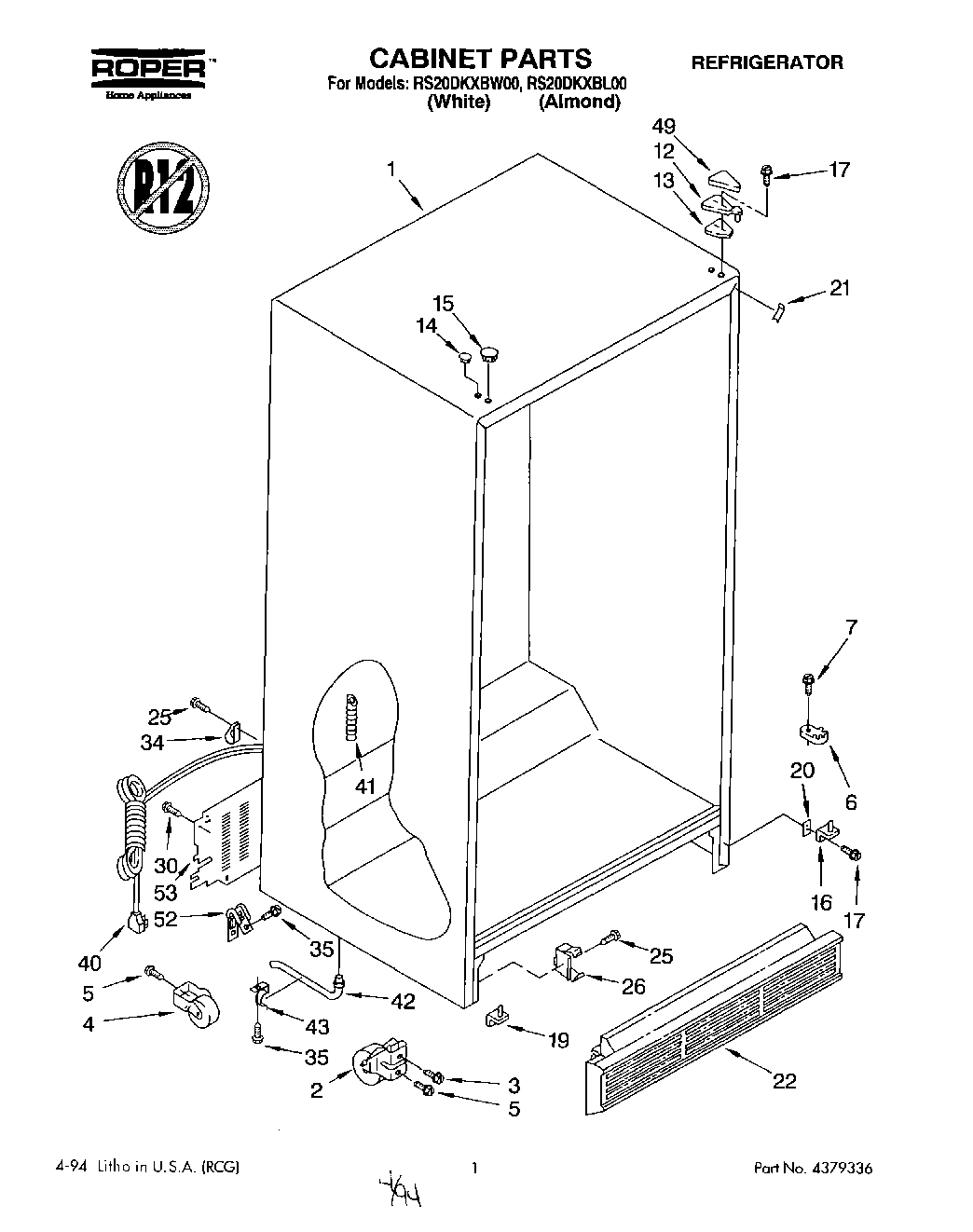

RS20DKXBW00 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Front Roller (2)
3	Screw, 5/16-24 x 1-1/4
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	Screw, 1/4-28 x 1/2 (2)
6	WPW10329686 Whirlpool Door Cam Black
7	WP489483 Whirlpool Screw
12	WP2196046 Whirlpool Refrigerator Door Hinge
13	Shim, Hinge Top
14	Hole Plug (Almond)
14	Hole, Plug (White)
15	Hole Plug (Almond)
15	Hole Plug (White)
16	Hinge Bottom (R.H) (Black)
17	WP999367 Whirlpool Refrigerator Screw
19	Hinge Bottom (L.H) (Black)
20	Shim, Bottom Hinge
21	Filler, Wrapper (White)
21	Filler, Wrapper (Almond)
22	Grille
25	WP489478 Whirlpool Refrigerator Screw
26	WP2155013 Whirlpool Refrigerator Clip
34	WP488366 Whirlpool Refrigerator Clamp
35	WP489464 Whirlpool Refrigerator Screw
40	Cord, Service
41	Drain Ferrule
42	WP1108438 Whirlpool Refrigerator Extension
43	WP1108439 Whirlpool Refrigerator Clip
49	1119787 Whirlpool Refrigerator Hinge Cover
52	549193 Whirlpool Refrigerator Power Clamp
53	WP2188756 Whirlpool Refrigerator Unit Cover
