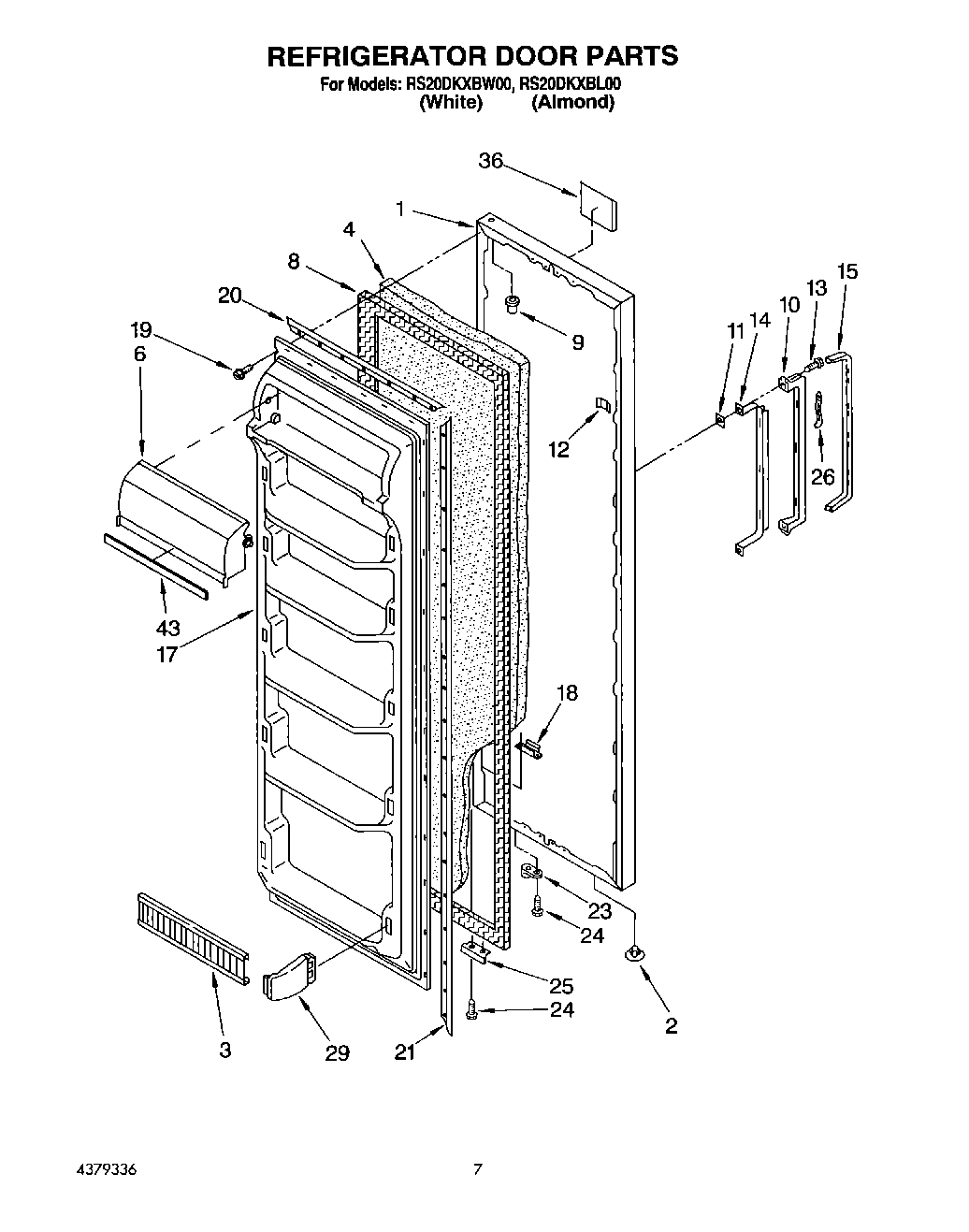

RS20DKXBW00 04 – REFRIGERATOR DOORadmin2025-04-26T12:48:30+00:00RS20DKXBW00 04 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| 1 | Refrigerator Door Panel (White) |
| 1 | Refrigerator Door Panel (Almond (Also Order Item 4)) |
| 2 | Hole Plug (6) (Almond) |
| 3 | Trim, Shelf (5) |
| 4 | WPL 876029 |
| 6 | Door, Compartment |
| 8 | 2188404A Whirlpool Refrigerator Door Gasket |
| 9 | Cap, Hinge Sleeve (2) |
| 10 | Handle |
| 11 | Shim |
| 12 | WP939101 Whirlpool Refrigerator Plate |
| 14 | Reinforcement, Handle |
| 15 | Insert, Handle |
| 17 | Panel, Interior Door |
| 18 | Tap, Plate |
| 19 | WP489069 Whirlpool Compactor Screw |
| 20 | Gasket Retainer, Top & Bottom |
| 21 | Retainer, Gasket |
| 23 | 4318165 Whirlpool Refrigerator Door Closure Cam Kit |
| 24 | WP999367 Whirlpool Refrigerator Screw |
| 25 | Bracket, Door Stop |
| 26 | Clip, Handle |
| 29 | Retainer, Door Trim |
| 36 | Nameplate |
| 43 | Trim, Compartment |
