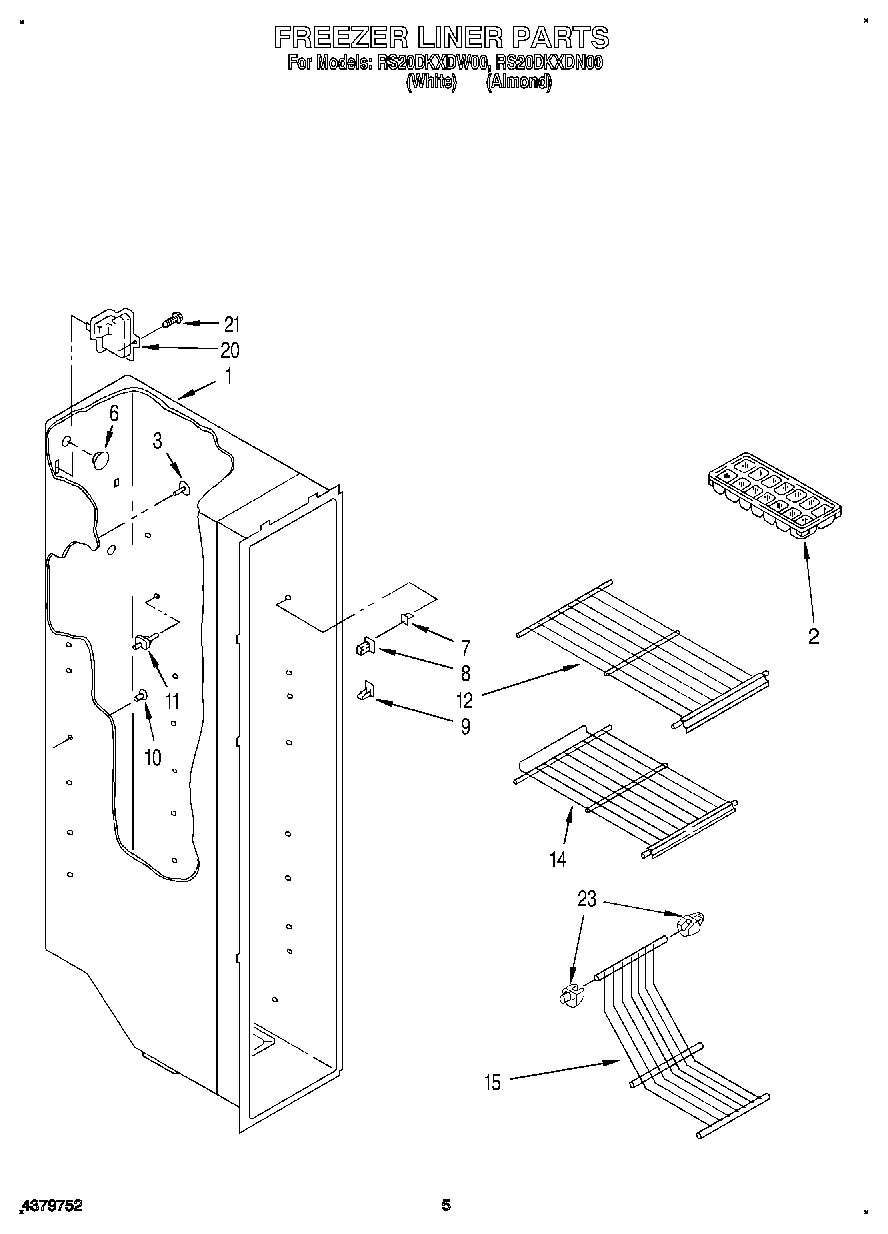

RS20DKXDW00 03 – FREEZER LINER

RS20DKXDW00 03 – FREEZER LINER

Written by

in

RS20DKXDW00 03 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2WP841180A Whirlpool Microwave Glass Turntable Tray
3WP941839 Whirlpool Refrigerator Button Plug
6WPL 655411
7Stud, Support
8Stud, Front R.S.
9Stud, Rear R.S.
10Grommet (8)
114388538 Whirlpool Refrigerator Stud Shelf Kit (White)
12Shelf
14Shelf (1)
14Shelf (2)
15Trivet
20Cover, Wiring
21WP488729 Whirlpool Refrigerator Door Screw
23819091 Whirlpool Refrigerator Shelf Stud
