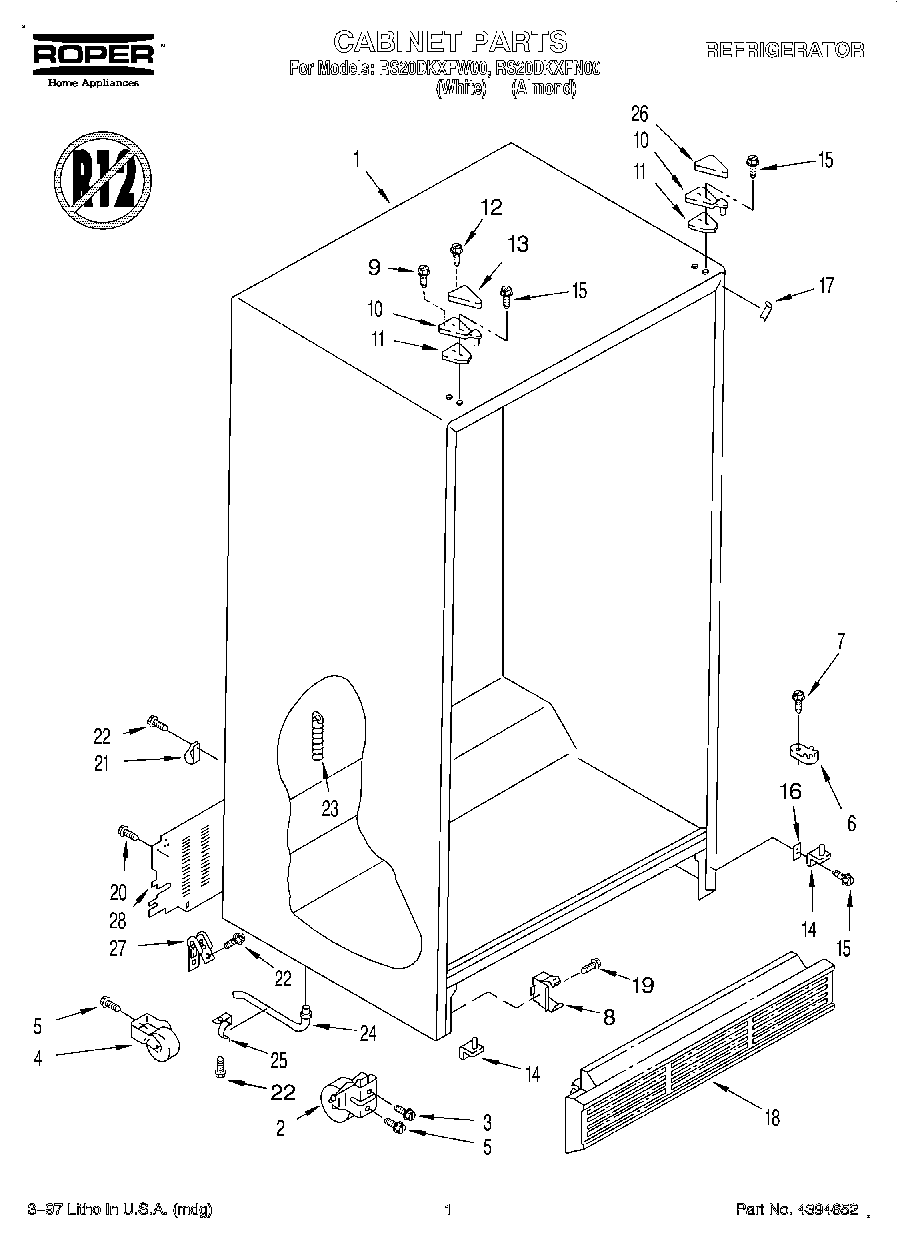

RS20DKXFN00 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WPW10329686 Whirlpool Door Cam Black
7	WP489483 Whirlpool Screw
8	WP2155013 Whirlpool Refrigerator Clip
9	WP488234 Whirlpool Air Conditioner Screw
10	WP2196046 Whirlpool Refrigerator Door Hinge
11	Shim, Hinge Top
12	Screw
13	WP1129262 Whirlpool Refrigerator Cover
14	8201707 Whirlpool Door Hinge
15	WP999367 Whirlpool Refrigerator Screw
16	WP2181911 Whirlpool Refrigerator Shim
17	Filler, Wrapper (White)
17	Filler, Wrapper (Almond)
18	Grille
19	WP489478 Whirlpool Refrigerator Screw
21	WP488366 Whirlpool Refrigerator Clamp
22	WP489464 Whirlpool Refrigerator Screw
23	W11566763 Whirlpool Fitting
24	WP1108438 Whirlpool Refrigerator Extension
25	WP1108439 Whirlpool Refrigerator Clip
26	1119787 Whirlpool Refrigerator Hinge Cover
27	549193 Whirlpool Refrigerator Power Clamp
28	WP2188756 Whirlpool Refrigerator Unit Cover
