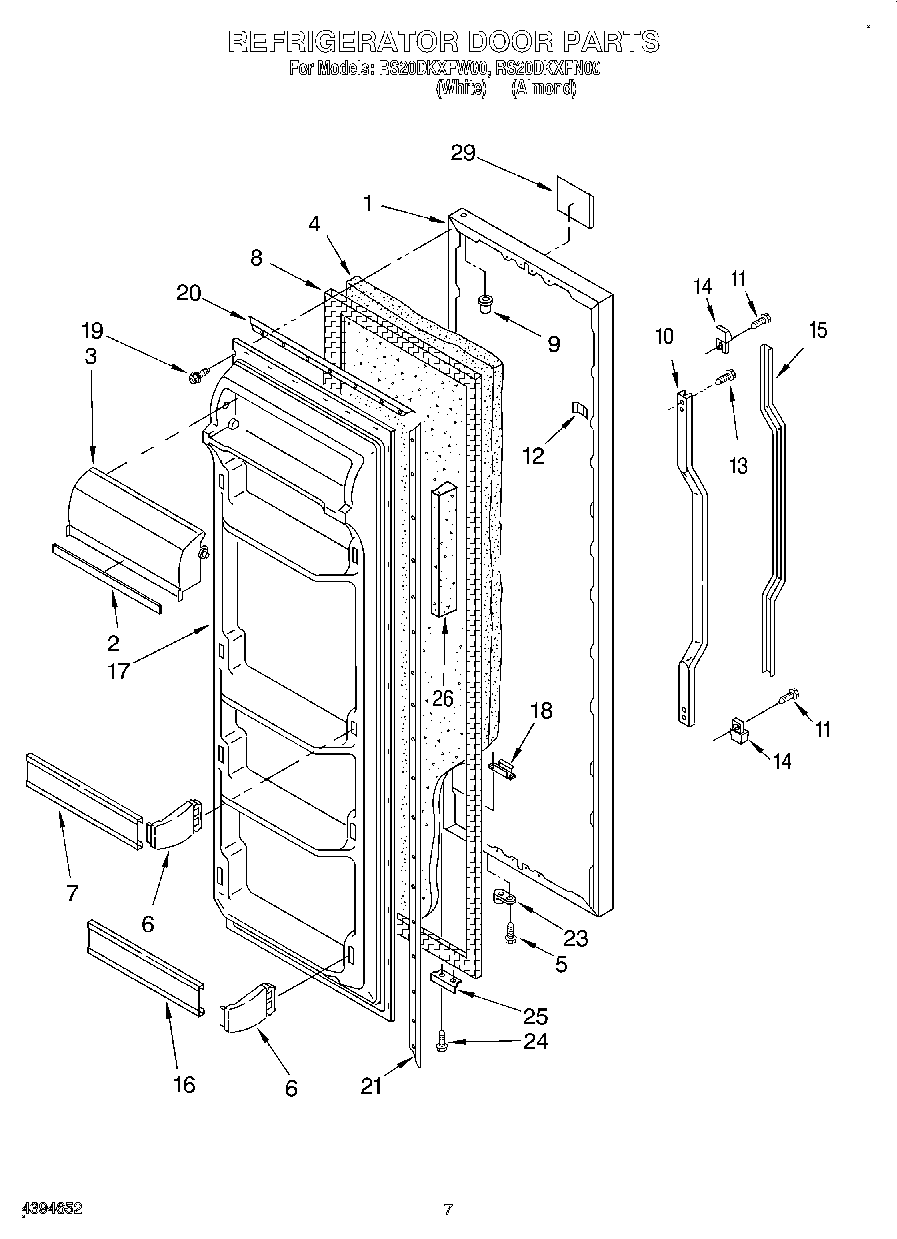

RS20DKXFN00 05 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door Panel (Also Order Item 20) (White)
1	Refrigerator Door Panel (Also Order Item 20) (Almond)
2	Trim, Compartment Door
3	Door, Compartment
4	WPL 876029
5	WP3400012 Whirlpool Refrigerator Screw
6	WP2196189 Whirlpool Shelf Retainer Bar
6	WP2196190 Whirlpool Shelf Retainer Bar Support
7	WP2182189 Whirlpool Door Shelf Bar
8	2188404A Whirlpool Refrigerator Door Gasket
9	Cap, Hinge Sleeve (2)
10	Handle, Insert
11	WP3400852 Whirlpool Refrigerator Screw
12	Screw Anchor (2)
13	WP489463 Whirlpool Refrigerator Screw
14	End Cap (Black)
15	Insert, Handle
16	WP2256010 Whirlpool Door Shelf Trim
17	Panel, Interior Door
18	Tap, Plate
19	WP489069 Whirlpool Compactor Screw
20	Gasket Retainer, Top & Bottom
21	Retainer, Gasket
23	4318165 Whirlpool Refrigerator Door Closure Cam Kit
24	WP489483 Whirlpool Screw
25	Bracket, Door Stop (Chrome)
26	Reinforcement, Shelf
29	Nameplate
