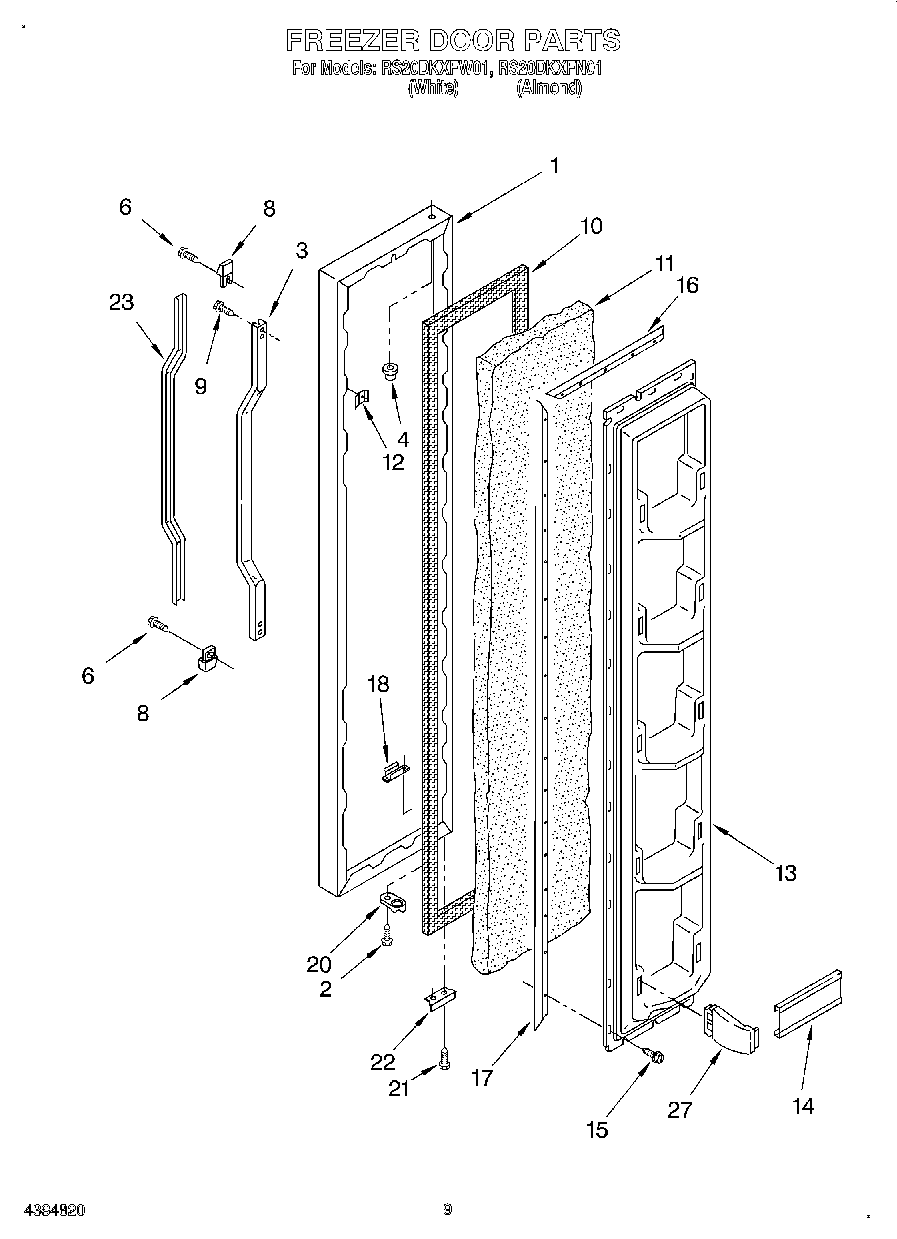

RS20DKXFN01 06 – FREEZER DOORadmin2025-04-26T12:50:03+00:00RS20DKXFN01 06 – FREEZER DOOR
Products
| Position | Product |
|---|
| 1 | Freezer Door Panel |
| 1 | Freezer, Door Panel (Almond) |
| 2 | WP3400012 Whirlpool Refrigerator Screw |
| 3 | Handle, Insert |
| 4 | Cap, Hinge Sleeve (2) |
| 6 | WP3400852 Whirlpool Refrigerator Screw |
| 8 | End Cap (Black) |
| 9 | WP489463 Whirlpool Refrigerator Screw |
| 10 | 2188405A Whirlpool Refrigerator Door Gasket |
| 11 | WPL 876029 |
| 12 | Screw Anchor (2) |
| 13 | Panel, Interior Door |
| 14 | Trim, Door Shelf |
| 15 | WP489069 Whirlpool Compactor Screw |
| 16 | Retainer, Gasket |
| 17 | Retainer, Gasket |
| 18 | Tap, Plate |
| 20 | 4318165 Whirlpool Refrigerator Door Closure Cam Kit |
| 21 | WP999367 Whirlpool Refrigerator Screw |
| 22 | Bracket, Door Stop (Chrome) |
| 23 | Insert, Handle |
| 27 | WP2196100 Whirlpool Shelf Retainer Bar Support |
