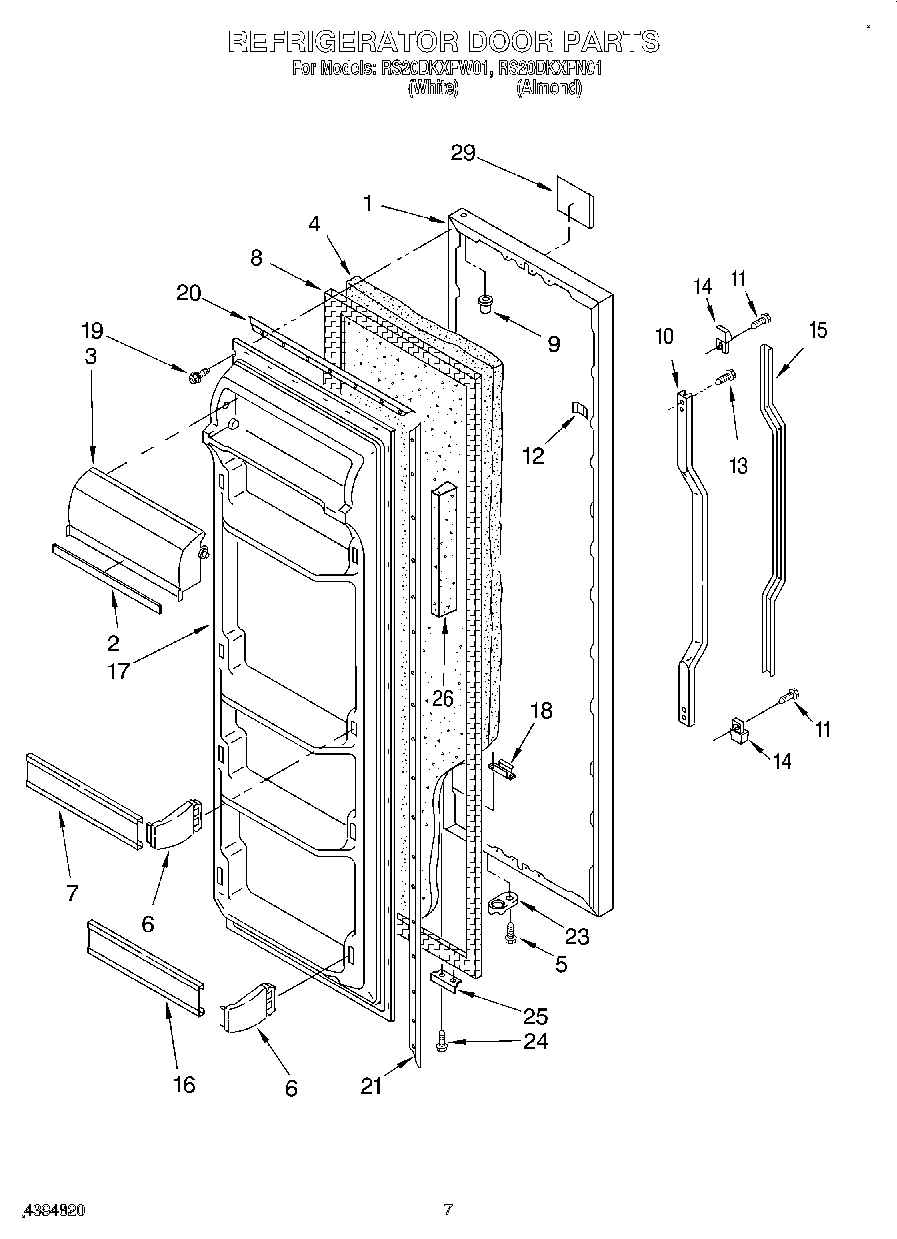

RS20DKXFW01 05 – REFRIGERATOR DOORadmin2025-04-26T12:49:50+00:00RS20DKXFW01 05 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| 1 | Refrigerator Door Panel (Also Order Item 20) (White) |
| 1 | Refrigerator Door Panel (Also Order Item 20) (Almond) |
| 2 | Trim, Compartment Door |
| 3 | Door, Compartment |
| 4 | WPL 876029 |
| 5 | WP3400012 Whirlpool Refrigerator Screw |
| 6 | WP2196189 Whirlpool Shelf Retainer Bar |
| 6 | WP2196190 Whirlpool Shelf Retainer Bar Support |
| 7 | WP2182189 Whirlpool Door Shelf Bar |
| 8 | 2188404A Whirlpool Refrigerator Door Gasket |
| 9 | Cap, Hinge Sleeve (2) |
| 10 | Handle, Insert |
| 11 | WP3400852 Whirlpool Refrigerator Screw |
| 12 | Screw Anchor (2) |
| 13 | WP489463 Whirlpool Refrigerator Screw |
| 14 | End Cap (Black) |
| 15 | Insert, Handle |
| 16 | WP2256010 Whirlpool Door Shelf Trim |
| 17 | Panel, Interior Door |
| 18 | Tap, Plate |
| 19 | WP489069 Whirlpool Compactor Screw |
| 20 | Gasket Retainer, Top & Bottom |
| 21 | Retainer, Gasket |
| 23 | 4318165 Whirlpool Refrigerator Door Closure Cam Kit |
| 24 | WP489483 Whirlpool Screw |
| 25 | Bracket, Door Stop (Chrome) |
| 26 | Reinforcement, Shelf |
| 29 | Nameplate |
