RS20EKXEW00 05 – REFRIGERATOR DOOR

RS20EKXEW00 05 – REFRIGERATOR DOOR

Written by

in

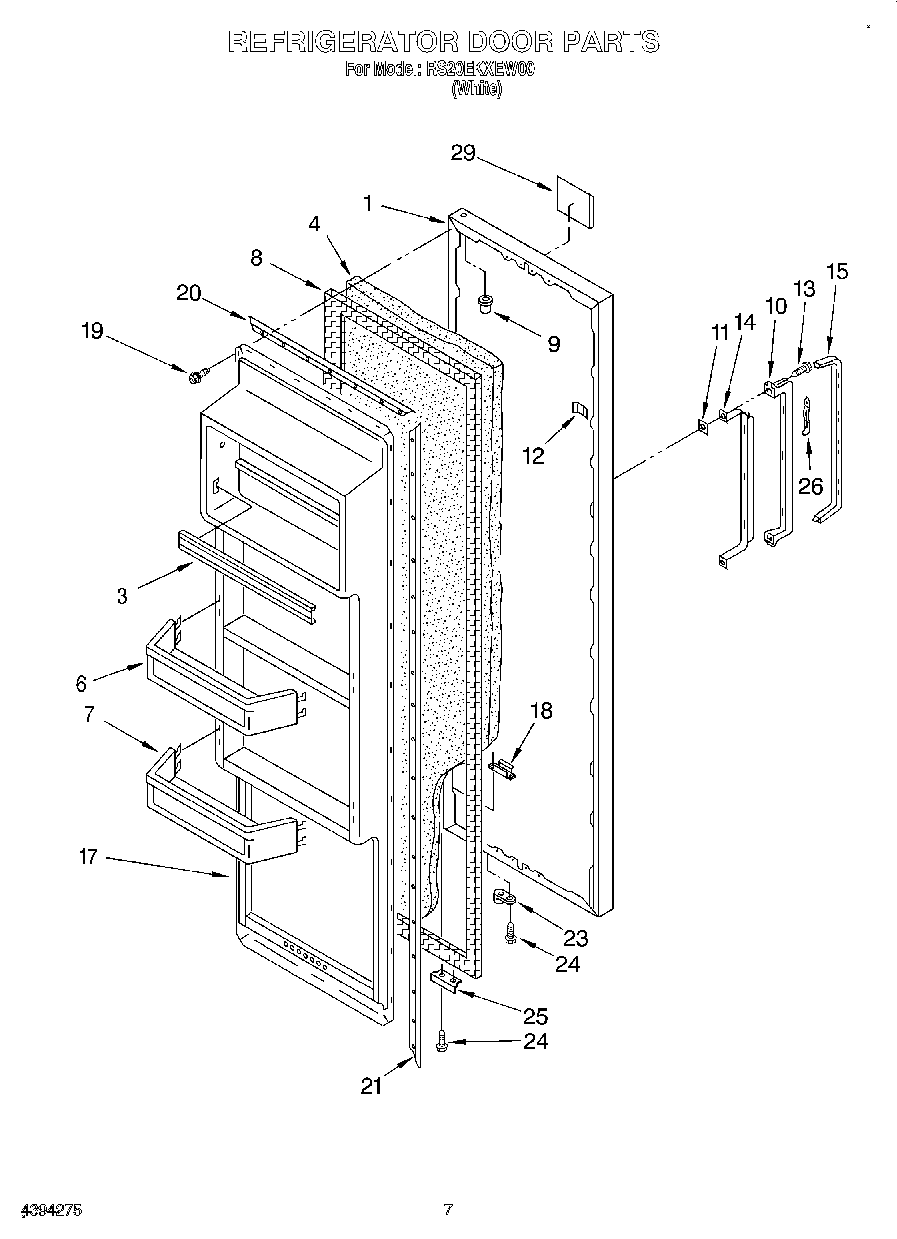

RS20EKXEW00 05 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door Panel (White)
3Trim, Shelf
4WPL 876029
6Shelf, Door
7Shelf, Door
82188404A Whirlpool Refrigerator Door Gasket
9Cap, Hinge Sleeve (2)
10Handle
11Shim
12WP939101 Whirlpool Refrigerator Plate
14Reinforcement, Handle
15Insert, Handle
17Panel, Interior
18Tap, Plate
19WP489069 Whirlpool Compactor Screw
20Gasket Retainer, Top & Bottom
21Retainer, Gasket
234318165 Whirlpool Refrigerator Door Closure Cam Kit
24WP999367 Whirlpool Refrigerator Screw
25Bracket, Door Stop
26Clip, Handle
29Nameplate
