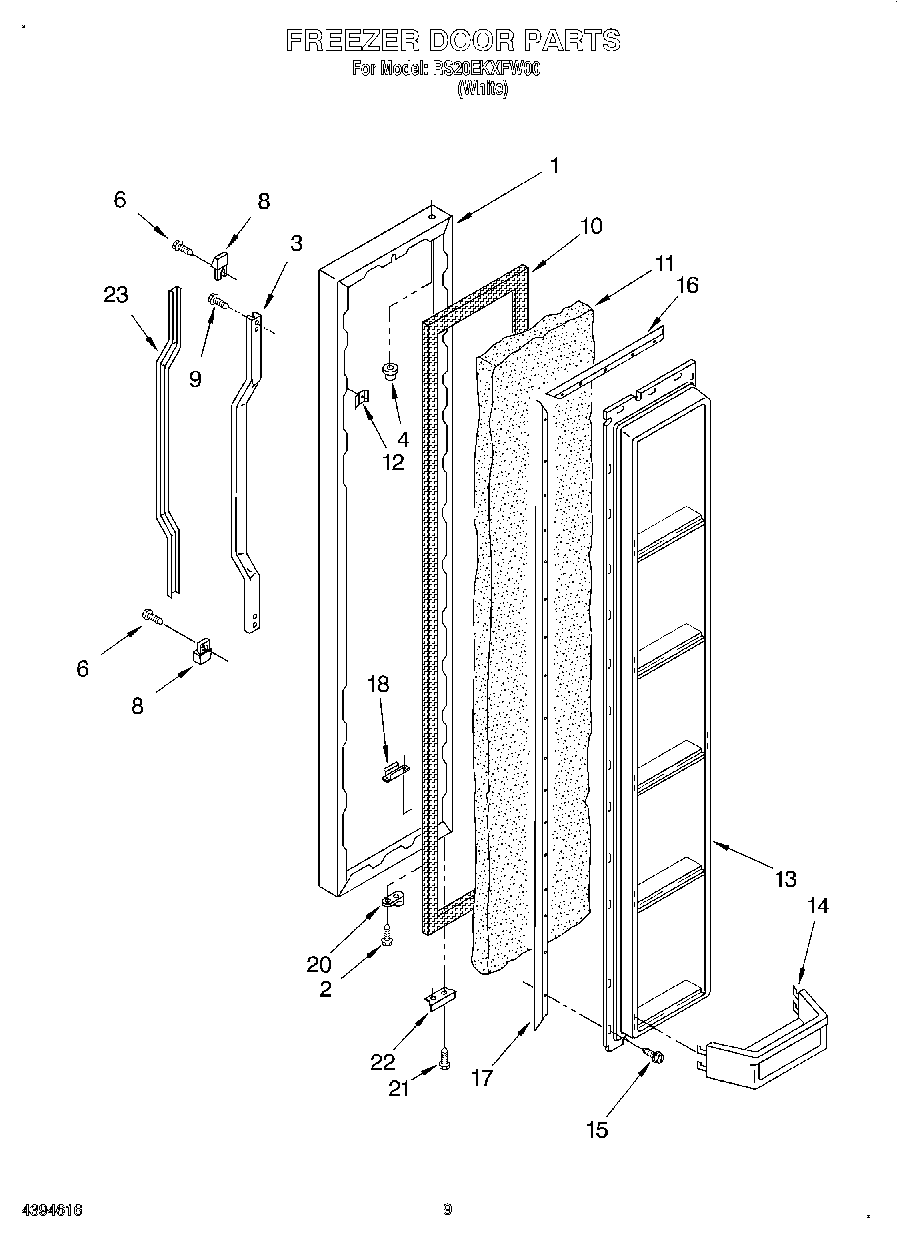

RS20EKXFW00 06 – FREEZER DOOR

Products

Position	Product
1	Freezer Door Panel
2	WP3400012 Whirlpool Refrigerator Screw
3	Handle, Insert
4	Cap, Hinge Sleeve (2)
6	WP3400852 Whirlpool Refrigerator Screw
8	End Cap (Black)
9	WP489463 Whirlpool Refrigerator Screw
10	2188405A Whirlpool Refrigerator Door Gasket
11	WPL 876029
12	Screw Anchor (2)
13	Panel, Interior Door
14	Trim, Shelf (5)
15	WP489069 Whirlpool Compactor Screw
16	Retainer, Gasket
17	Retainer, Gasket
18	Tap, Plate
20	4318165 Whirlpool Refrigerator Door Closure Cam Kit
21	WP489483 Whirlpool Screw
22	Bracket, Door Stop
23	Insert, Handle
