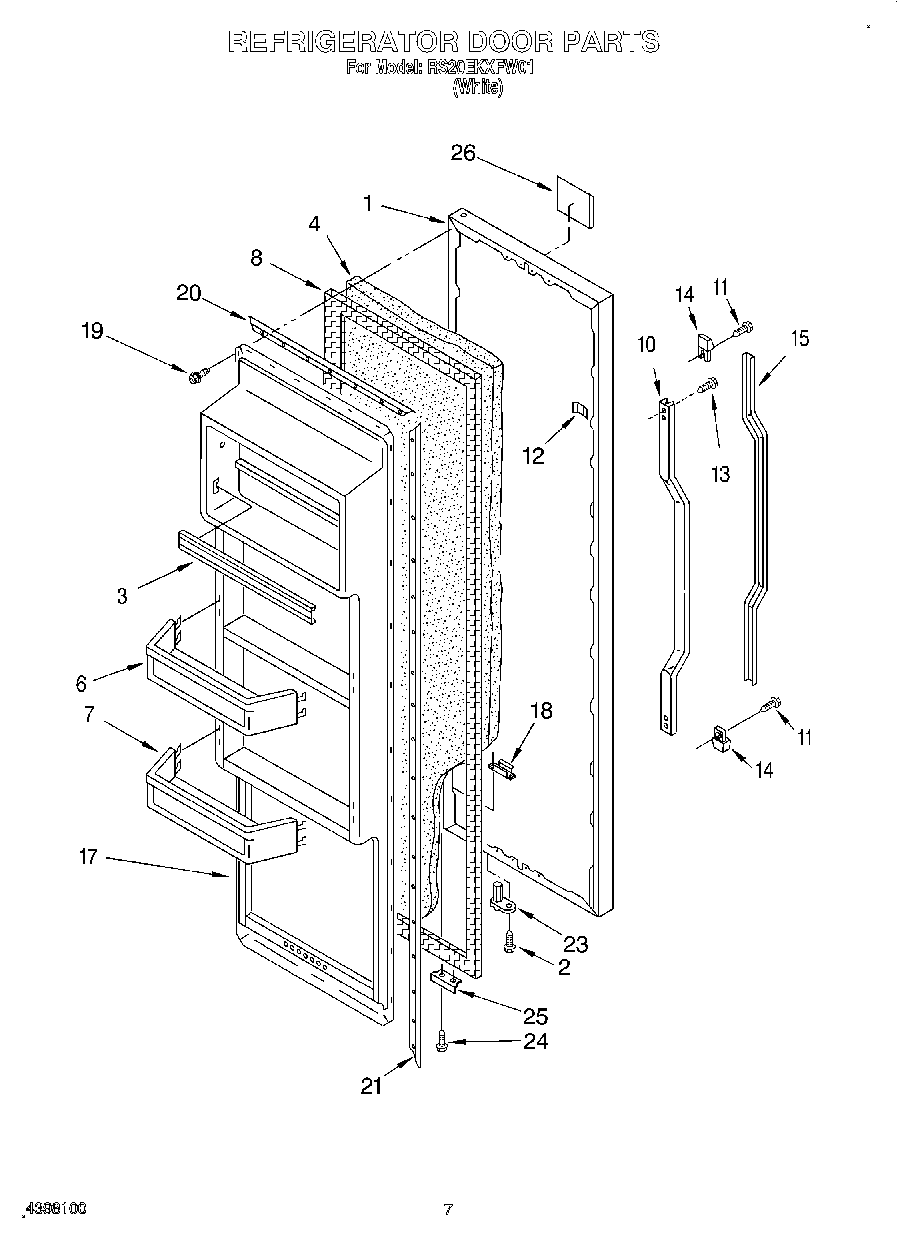

RS20EKXFW01 05 – REFRIGERATOR DOOR

RS20EKXFW01 05 – REFRIGERATOR DOOR

Written by

in

RS20EKXFW01 05 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door Panel (Also Order Item 20) (White)
2WP3400012 Whirlpool Refrigerator Screw
3Trim, Shelf
4WPL 876029
6Shelf, Door
7Shelf, Door
82188404A Whirlpool Refrigerator Door Gasket
10Handle, Insert
11WP3400852 Whirlpool Refrigerator Screw
12Screw Anchor (2)
13WP489463 Whirlpool Refrigerator Screw
14End Cap (Black)
15Insert, Handle
17Panel, Interior
18SCREW PLATE
19WP489069 Whirlpool Compactor Screw
20Gasket Retainer, Top & Bottom
21Retainer, Gasket
23WP2182179 Whirlpool Cam Closer
24WP489483 Whirlpool Screw
25Bracket, Door Stop (Chrome)
26Nameplate
