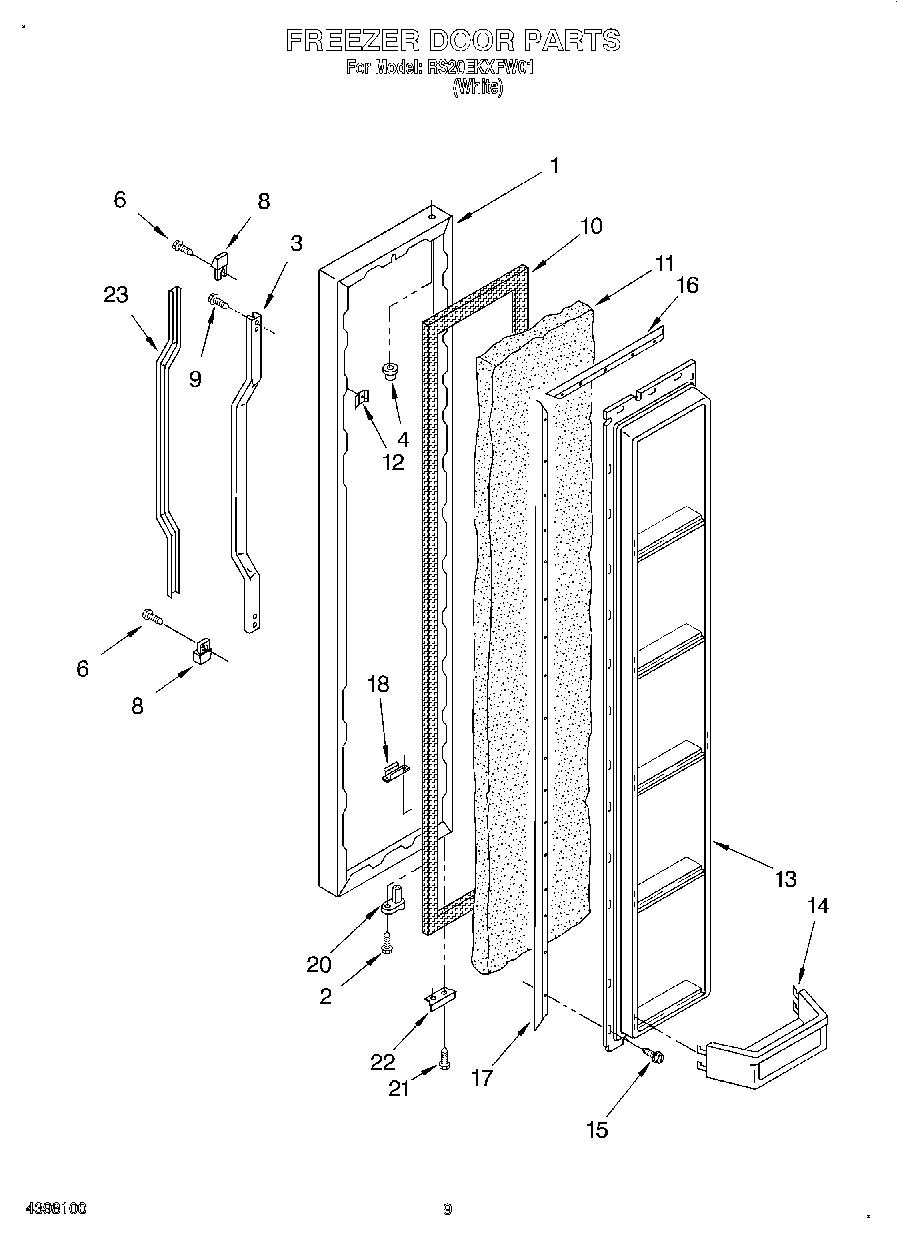

RS20EKXFW01 06 – FREEZER DOOR

RS20EKXFW01 06 – FREEZER DOOR

Written by

in

RS20EKXFW01 06 – FREEZER DOOR

Products

PositionProduct
1Freezer Door Panel (Also Order Item 11)
2WP3400012 Whirlpool Refrigerator Screw
3Handle, Insert
4Cap, Hinge Sleeve (2)
6WP3400852 Whirlpool Refrigerator Screw
8End Cap (Black)
9WP489463 Whirlpool Refrigerator Screw
102188405A Whirlpool Refrigerator Door Gasket
11WPL 876029
12Screw Anchor (2)
13Panel, Interior Door
14Trim, Shelf (5)
15WP489069 Whirlpool Compactor Screw
16Retainer, Gasket
17Retainer, Gasket
18SCREW PLATE
20WP2182179 Whirlpool Cam Closer
21WP489483 Whirlpool Screw
22Bracket, Door Stop (Chrome)
23Insert, Handle
