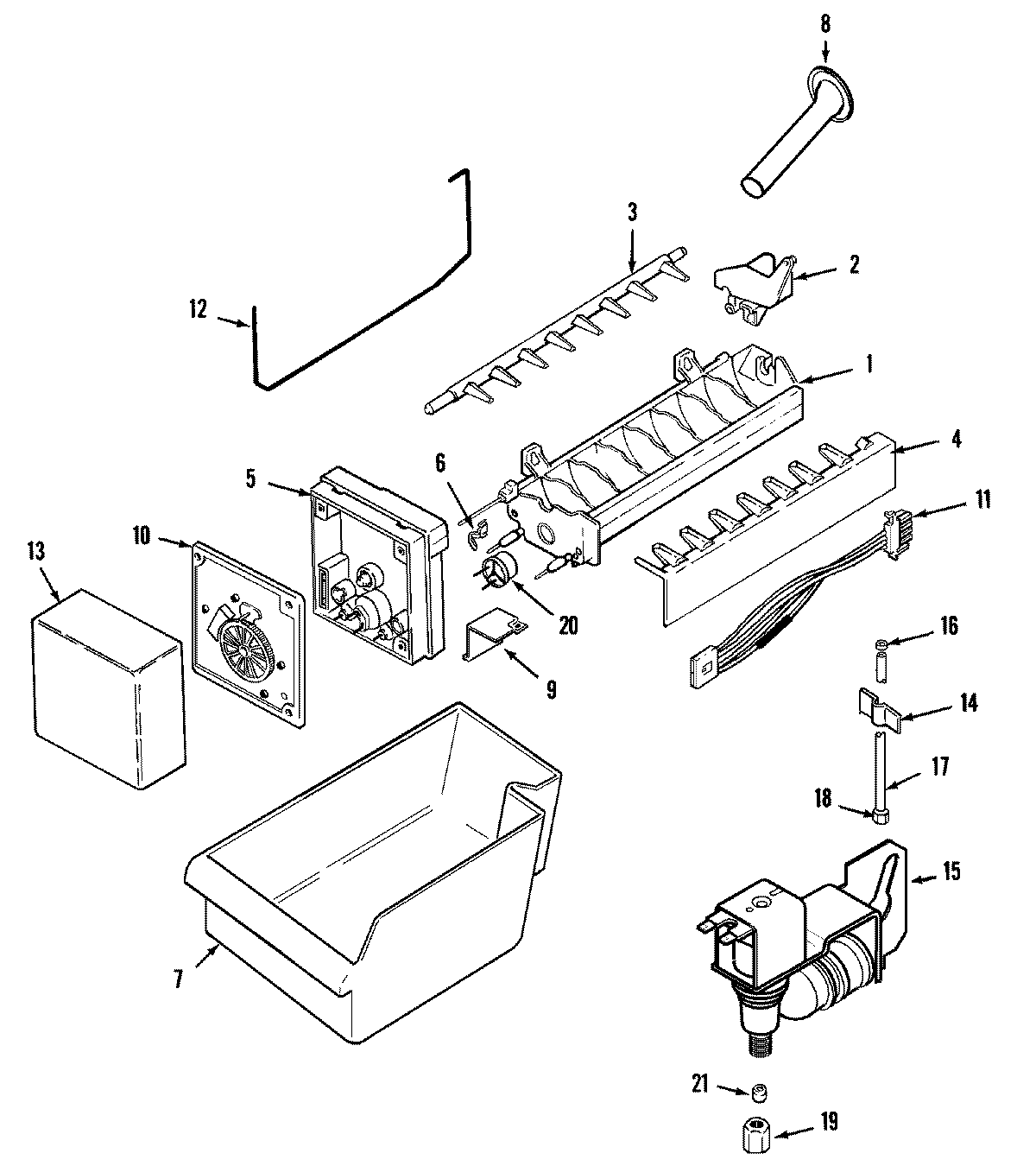

RS21011 08 – OPTIONAL ICE MAKER KIT-UKI2000AGX

Products

Position	Product
1	MAY Y06100047
1	WP99003172 Whirlpool Silicone L
2	WP628356 Whirlpool Refrigerator Fill Cup
3	WP627843 Whirlpool Refrigerator Ejector Arm
4	WP2182124 Whirlpool Refrigerator Stripper Arm
5	WP2195914 Whirlpool Refrigerator Ice Maker Housing
5	SCREW
6	WP2315522 Whirlpool Refrigerator Clip
7	MAY 61001886
8	MAY 61003571
9	MAY 95108-1
9	BRACKET, MODULE & HEATER
10	MAY 61001014
10	MAY 400021-1
11	MAY 61003576
11	MAY 61003573
12	MAY 68112-1
13	MAY 61003019
14	MAY 61001889
14	W10833902 Whirlpool Refrigerator Clamp
14	SCREW
15	MAY 61003574
15	MAY 61002819
16	WPM0114003 Whirlpool Microwave Speed Clip Clamp
17	MAY 67579-26
18	WP627018 Whirlpool Refrigerator Nut
19	WP245183 Whirlpool Nut
20	MAY 95093-1
20	WP627985 Whirlpool Icemaker Cycling Thermostat
21	WP487627 Whirlpool Refrigerator Sleeve
