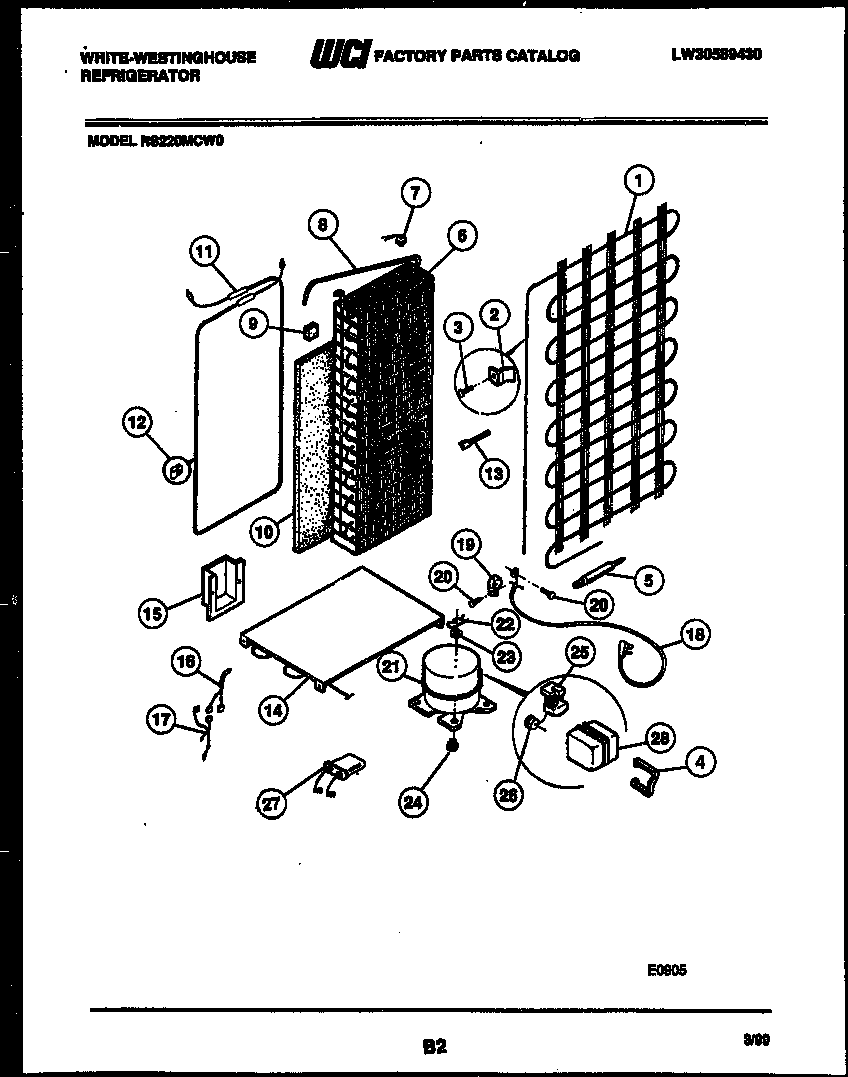

RS220MCF0 10 – SYSTEM AND AUTOMATIC DEFROST PARTS

RS220MCF0 10 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

RS220MCF0 10 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*32482WCI 5300189379
1WCI 5303007521
2BRACKET, MOUNTIN, CONDENSER, (4)
3AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
45303006412 Frigidaire Refrigerator Cover Mounting Strap
55303305677 Frigidaire Replacement Filter Dryer Filters
6ATUBE-INLET (NOT ILLUSTRATED)
6WCI 5303916605
75303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
8BWCI 5308016629
8WCI 5308017565
8A5308000133 Frigidaire Refrigerator Clamp
9WCI 5308000628
10WCI 5303001235
11WCI 5303007568
12WCI 5308002777
135308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
14CWCI 5308002780
14WCI 5308017112
14D218843801 Frigidaire Refrigerator Screw
14B5308000039 Frigidaire Refrigerator Screw
14AWCI 5308002782
15WCI 5303001197
16WCI 5303015135
17ACLIP-CABLE
17BWCI 5308000132
17WCI 5308009616
18CORD-ELECTRIC POWER
195303001199 Frigidaire Refrigerator Wiring Harness Clamp
205304455651 Frigidaire Refrigerator Screw
21COMPRESSOR WITH ELECTRICALS
22CLIP – COMPRESSOR MTG
23WASHER-COMPR MTG
24218513300 Frigidaire Refrigerator Compressor Mount Grommet
25RELAY-TL
26WCI 5308017526
27CAPACITOR
