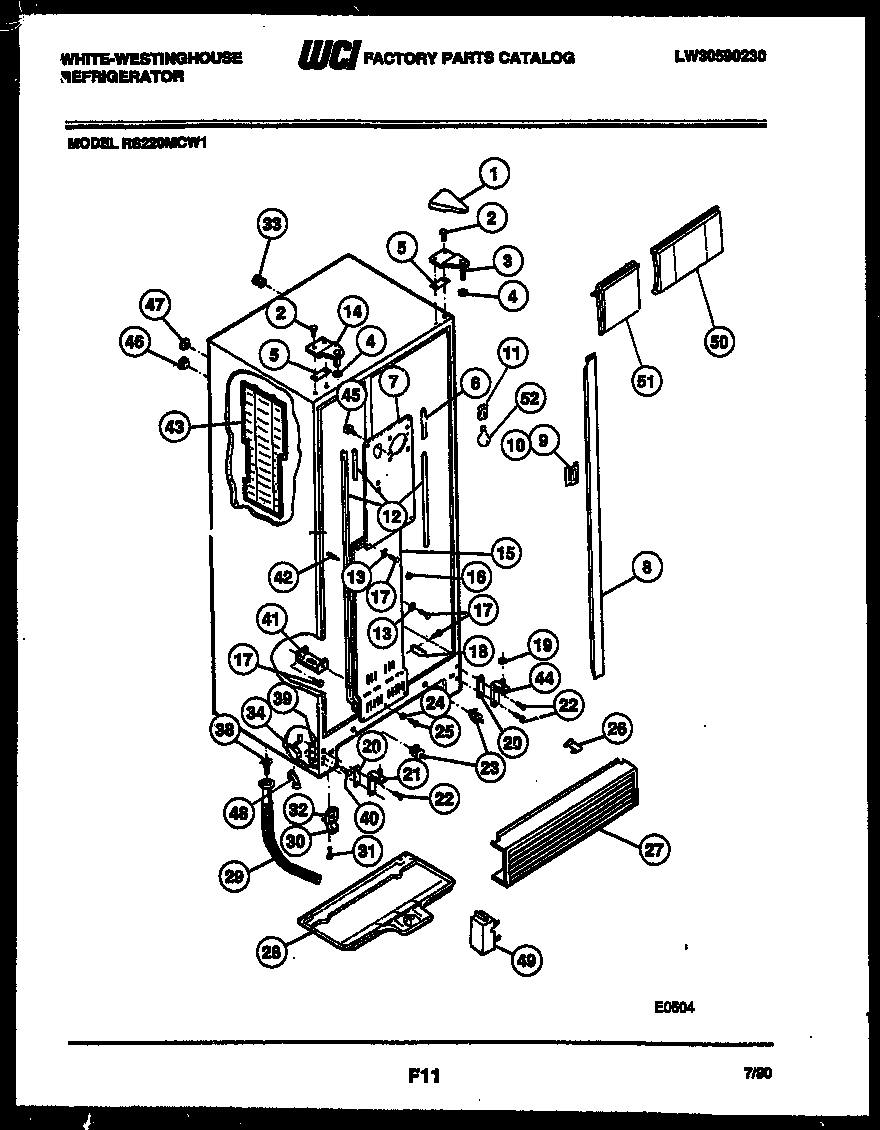

RS220MCF1 04 – CABINET PARTS

RS220MCF1 04 – CABINET PARTS

Written by

in

RS220MCF1 04 – CABINET PARTS

Products

PositionProduct
*31376WCI 5303001213
1WCI 5303001666
2241710601 Frigidaire Refrigerator Screw
3WCI 5308012934
4WCI 5308000186
5SHIM – UPPER HINGE
6WCI 5303001219
7ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
7COVER-COIL UPPER
8WCI 5303916448
8WCI 5303916444
8WCI 3916446
8WCI 3916445
8WCI 5303916447
9WCI 5300169100
10WCI 5303001281
11218906802 Frigidaire Light Lamp Socket
11AWCI 08015577
12WCI 5303001233
13WASHER-NYLON,3/16 X 5/8 OD
14WCI 5303001062
14ATAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
15A5303208309 Frigidaire Refrigerator Plug Hole
15COVER-COIL LOWER
16WCI 5303001231
175304455650 Frigidaire Refrigerator Screw
18WCI 5308017447
19WASHER, .28 X .62 X .19, NYLON
20SHIM-BTM HINGE (3)
21AWCI 5308010374
21HINGE-BOTTOM LS
22SCREW-HINGE MTG (2) (NON-ILLUSTRATED)
235303289051 Frigidaire Refrigerator Light Switch
24WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
25WCI 5303001230
26CLIP, GRILLE (2)
27WCI 5317459704
28WCI 5303001026
29WCI 5303209723
30ROLLER-FRONT (2)
31SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
32SCREW-ROLLER ADJ (2) (NON-ILLUSTRATED)
33TUBE-RUBBER
34WCI 5300077210
38WCI 5308000853
39WCI 5303001273
40WCI 5308000013
41WCI 5308000738
42BWCI 5308000809
42AWCI 5308000808
42WCI 5303001250
43DIVIDER-ICEMAKER
43BSCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X 1-5/8 (NOTILLUSTRATED)
43ASUPPORT-ICE ACCESS DR
44HINGE-BOTTOM
45SUPPORT-COIL COVER
46WCI 5303001286
47WCI 5303001287
48WCI 5308010289
48ANUT, 7/16 X 20, NYLON
49BPUSH NUT-SCREW
49COVER-BOTTOM HINGE
50WCI 5303207095
50AWCI 5308002732
51WCI G182527-01
52316538904 Frigidaire Oven Lamp Light
