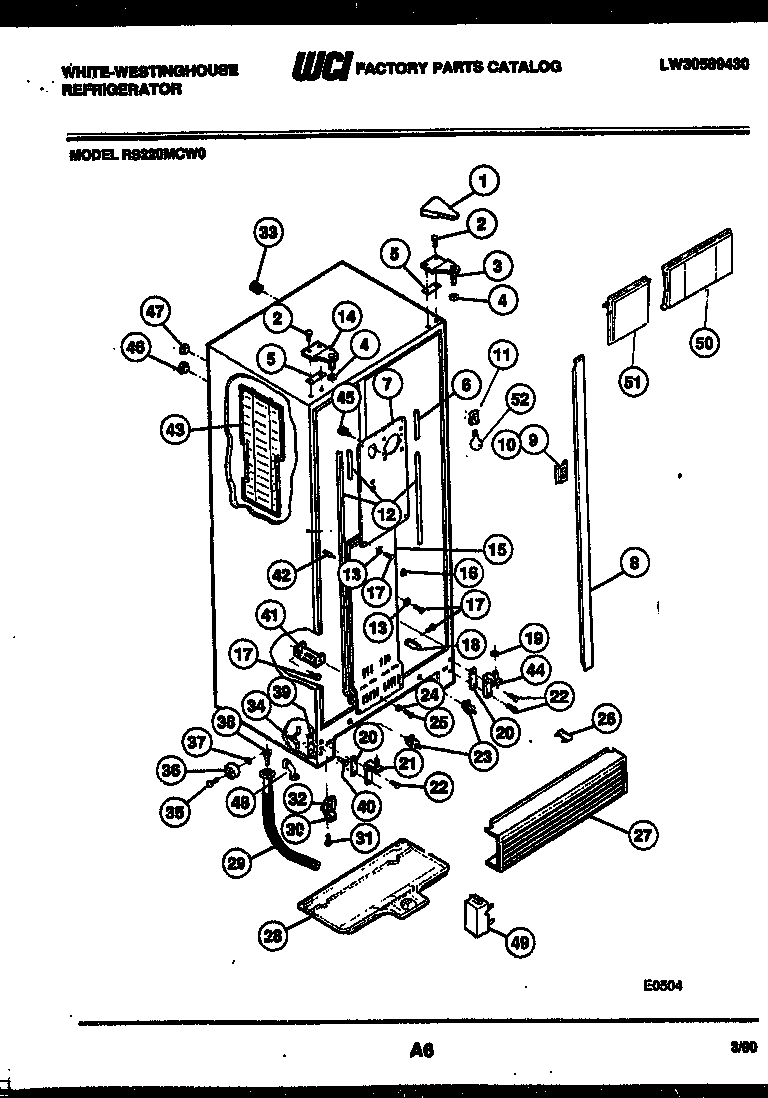

RS220MCH0 04 – CABINET PARTS

Products

Position	Product
1	COVER – HINGE-WHEAT
2	241710601 Frigidaire Refrigerator Screw
3	WCI 5308012934
4	WCI 5308000186
5	SHIM – UPPER HINGE
6	WCI 5303001219
7A	NUT-SPEED (2)
7	COVER-COIL UPPER
8	WCI 3916446
9	WCI 5308000820
10	WCI 5303001281
11A	WCI 08015577
11	218906802 Frigidaire Light Lamp Socket
12	WCI 5303001233
13	WASHER-NYLON,3/16 X 5/8 OD
14A	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
14	WCI 5303001062
15A	WCI 5303203044
15	COVER-COIL LOWER
16	WCI 5303001231
17	5304455650 Frigidaire Refrigerator Screw
18	WCI 5308017447
19	WASHER, .28 X .62 X .19, NYLON
20	SHIM-BTM HINGE (3)
21	HINGE-BOTTOM LS
21A	WCI 5308010374
22	SCREW-HINGE MTG (2) (NON-ILLUSTRATED)
23	5303289051 Frigidaire Refrigerator Light Switch
24	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
25	WCI 5303001230
26	CLIP, GRILLE (2)
27	WCI 5317459704
28	WCI 5303001026
29	241957901 Frigidaire Refrigerator Tube-Drain
30	ROLLER-FRONT (2)
31	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
32	SCREW-ROLLER ADJ (2) (NON-ILLUSTRATED)
33	TUBE-RUBBER
34	WCI 5300077210
35	WCI 5308000266
36	WCI 5303001030
37	Nut,push-on
38	WCI 5308000853
39	WCI 5303001273
40	WCI 5308000013
41	WCI 5308000738
42A	WCI 5308000808
42	WCI 5303001250
42B	WCI 5308000809
43A	SUPPORT-ICE ACCESS DR
43B	SCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X 1-5/8 (NOTILLUSTRATED)
43	DIVIDER-ICEMAKER
44	HINGE-BOTTOM
45	SUPPORT-COIL COVER
46	WCI 5303001286
47	WCI 5303001287
48	WCI 5308010289
48A	NUT, 7/16 X 20, NYLON
49	COVER-BOTTOM HINGE
49B	PUSH NUT-SCREW
50	WCI 5303207095
50A	WCI 5303001213
51	WCI G182527-01
52	316538904 Frigidaire Oven Lamp Light
