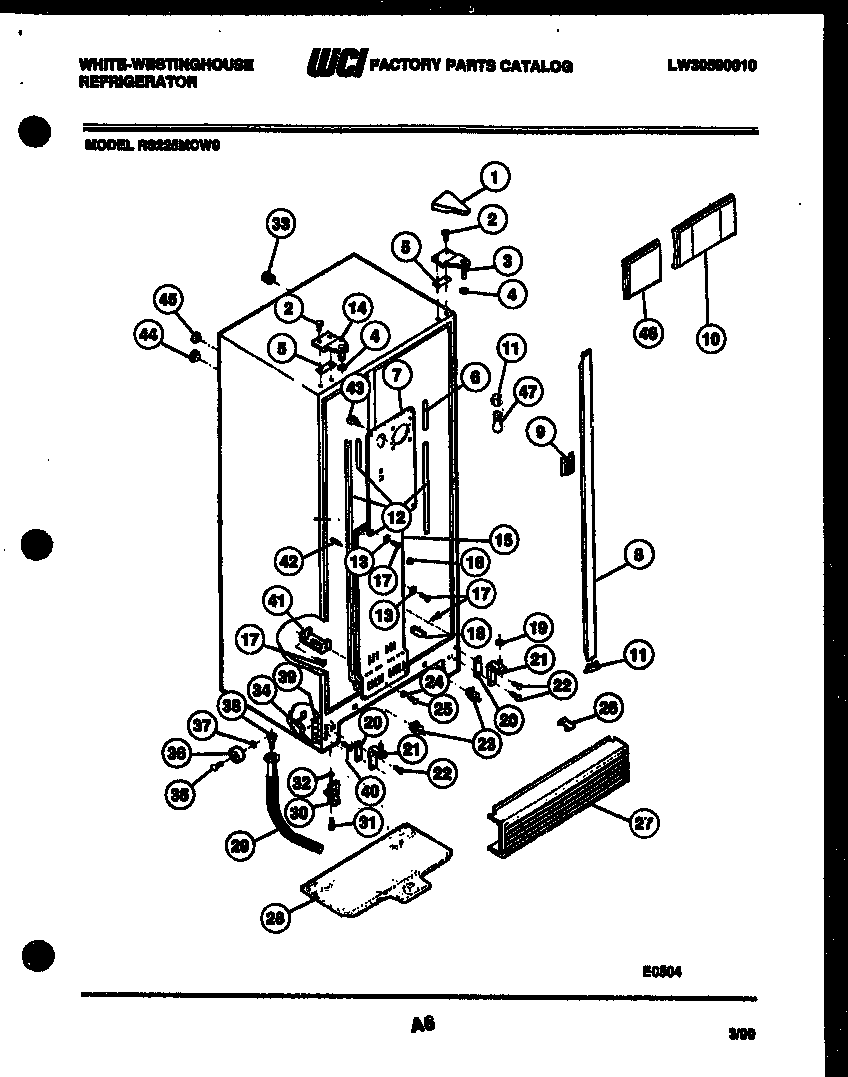

RS225MCH0 04 – CABINET PARTS

Products

Position	Product
*26519	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
*26519	WCI 5303001288
*26518	CLIP-WIRING HARNESS
*26518	WCI 5303001213
*26519	5304509705 Frigidaire Refrigerator Grommet
1	COVER – HINGE-WHEAT
2	241710601 Frigidaire Refrigerator Screw
3	WCI 5308012934
4	WCI 5308000186
5	SHIM – UPPER HINGE
6	WCI 5303001219
7	WCI 5303006543
7A	NUT-SPEED (2)
8	WCI 3916446
9	WCI 5300169100
9	WCI 5303001281
10	WCI 5303207095
11	218906802 Frigidaire Light Lamp Socket
12	WCI 5303001233
13	WASHER-NYLON,3/16 X 5/8 OD
14	WCI 5303001062
15A	WCI 5303203044
15	WCI 5308017223
16	WCI 5303001231
17	5304455650 Frigidaire Refrigerator Screw
18	WCI 08017447
19	WASHER, .28 X .62 X .19, NYLON
20	SHIM-BTM HINGE (3)
21	HINGE-BOTTOM
22	SCREW-HINGE MTG (2) (NON-ILLUSTRATED)
23	5303289051 Frigidaire Refrigerator Light Switch
23A	CLIP-CABLE
24	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
25	WCI 5303001230
26	CLIP, GRILLE (2)
27	WCI 5317154002
28	WCI 5303001026
29	241957901 Frigidaire Refrigerator Tube-Drain
30	ROLLER-FRONT (2)
31	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
32	SCREW-ROLLER ADJ (2) (NON-ILLUSTRATED)
33	TUBE-RUBBER
34	WCI 5300077210
35	WCI 5308000266
36	WCI 5303001030
37	Nut,push-on
38	WCI 5308000853
39	WCI 5303001273
40	WCI 5308000013
41	WCI 5308000738
42	WCI 5303001250
43	SUPPORT-COIL COVER
44	WCI 5303001286
45	WCI 5303001287
46	WCI 5303207094
47	316538904 Frigidaire Oven Lamp Light
