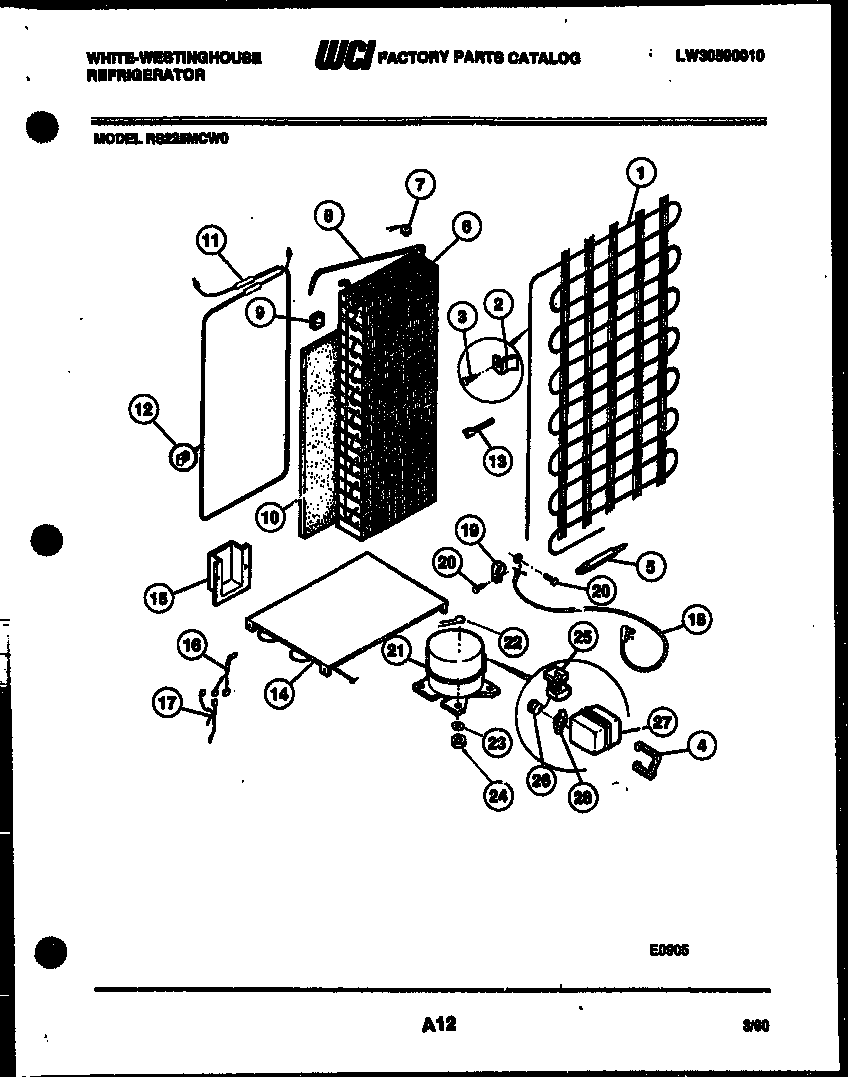

RS225MCH0 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*26531	WCI 5308009619
*26531	WCI 5300189379
1	WCI 5303007521
2	WCI 530800296
3A	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
4	5303006412 Frigidaire Refrigerator Cover Mounting Strap
5	5303305677 Frigidaire Replacement Filter Dryer Filters
6	WCI 5303916605
6A	TUBE-INLET (NOT ILLUSTRATED)
7	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
8A	5308000133 Frigidaire Refrigerator Clamp
8	WCI 5308017565
9	WCI 5308000828
10	WCI 5303001235
11	WCI 5303007568
12	WCI 5308002777
13	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
14B	5308000039 Frigidaire Refrigerator Screw
14D	218843801 Frigidaire Refrigerator Screw
14C	WCI 5308002780
14A	WCI 5308002782
14	WCI 5308017112
15	WCI 5303001197
16	WCI 5303015098
17	WCI 5308009616
18	CORD-ELECTRIC POWER
19	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
20	5304455651 Frigidaire Refrigerator Screw
21	WCI 5303916016
22	CLIP - COMPRESSOR MTG
23	WASHER-COMPR MTG
24	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	WCI 5303007176
26	WCI 5303007527
28	CLIP-OVERLOAD
