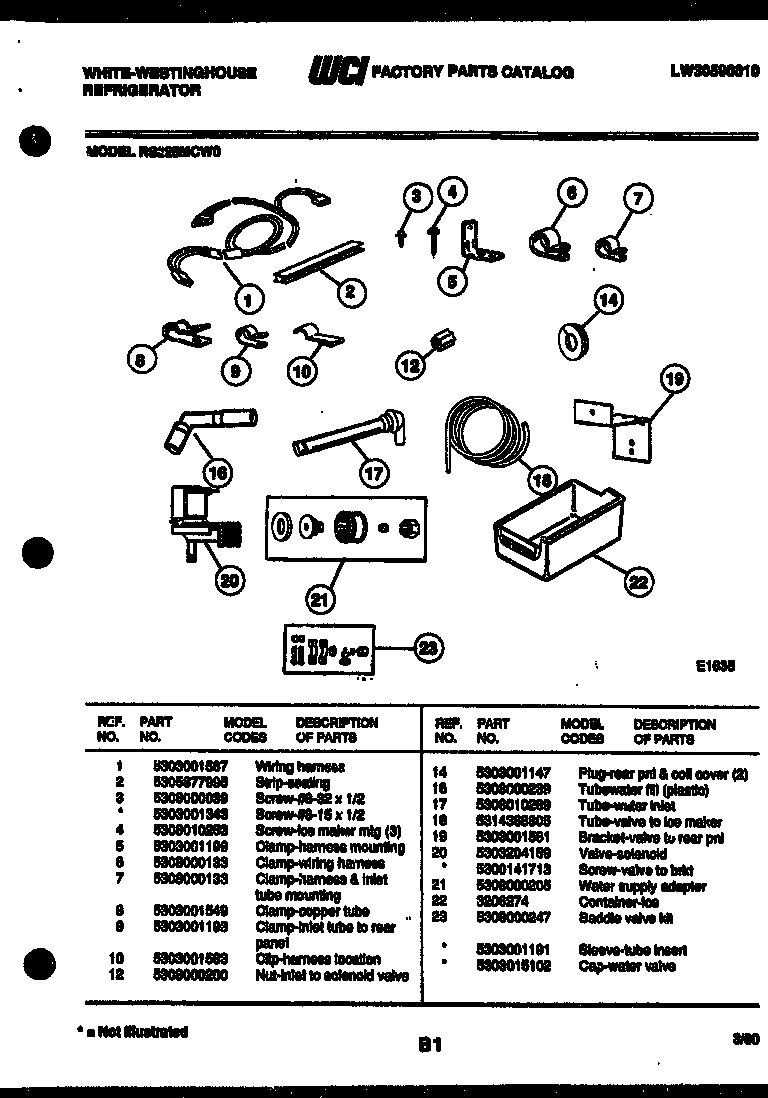

RS225MCV0 09 – ICE MAKER INSTALLATION PARTS

Products

Position	Product
*26538	WCI 5303001191
*26538	CAP-WATER VALVE (NON-ILLUSTRATED)
1	WCI 5303001567
2	5305877995 Frigidaire Refrigerator P-1 Sealing Strip
3	5308000039 Frigidaire Refrigerator Screw
3A	5304455651 Frigidaire Refrigerator Screw
5	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
7	5308000133 Frigidaire Refrigerator Clamp
8	5304455846 Frigidaire Refrigerator Clamp
9	5303001193 Frigidaire Refrigerator Clamp
10	WCI 5303001563
12	NUT, 7/16 X 20, NYLON
14	5303001147 Frigidaire Refrigerator Plug-Harness Hole
16	EXTENSION-INLET TUBE, S X S & SD ONLY
17	215456100 Frigidaire Refrigerator Water Inlet Tube
18	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
19	BRACKET-VALVE TO REAR PNL
20	WCI 5303204159
20A	5304455852 Frigidaire Refrigerator Screw
21	WCI 5308000205
22	5303212918 Frigidaire Refrigerator Cont
23	WCI 5308000247
