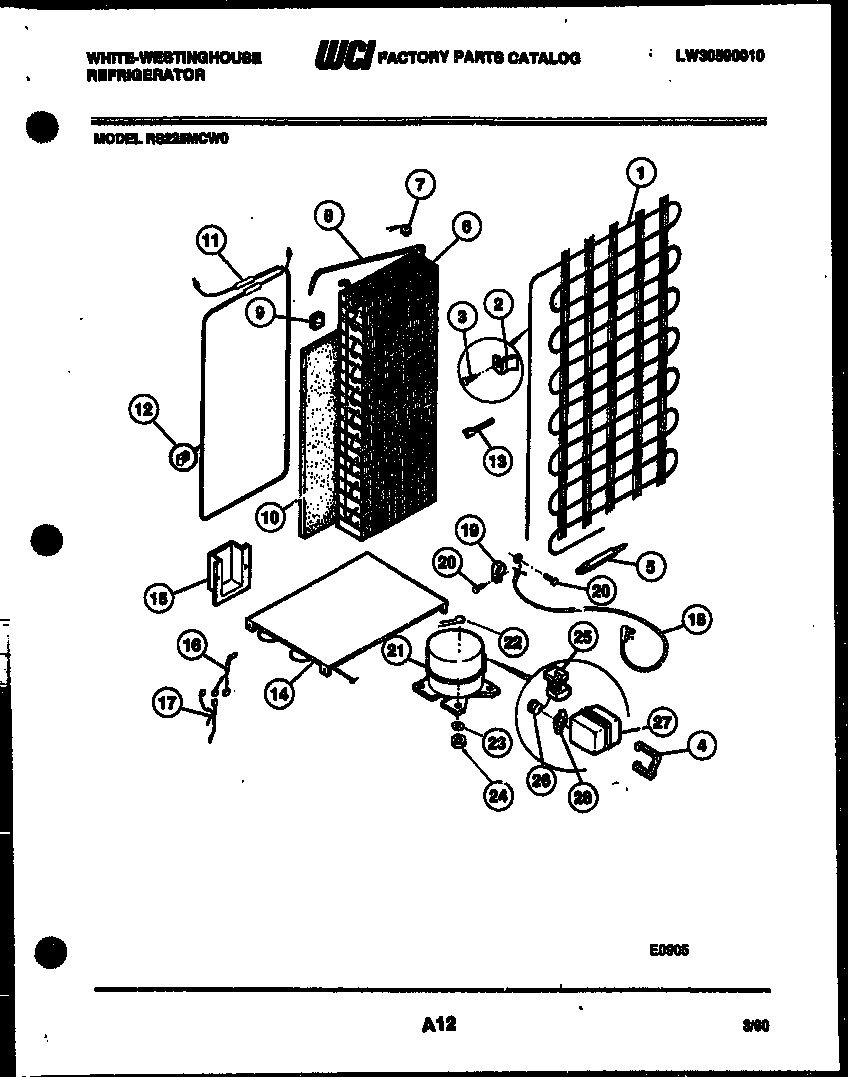

RS225MCW0 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

RS225MCW0 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

RS225MCW0 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*26531WCI 5308009619
*26531WCI 5300189379
1WCI 5303007521
2WCI 530800296
3AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
45303006412 Frigidaire Refrigerator Cover Mounting Strap
55303305677 Frigidaire Replacement Filter Dryer Filters
6WCI 5303916605
6ATUBE-INLET (NOT ILLUSTRATED)
75303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
8A5308000133 Frigidaire Refrigerator Clamp
8WCI 5308017565
9WCI 5308000828
10WCI 5303001235
11WCI 5303007568
12WCI 5308002777
135308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
14B5308000039 Frigidaire Refrigerator Screw
14D218843801 Frigidaire Refrigerator Screw
14CWCI 5308002780
14AWCI 5308002782
14WCI 5308017112
15WCI 5303001197
16WCI 5303015098
17WCI 5308009616
18CORD-ELECTRIC POWER
195303001199 Frigidaire Refrigerator Wiring Harness Clamp
205304455651 Frigidaire Refrigerator Screw
21WCI 5303916016
22CLIP – COMPRESSOR MTG
23WASHER-COMPR MTG
24218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 5303007176
26WCI 5303007527
28CLIP-OVERLOAD
