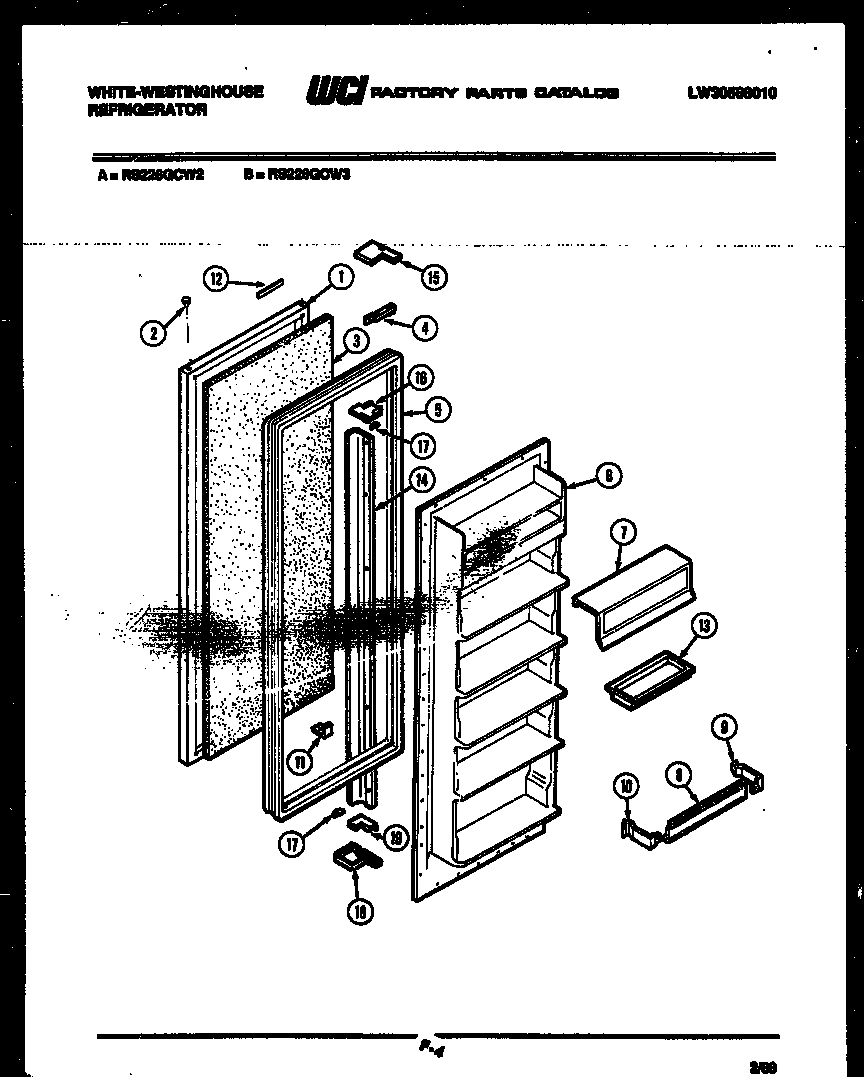

RS226GCD2 03 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1A	WCI G152308-01
1	WCI G180386-11
2A	BEARING, HINGE (3)
2	WCI G183139
3	WCI G89643
4	DOOR CLOSER
4A	WCI G169729
5	WCI G180551-02
6	WCI G179991-01
7	WCI G179976-01
8	WCI G490079-12
9	SUPPORT-RS (5)
10	SUPPORT-LS (5)
11	BUMPER-LIGHT SW.
11A	5304455651 Frigidaire Refrigerator Screw
12	FRAME-NAMEPLATE
12B	LABEL-NAMEPLATE (NON-ILLUSTRATED)
12A	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
13	5308000716 Frigidaire Refrigerator Dish
14A	WCI G185566
14	WCI G177141-09
14	WCI R900621
15	CAP
16	TRIM, TOP
17	CLIP
18	CAP
19	TRIM, BTM
