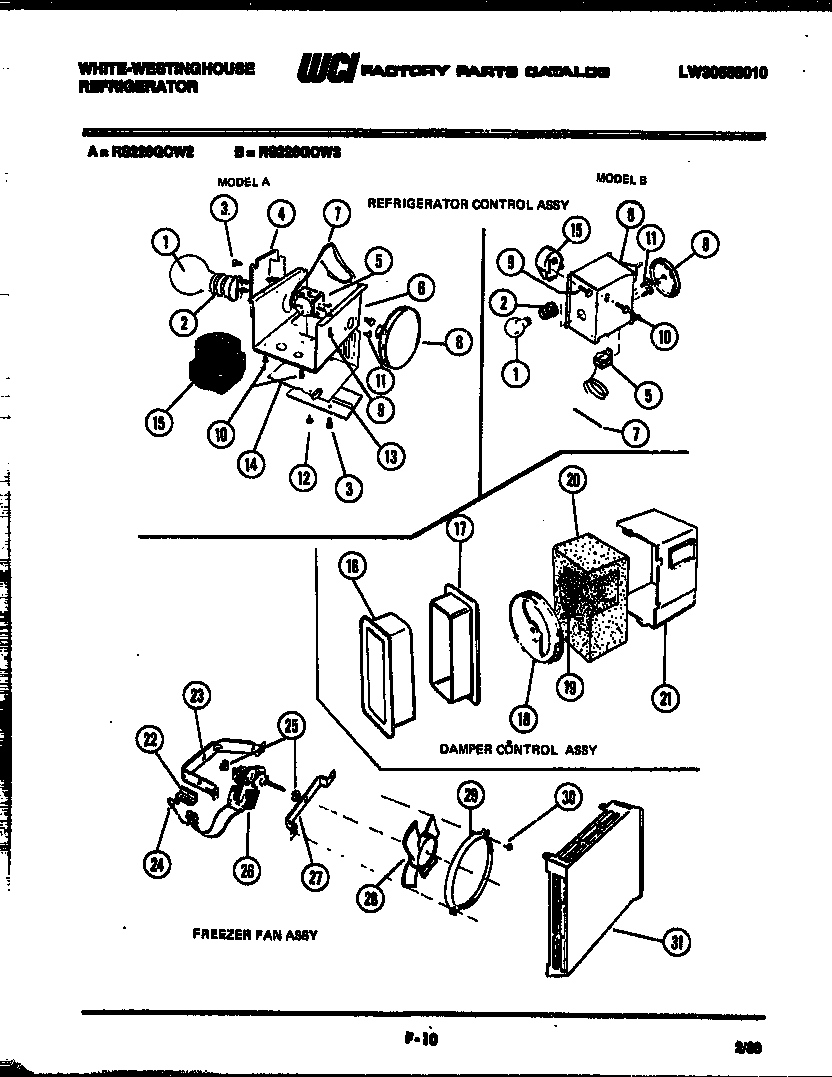

RS226GCD3 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Products

Position	Product
*67708	FOAM TAPE-COVER
*67710	WCI G162703
*67709	WCI 3015098
1	316538904 Frigidaire Oven Lamp Light
2	SOCKET LIGHT
3	WCI G165545
4	WCI G165543
5	WCI G162205-05
6	WCI G164788
6	WCI G189359
6A	WCI G165434
7	TUBE
8	WCI G164906-01
9	5304455852 Frigidaire Refrigerator Screw
10	5304455649 Frigidaire Refrigerator Screw
11	WCI G107080
12	5308000039 Frigidaire Refrigerator Screw
13	WCI G166068
14	COVER CONT. BRACKET
15	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
16	WCI G166802
17A	WCI G167582
17	WCI G166803
18	KNOB, DAMPER CONT.
19	WCI G185373
20	WCI G164575
21	WCI G164523
22	WCI G164571
23	WCI G185303
24	5304455651 Frigidaire Refrigerator Screw
25	G187559 Frigidaire Refrigerator Bushing
26	5300158289 Frigidaire Evaporator Fan Motor
27	WCI G185302
28	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
29	RING, FAN ORIFICE
30	5304455650 Frigidaire Refrigerator Screw
31	WCI G164654-01
